7 Inch Color LCD Screen Door Frame Metal Detector 18 Mutual Over - Lapping Detecting Zones
7 Inch Color LCD Screen Door Frame Metal Detector 18 Mutual Over - Lapping Detecting Zones
Specifications
Brand Name :
Uniqscan
Model Number :
UB700
Certification :
CE.ISO
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500pcs/month
Delivery Time :
5 work days
Packaging Details :
carton box
Power Supply :
AC85V-264V / 47.5-60Hz
Gross weight :
70KG
backup battery (Option) :
4-8 hours
LCD screen :
7 inch
Selling Units :
Single item
Description

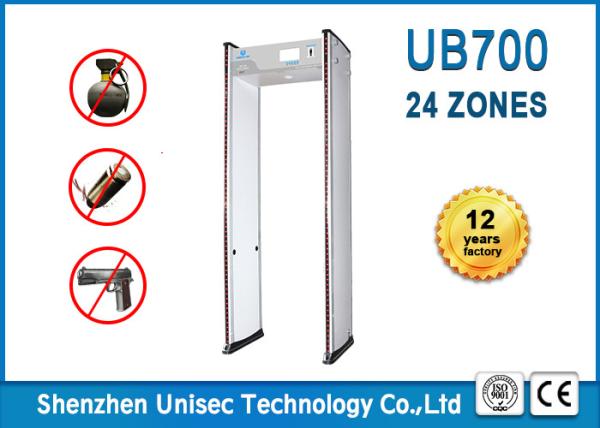

7 inch color LCD screen with high quality UB700 door frame metal detector door

18 zones standard

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2290*560*180mm *1ctn

Package size for control unit: 760*380*260 mm*1ctn

Gross weight: 63KG

Characteristic & Function

  • 18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable
  • 5.7 inch LCD screen
  • Infrared remote control
  • Sound & LED alarm: Both Side LED indicator ,

easily show where the metal is.

  • Automatically count passengers and alarm times
  • Alarm strength indicator on control panel
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
  • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Using high density fireproof material
  • Program Self-diagnostic when power on,no need initial or periodic calibration
  • Modularization design,easy for maintenance and replacement.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • 4-8 hours backup battery (Option)7 Inch Color LCD Screen Door Frame Metal Detector 18 Mutual Over - Lapping Detecting Zones7 Inch Color LCD Screen Door Frame Metal Detector 18 Mutual Over - Lapping Detecting Zones
