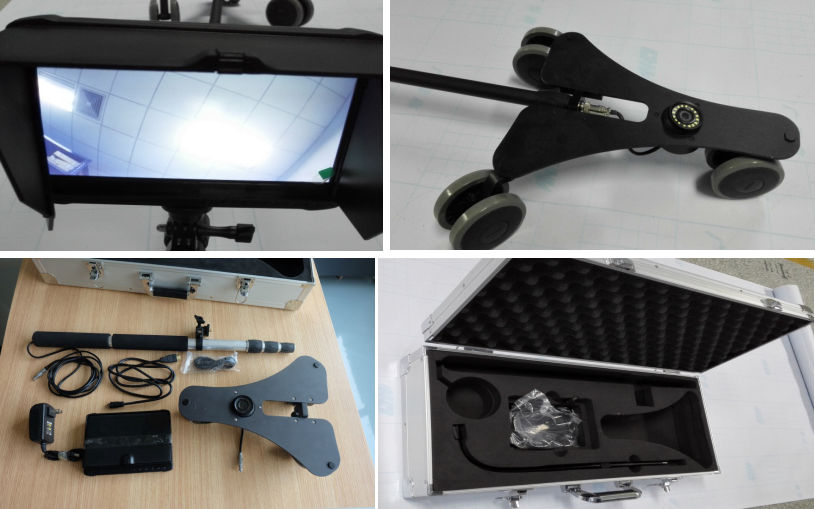

Under Vehicle Inspection Scanner UV260
Under Vehicle Inspection Scanner UV260
Specifications
Brand Name :
Uniqscan
Model Number :
UV200
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
100pcs/week
Packaging Details :
carton or wooden
Optical Element :
1/2.5 CMOS Sensor SONY
Optical Total Pixels :
2.5M ：2000（H）×1121（V）
CMOS Sensor Size :
5.6mm（H）×3.14mm（V）
Sensitivity :
0.2Lux/F1.2
Lens & View angle :
3.6mm F1.2 (H )90 °
Warranty :
2 years
Description

Under Vehicle Inspection Camera UV260

Mini camera for Wheels tray

Optical Element 1/2.5 CMOS Sensor SONY

Optical Total Pixels 2.5M :2000(H)×1121(V)

CMOS Sensor Size 5.6mm(H)×3.14mm(V)

Sensitivity 0.08Lux/F1.2

Lens & View angle 3.6mm F1.2 (H )90 °

HD Video Output Interface FPD-LinkⅢ

Waterproof rate IP68

camera Pole 2m Telescopic Survey Pole

Dimension & Weight 18 x 28mm, 10g

Cable(4 Cores High-Speed Line) Diameter:3.5mm Length:2.7meters

Flexible camera

Optical Element 1/3 CMOS Sensor

Optical Total Pixels 3.5 Mega :2304(H)×1536(V)

CMOS Sensor Size 5.07mm(H)×3.38mm(V)

Sensitivity 0.2Lux/F1.2

Lens & View angle 0.5mm F1.2 90 °

HD Video Output Interface FPD-LinkⅢ

Waterproof rate IP68

Dimension & Weight 18 x 28mm, 10g

Cable(5 Cores High-Speed Line) Diameter:3.5mm Length:3 meters

camera Pole 2m Telescopic Survey Pole

7’ SCREEN DVR

HD Video Output HDMI:1920* 1080；1280*720

Video Storage Pixels(16:9) HDMI:1920* 1080；1280*720

Video Compression Format H.264

Video Storage AVI

HD Digital Video Input Interface FPD-LinkⅢ

Audio Frequency Range 20HZ-20KHz AAC

Audio Compression Format AAC

Photo Format JPG 3.15 Mega :3200(H)×1800(V)

Storage External SD card TF card 1GB-64GB(Optional)

32GB recording time 10-32 hours

Operating System Windows & Mac OS

Port USB 2.0

Language Multiple

Voltage DC :7-24V

USB DC:5V

Current(Monitor mode) 400MA

Current(Video mode) 500MA

AC Adapter DC 12V 1A

Built-in Battery Li-battery 5000Mah

Wireless record time ≥10hours

Dimension: 177mm x120mm x 20mm

Weight 350 g

Under Vehicle Inspection Scanner UV260
