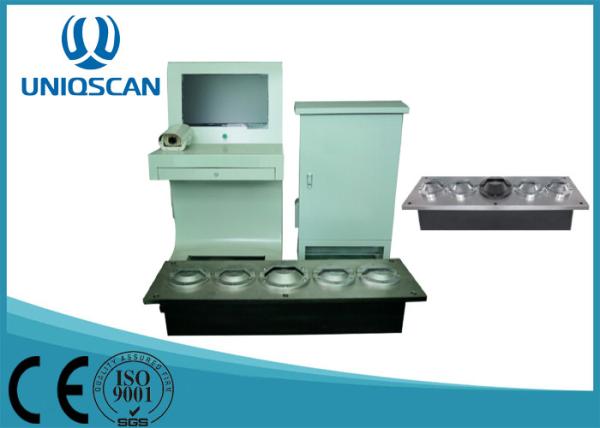

Anti Terrorist Under Vehicle Inspection System For Parking Lot / Mall Entrances
Anti Terrorist Under Vehicle Inspection System For Parking Lot / Mall Entrances
Specifications
Brand Name :
uniqscan
Model Number :
UV300F
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100sets per month
Delivery Time :
3-7 work days after payment
Packaging Details :
wooden case
product name :
Under Vehicle Surveillance System
Camera: Sensor :
line scans CCD
Display resolution: :
1920 * 1080P
Resolution: :
5000*2048 pixels
Working voltage: :
DC24V
Min operate time : :
110us
Operating Temperature: :
-10℃ to 55℃
Storage temperature: :
-40℃ to +75℃
Description

anti-terrist under vehicle inspection system for parking lot , mall entrances

Technical Specification:

Vertical resolution of the image: 2048 pixels
Check the width viewing angle: not less than 4 meters
Speed of vehicle: 30~75km/h
Effective FOV: not less than 170°
Auxiliary light: 100W
Bearing weight: more than 50T
Waterproof grade: IP68 meet the condition of working around the clock
Scanning device weight: 18KG
Scanning device volume: 410mm×370mm×93mm
Communication interface: RS232/RS422
Operating Temperature: -10℃ to 55℃
Storage temperature: -40℃ to +75℃
Operating voltage: 110-240V AC, 50-60HZ

Color under vehicle scanning camera:

Camera: Sensor line scans CCD
Resolution: 5000*2048 pixels
Power Supply 24VDC, 3A
Pixel : 2096 x3
Horizontal Frequency : 9K
Min operate time : 110us
The length of the line array : 29mm
Pixel size : 14um x 14um
Sampling bits wide : 8bit
Dynamic Range : 76db
Sensitivity : 15,21,37V/uJ/cm2(wave
Transmission mode : (Gigabit Ethernet) /100m
Power Dissipation : less 8W,12V
Working Temperature: 0℃ to 60℃

Features:

  • Auto digital line scan camera, with high-resolution and clarity of the image.
  • The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
  • IP68 high protection grade, anti-pressure shock, adapt to any climatic environments.
  • Preparation of inspection processes to meet a variety of on-site needs.
  • Multiple scene image monitoring, recording function.
  • Multi-language user interface design.
  • Support image recognition and RFID technology for vehicle identification.
Our Services:
  • Free training in our factory
  • Accept arrange engineer to your country with additonal cost
  • After-sales service online 18/24 hours
  • Remote control the machine for maintenance diagnosing
  • Free spare parts supply during the warranty
  • Exclusive agent protection and special support for market
  • OEM and ODM service accept
