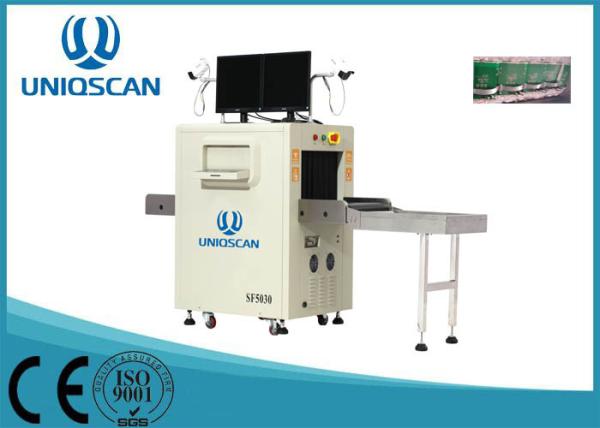

43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
Specifications
Brand Name :
Uniqscan
Model Number :
SF5030C
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
in one week
Packaging Details :
Wooden box
Product name :
X Ray Security Screening System
Conveyor Speed :
0.22m/s
Conveyor Max Load :
100 kg
Single inspection dosage :
< 1.32μGy
Wire Resolution :
40AWG
Warranty :
2 years
Orientation :
Upward
Description

43mm Steel Penetration / Dual energy Security baggage scanner SF5030C

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 120 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG (0.0787mm metal line)

Steel Penetration: 43mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~1.2mA(adjustable)

Anode Voltage:100~160KV(adjustable)

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity: 20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor: L-shaped array detector, 24bit,Dual energy

X-RAY Sensor: L-shaped array detector, 24bit,Dual energy

Applications:

  • Airports,
  • Transport terminals,
  • Buildings,
  • Factories (to find needle in clothing, shoes, bags),
  • Courthouses,
  • Embassies,
  • Military installations,
  • Prisons,
  • Hotels,
  • Schools ,
  • Convention centers,
  • Security checkpoints,
  • Special events location

Competitive Advantage:

  • Integrated, cost Effective, One-Key Switch off
  • Fit for Middle size Baggage and Parcel Security Inspection.
  • Increased detection capability
  • Friendly interface for ease-of-use
  • Reliable performance and uncompromising value

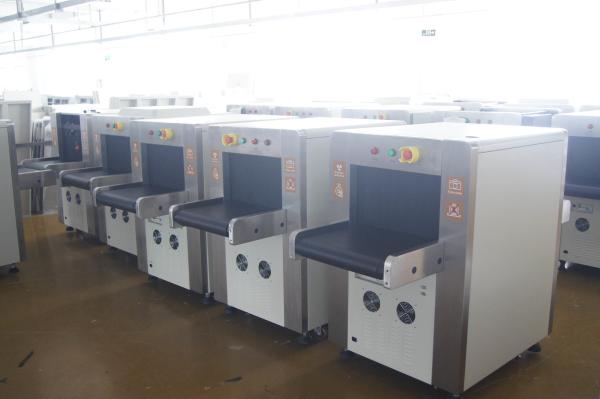

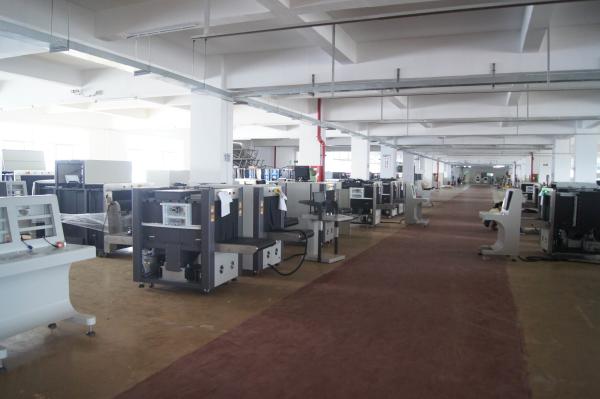

Fatory Pictures:

43mm Steel Penetration Security Baggage Scanner SF5030C Dual Energy Airport X Ray Machine
