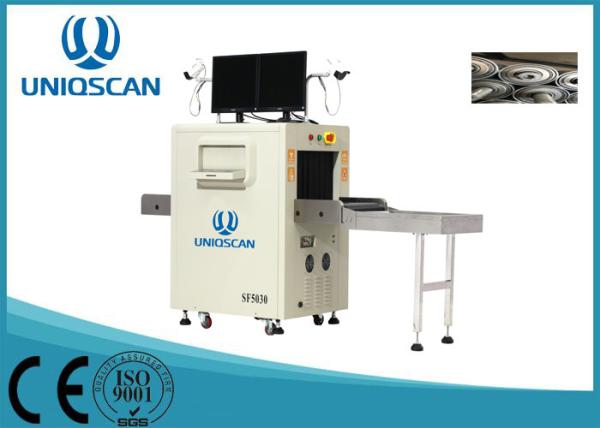

High Resolution Dual Energy X Ray Luggage Scanner SF5030C With 160KV Anode Voltage
High Resolution Dual Energy X Ray Luggage Scanner SF5030C With 160KV Anode Voltage
Specifications
Brand Name :
Uniqscan
Model Number :
SF5030C
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
in one week
Packaging Details :
Wooden box
product name :
airport security scanners
Conveyor Speed :
0.22m/s
Conveyor Max Load :
100 kg
Single inspection dosage :
< 1.32μGy
Wire Resolution :
40AWG
Warranty :
2 years
Tunnel Size :
500 (W) ×300 (H) mm
Description

160KV Anode Voltage / Dual energy x ray luggage scanner SF5030C

General specification:

Tunnel Size 500(W)*300(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 150kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 40-43mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)

X-Ray Generator

  1. Anode Voltage...............................80 KV(adjustable)
  2. Beam Direction..............................From bottom
  3. Cooling & Running Cycle...............Sealed oil cooling & 100％
  4. X-Ray Sensor.................................Single-energy L photoelectric diode array detector

Installation Parameters

Size .............................................1450 mm(L)x 835 mm ( W)x 1200 mm(H)

Weight .........................................375 KG

Working Temperature / Humidity...............0℃～+45℃／20%～95% (non-condensing)

Storage Temperature / Humidity................-40℃～+60℃／20%～95% (non-condensing)

Power Supply.............................................AC 220 V(+10%~-15%) 50±3(Hz)

Power Consumption...................................About 0.37(KVA)

Fatory Pictures:

High Resolution Dual Energy X Ray Luggage Scanner SF5030C With 160KV Anode Voltage
