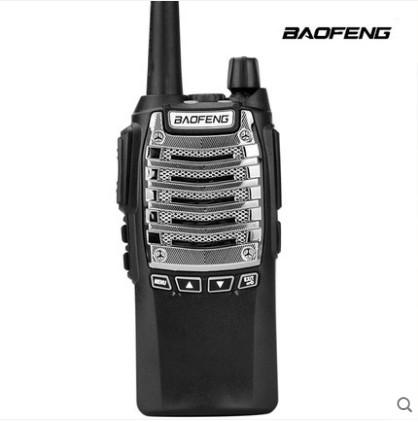

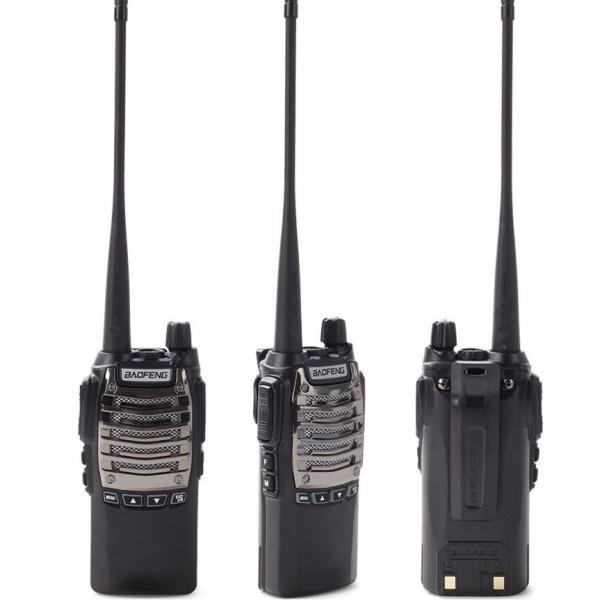

Long Range Two Way UHF Baofeng Handheld Ham Radio
Long Range Two Way UHF Baofeng Handheld Ham Radio
Long Range Two Way UHF Baofeng Handheld Ham Radio
Long Range Two Way UHF Baofeng Handheld Ham Radio
Specifications
Brand Name :
baofeng
Model Number :
BF-8D
Certification :
CE FCC Rohs Certificate
Place of Origin :
China
MOQ :
10pcs
Price :
USD12.00 /piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs / year
Delivery Time :
3-5 days
Packaging Details :
carton box
Type :
Handheld
Dimensions :
60 x 38 x 120 mm
Storage channel :
16 Channels
Talk range :
5-8km
Frequency range :
400-520MHz
Output power :
5W
Color :
Black
Battery capacity :
1800mAh
Warranty :
12 Months
Operating voltage :
DC7.4V
Product name :
long range walkie talkie baofeng BF-8D
Description

BAOFENG BF-8D Wide Frequency Range Hot Selling best handheld ham radio

Main Features


-Two-way handheld transceiver.
-DTMF encoded.
-2800mAh Lithium-ion battery with high capacity.
-Commercial FM radio receiver (65MHz-108MHz).
-Alarm function.
-Up to 128 memory channels.
-Dual PTT Key
-CTCSS/ DCS
-DTMF Code
-LED Flashlight
-Dual PTT Key
-Dual Watch
-Emergency Alarm
-PC Programming
-Cable replication
-Call Tone 1750Hz
-High/low voltage warning
-Busy channel lockout
-Scan
-Dual standby channels Receive prompt function


Specifications


Frequency Range 65-108MHz(FM Receive only)/TX & RX:136-174MHZ and 400-480HZ
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain Dual Band antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Antenna SMA -Female
Earpiece / mic type Kenwood Plug type

Transmitter
Output power 4W/1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(W) /<2.5kHz(N)
Intermediation distortion <10%
Adjacent Ch. power ≤-65dB(W) / ≤-60dB(N)
Pre-emphasis 6dB
Current ≤1.6A(5W)

Receiver
RF Sensitivity -122dbm(12db SINAD)
Audio power ≥0.5W
Audio Distortion ≤10%
Intermediation ≤-65dB(Wide)/≤-60dB(Narrow)
Selectivity ≤-65dB(Wide)/≤-60dB(Narrow)
Spurious Rejection ≤-65dB
Blocking ≥85dBuv/m

Long Range Two Way UHF Baofeng Handheld Ham Radio


Standard Package Content
1 x Walkie talkie
1 x Li-Ion battery
1 x Antenna
1 x Belt Clip
1 x User's Manual
1 x Charger
