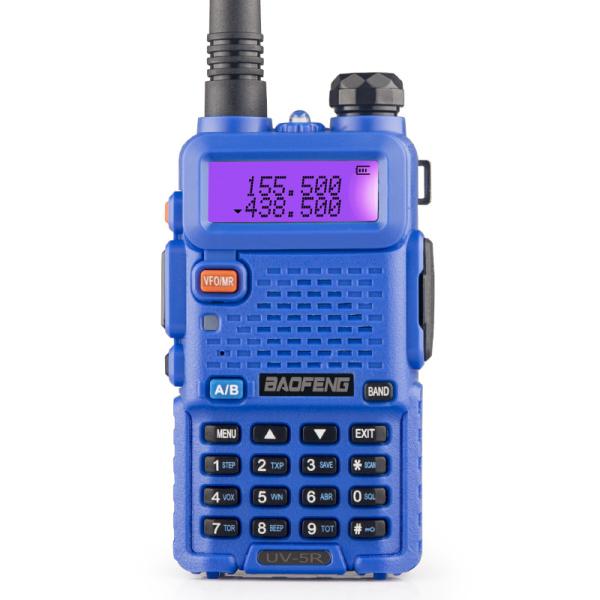

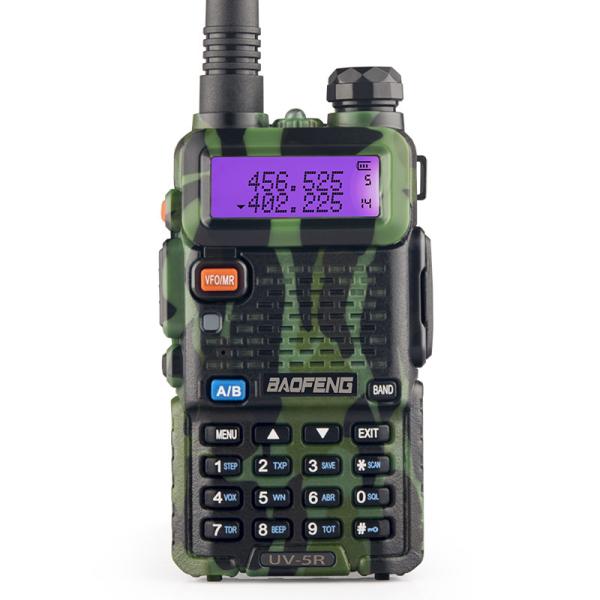

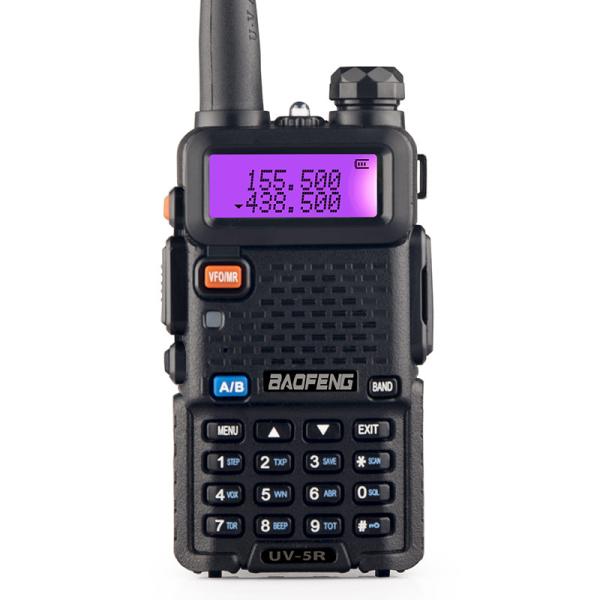

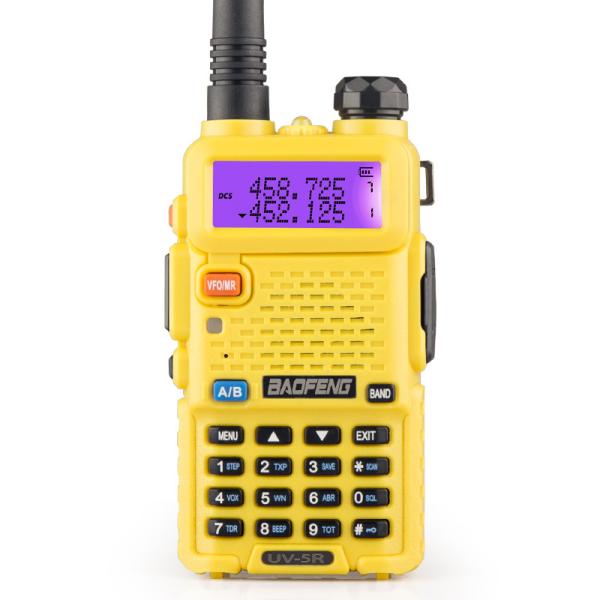

Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
Specifications
Brand Name :
baofeng
Model Number :
5R
Certification :
CE FCC Rohs Certificate
Place of Origin :
China
MOQ :
Negotiable
Price :
USD15.3 /piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs / year
Delivery Time :
3-8 days
Packaging Details :
carton box
Type: :
Handheld
Dimensions: :
110mm x 58mmx 32 mm
Frequency Range: :
136-174/400-520MHZ, 65-108Mhz(only for FM)
Storage Channel: :
128
Talk Range: :
3-10km
Operated Voltage: :
DC7.4V
Mode of operation: :
Simplex or semi-duplex
Output power: :
5W
Description

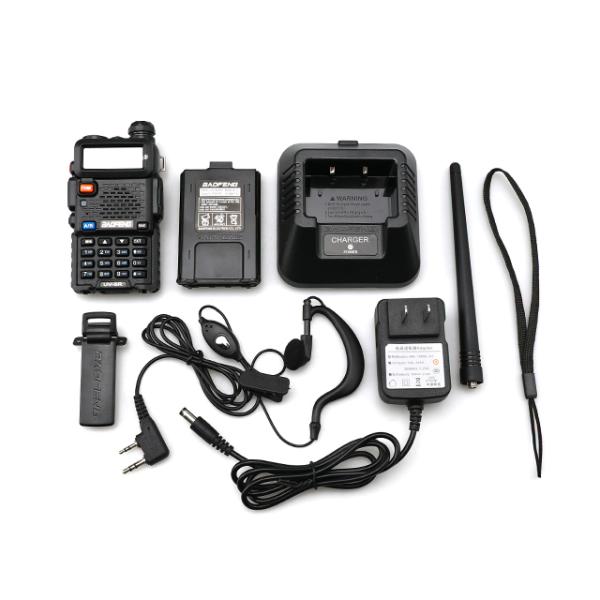

Baofeng Walkie Talkie UV-5R Dual Band CB Radio Transceiver New Version 520Mhz Two Way Radio with FREE PTT EARPHONE

Product Description :

Features/Functions

Dual-band handheld transceiver with display function

menu on the display "LED"

Commercial FM radio receiver (65MHz-108MHz)
Built-in LED flashlight DTMF encoded
Built-in RX CTCSS/DCS scan Function VOX
Alarm function Broadband/narrowband selectable
Function beep on the keyboard Dual Watch/dual Reception
Crossband reception/transmission Function OFFSET
Tone end of transmission Battery saving function SAVE
Programmable by PC Built-in key lock
GENERAL
Frequency range 65-108Mhz(only for FM)
VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Supply voltage Rechargeable Lithium-Ion mAh7.4V/1800
Mode of operation Simplex or semi-duplex
Duty cycle 03/03/54 min.(Rx/Tx/Standby)
Dimensions 58mm*110mm*32mm
Weight 130g(approximate)
TRANSMITTER
RF power 4W/1W
Type of modulation FM
Spurious emissions <-60dB
RECEIVER
Receiver sensitivity 0.2μV(at 12dB SINAD)
Intermodulation 60dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB

Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver

Walkie Talkie UV-5R Dual Band 520Mhz CB Radio Transceiver
