Specifications
Place of Origin :
Guangdong, China
Brand Name :
Goldantell/OEM
Model Number :
GAT-525 series
MOQ :
1
Price :
$1,826-7,522
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
2,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
7 working days after received your payment
Passage width :
550mm-600mm
Pass speed :
30-40 persons/min
Power supply :
220, 110 V(AC)
Max power :
60w
Frequency :
50~60 Hz
Working temperature :
-15~+75 °C
Housing material :
1.5-2mm, 304# stainless steel
Drive motor :
DC brushless motor
IP protection :
IP54
Relative humidity :
≤95% coagulation free
MCBF :
2,500,000 cycle
Dimension GAT-511 :
1500 (L) * 1350 (W) * 2300 (H) mm
Dimension GAT-510 :
2400 (L) * 1250 (W) * 2300 (H) mm
Dimension GAT-525 :
4100 (L) * 1500 (W) * 2300 (H) mm
Input signal :
DC12V/dry/contact/RS485/RS232/Remote
Description

Full height prestige turnstile double passage security mechanical automatic entrance gate for door access

Full Height Turnstile 550-600mm Passage Width 30-40 Persons/Min

Specification

Tech parameter for full height turnstile

Power consumption

AC220V, 50Hz/AC110V, 60Hz (optional)

Housing material

1.5-2mm, 304# stainless steel, corrosion resistant

Drive motor

DC brushless motor

Channel width

500--600mm

Pass speed

30-40 persons/min

IP protection

IP54

Input signal optional

DC12V/dry/contact/RS485/RS232/Remote

railing-off against power off

Yes

Working environment temperature

minors -15°C to 75 °C

Working environments

indoor, outdoor

Relative humidity

≤95% coagulation free

MCBF

2,500,000 cycle

Dimension options for popular full height turnstile

Lane No' Turnstile model Dimension/size
1 GAT-511 1500 (L) * 1350 (W) * 2300 (H) mm
2 GAT-510 2400 (L) * 1250 (W) * 2300 (H) mm
3 GAT-525 4100 (L) * 1500 (W) * 2300 (H) mm

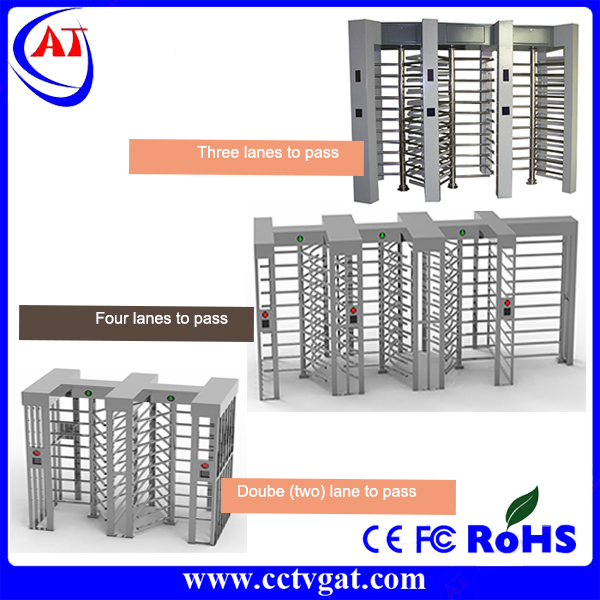

More Size can be custo-made as per your requirement,as shown below

Full Height Turnstile 550-600mm Passage Width 30-40 Persons/Min

Functions & Features

1. Anti- rushing function gate signal is not received, the channel automatically lock brake stick.

2. Power rear channel automatically unlock, free rotation, to meet the fire safety requirements, channel lock automatically after power off.
3. LED indicator light.
4. Can be used with access control systems, consumer systems, electronic ticket system, biometric systems, static tester and other equipment of convergence.
5. Unique two-way anti-reverse function.
6. Through the control board's built-in small press plate, programmable device's operating status.
7. With automatic reset function, gate, after a specified period of time insiders did not pass, the system will automatically cancel the access rights of pedestrians, the reset time is 1S ~ 60S Adjustable (system default time is 10S).
8. Can be unidirectional or bidirectional control of personnel access.
9. Can be directly through the management computer to realize remote control and management.
10. Box house can lengthen, can make custom design.
11. Normally open or closed can be adjust to meet the requirements of the different place.

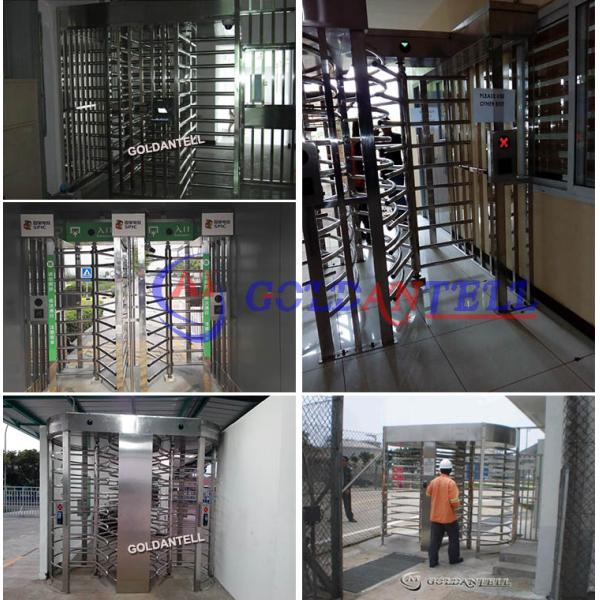

Project Images

Full Height Turnstile 550-600mm Passage Width 30-40 Persons/Min

Company Information

Our Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience.

Our main products include intelligent turnstiles, parking barrier, RFID card, sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.

Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

Full Height Turnstile 550-600mm Passage Width 30-40 Persons/Min

Our certifications

Full Height Turnstile 550-600mm Passage Width 30-40 Persons/Min

Our customers

We have sold turnstiles to more than 50 countries ,like Brazil, Chile, Pure, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, German, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on.

We like to show some of our Customers as below:

Full Height Turnstile 550-600mm Passage Width 30-40 Persons/Min

FAQ

1-Can you install RFID card reader on the turnstile?

Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd system,etc.

2-How about the guarantee and after sale service?

We have 12 month quality guarantee, We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language

3-How long is the leading time?

For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer

4-How about the payment terms?

TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.

5-How do you send the product to me,how long?

For sample,normaly send by air or express,about 3-5 days

For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.

6-What is the package of the turnstile?

Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:crate package and closed wooden package.

7-Can you do OEM service?

We offer below OEM services:

1)we can make custom design tursntile,or you tell us your requirements,we can make a design for you.

2)Can print your logo on turnstiles, can customize the retail box packing and other things.

Trade Term:

1. This offer is valid with 30 days.

2. Delivery time: Within 7 days after receive the payment.

3. Item of payment: T/T, LC, Western Union, Escrow, PayPal total payment before delivery.

4. Carton box + wooden case/crate.

Delivery detail:

1. When ship by sea, it normally takes 15-60 days depend on different countries;

2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door, it normally takes 3~ 5 days to arrive;

3. We can also help you ship by air cargo, it takes about 2-7 days to arrive;

No matter what delivery way, depending on your actual requirements.

Our services:

1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.

2. We own well-trained and passional sales & after- sale services who can speak fluent English language.

3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.

4. We have very experienced engineers, can help you better use turnstiles.
