8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
Specifications
Model Number :
GAT-ESD305
Product Name :
Esd Test Equipment
Payment Terms :
T/T,western Union,LC,Paypal
Net weight :
70KG/pc
Price :
negotiation
Application :
Indoor&outdoor
Supply Ability :
2,000pcs per month
Gross weight :
65KG/pc
Certification :
CE/ROHS/FCC/IS9001
Material :
stainless steel
MOQ :
1pc
Delivery Time :
7-9 working days after received your payment
Package size :
1310*410*1110mm
Communication port :
RS485 ,TCP/IP
Place of Origin :
Guangdong,China
Size Of product :
1200*300*1000mm
Packaging Details :
Packed in carton firstly,and then reinforced with export wooden case for outer packing
Brand Name :
Goldantell
Compatible :
Tripod Turnstile Gate,Flap Turnstile Gate,Swing Turnstile Gate
Description

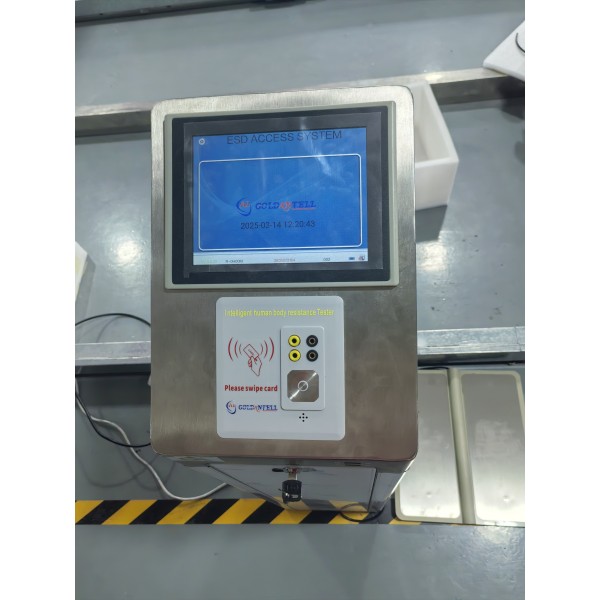

8 Inch Screen ESD Tester with Wrist Strap & Footwear Anti-static Testing
Professional ESD testing equipment designed for laboratories and manufacturing facilities, featuring comprehensive anti-static testing capabilities for personnel safety and product protection.
Technical Specifications
Parameter Specification
Instrument Dimensions 8 inch LCD monitor with built-in tablet PC displaying user information including photo, name, card ID, department, and entry time
Pedal Size 400mm (W) * 420mm (L) * 20mm (H)
Operating Voltage Input AC220V, Output DC12V
Working Hours Unlimited continuous operation
Environmental Conditions Humidity: 0%–90%, Temperature: 5°C–40°C
Data Storage Automatic record storage for ESD test data (except client mode), capacity for 100,000+ records
Test Range & Accuracy Left shoe: 0.01–1000MΩ (±5%) | Right shoe: 0.01–1000MΩ (±5%) | Wrist-strap: 0.1–35MΩ (±5%)
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
Key Features

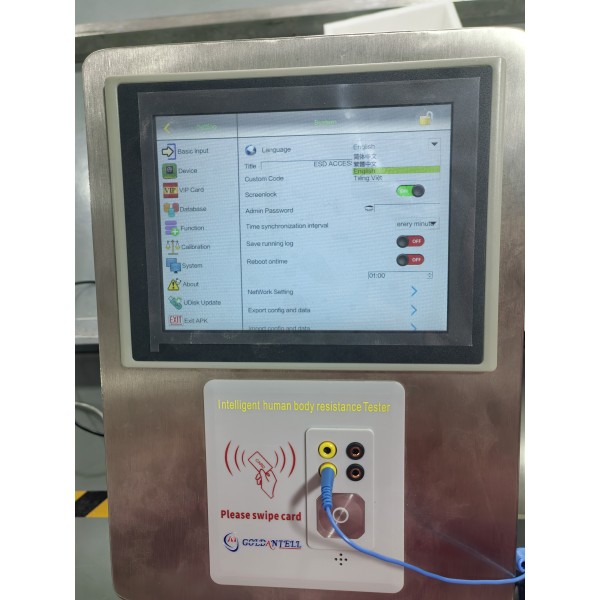

This ESD tester supports online data saving, signal output, 8-inch display monitor, includes related software, testing functionality, voice prompts (optional), and employee card access control integration.
  • Rapid testing capability with simultaneous testing of three independent devices (left shoe, right shoe, wrist strap)
  • Compatible with SQL Server 2000/2008 - run access control management software on any company computer
  • TCP/IP communication technology supports connection of up to 255 testing devices for real-time monitoring of anti-static compliance
ESD Tester Configuration Types

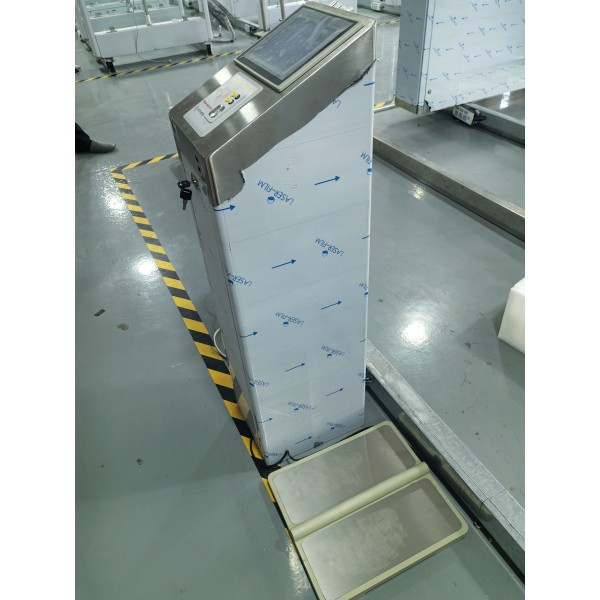

Type 1 - Vertical Standalone Unit
Operates independently without requiring installation on turnstile gates.
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory 8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
Type 2 - Turnstile Gate Integration
Designed for installation directly on turnstile gate systems.
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
Industry Applications
  • Electronics Manufacturing: Semiconductor/chip production, electronics assembly, cleanrooms
  • Healthcare: Medical device manufacturing, operating rooms, laboratories
  • Oil & Gas/Chemicals: Flammable environments including storage and maintenance areas
  • Precision Labs: Microelectronics R&D, optical labs, reliability testing facilities
  • Industrial Logistics: Printing/packaging operations, warehouse management
  • Access Control: Integrated gate systems with real-time monitoring capabilities
Core Features & Advantages
Precision Measurement
Measures charge and polarity with ±10% error tolerance, supports multi-point testing for shoes and wrist straps
Real-Time Protection
Alarm system for excessive static electricity, integrates with grounding systems and ionizers
Flexible Configuration
Customizable thresholds (e.g., 750KΩ–100MΩ), supports standalone or networked operation
Advanced Data Management
Comprehensive logging and reporting for audits, remote monitoring via TCP/IP connectivity
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
Packaging
Protected with inner carton packaging and outer crate or closed wooden packaging for secure transportation.
8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
