Specifications
Model Number :
GAT-esd305
Dimension :
1200 * 280 * 1000mm
Price :
negotiation
Usage :
Subway station mall
Certification :
CE/ROHS/FCC/IS9001
Power supply :
AC100V-240V
MOQ :
1pcs
Delivery Time :
7 working days after received your payment
Driving motor :
24V Brushless DC Motor
Payment Terms :
T/T,western Union,LC,Paypal
Material :
Stainless Steel 304/316
Supply Ability :
1,000pcs per month
Lane width :
60,90,110cm or others
Brand Name :
Goldantell
Application :
Office\School\Airport\Subway\Outdoor
Packaging Details :
Packed in carton firstly,and then reinforced with export wooden case for outer packing
Place of Origin :
Guangdong,China
Passing speed :
40 persons/min
Description

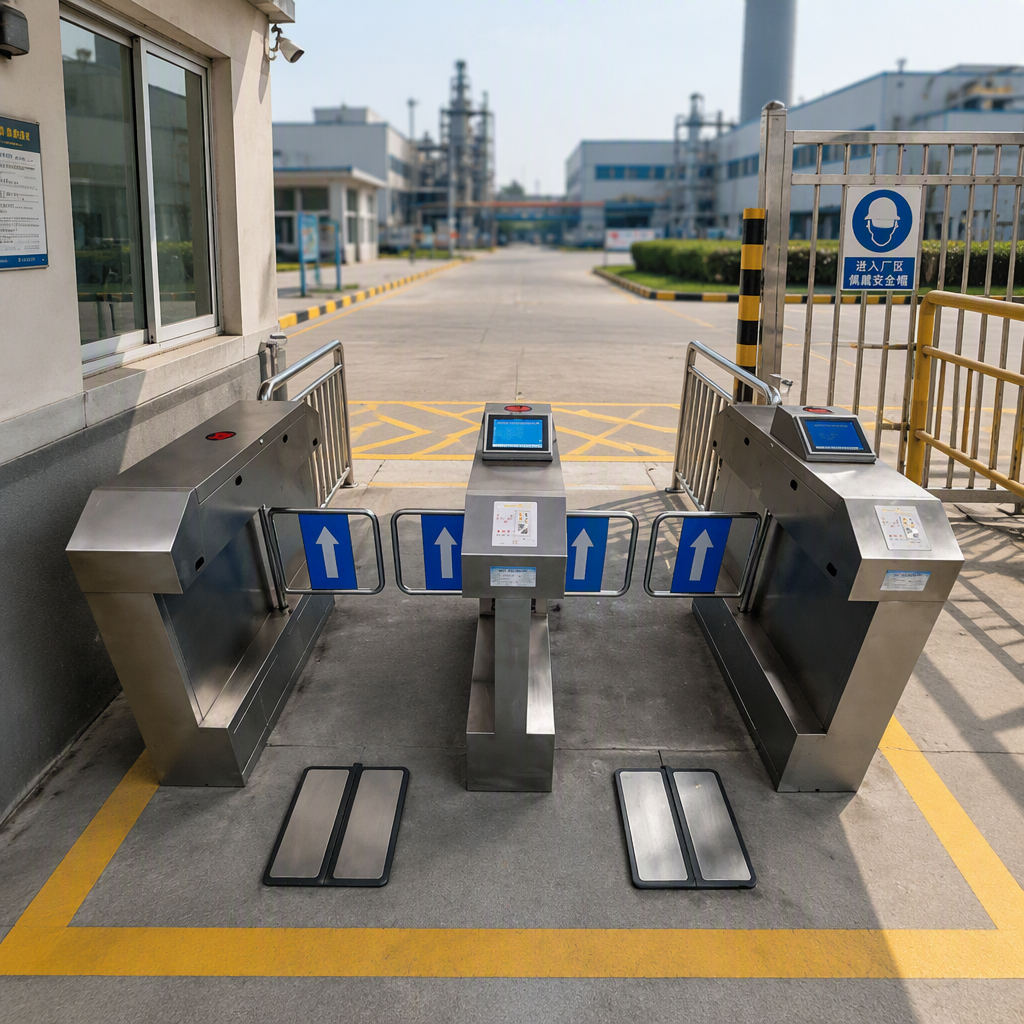

Security Swing Barrier Turnstile with ESD Tester System Stainless Steel ESD Wristband Tester
Double Channel Stainless Steel ESD Wristband Test
Goldantell intelligent Series turnstile gates feature excellent design and superior performance, manufactured using innovative technology and high-quality materials with unique security features for commercial and industrial applications.
Key Features
  • Anti-pinch core protection system with double channel full height turnstile
  • DC motor drive for stable, reliable operation with low failure rate
  • Ultra bright LED directional indicators for clear traffic guidance
  • Compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
  • Custom OEM/ODM services available for size, shape, and specifications
  • Constructed from 304 stainless steel with IP54 waterproof rating, anti-rust, and durable design
Security Swing Barrier Turnstile with ESD Tester System Stainless Steel ESD Wristband Tester
Swing Barrier Turnstile with ESD Tester System Technical Specifications
Parameter Specification
Cabinet dimension 1200 (L) x 280 (W) x 1000 (H) mm
Cabinet material 304 stainless steel (316 ss can be custom-made)
Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/closing time 0.2s
Arm material Thickness 10mm Acrylic, tempered glass or steel (custom)
Access mode Single in/out or Bidirectional
Passthrough Width 900mm (or custom)
Mechanism DC Brushed motor+Clutch (or Servo motor)
Communication interface RS485, TCP/IP
Infrared sensor 6~10 pairs
Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
Reset time after break down Default 10s (adjustable)
MCBF 5,000,000 Cycles
Working humidity 30%~95%
Swing Barrier Turnstile with ESD Tester System Features
  • Tests loop resistance between anti-static shoes and personnel to ensure safe electrostatic levels
  • Prevents entry to electrostatic control areas if test fails, protecting sensitive electronics
  • Requires replacement of electrostatic protection equipment for failed tests before access is granted
Swing Barrier Turnstile with ESD Tester System Features
  • Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Bi-directional or single way operation options
  • Auto-open when power is off to meet fire protection requirements
  • Anti-Tail gaiting feature prevents unauthorized entry
  • Wings open automatically during power interruption
  • Fast opening and closing time
  • Built-in mechanical lock prevents forced opening
  • Multiple pairs of IR sensors
Operation Applications
Lab, Factory, etc
Frequently Asked Questions
Can I have a system that only supports ESD test without software?
Yes, we offer multiple options. Our catalog can help you make the right choice.
What is the language version available for the software system and displayed on the machine?
English and Chinese versions are available.
Can I have a software manual or installation instructions?
Yes, English version manuals are available.
Can I customize it?
Yes, we offer OEM/ODM services with extensive experience serving government and commercial clients.
What are your terms of payment?
100% payment before shipment. We provide photos/videos of products and packaging before final payment.
What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU options available.
Our Services
  • Friendly professional customer service available 16 hours/day
  • 10+ years ODM/OEM experience with custom design, logo, and packaging
  • Complete system solutions including software management to save time and cost
  • Special repair service: No product return needed - video diagnosis with free spare parts for 1 year
Packing Details
  • Export packaging: Wooden case with pearl wool and plastic wrap (export exempted from inspection)
  • Domestic packaging: Bubble wrap with carton or pearl wool with wooden packaging
  • Professional, environmentally friendly, and efficient packaging services
