CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
Specifications
Swing arm angle :
180 degrees
Payment Terms :
T/T,Western Union,L/C
Product name :
Supermarket Swing Gate
Brand Name :
Goldantell
Service life :
more than 10 years
Packaging Details :
Packed in carton firstly,and then reinforced with export wooden case for outer packing
Material :
304 stainless steel
Model Number :
GAT-614
Working voltage :
AC220±10%V 50±10%HZ
Sensing method :
Automatic open IR Sensor
MOQ :
1pc
Delivery Time :
5-7 working days after received your payment
Passage width :
600-1100mm adjustable according your need
Price :
negotiation
Operation speed :
1 second opening/closing time
Supply Ability :
2,000pcs per month
Gross weight :
45KG/set
Certification :
CE/ROHS/FCC/IS9001
Product size :
diameter: main pole: Φ168mm height: 1000mm
Place of Origin :
Guangdong,China
Description
CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
SUS304 barrier gate specifically designed for supermarket and shopping trolley access with CE certification. Features automatic opening for accessible passage and one-way operation control.
Key Features
  • Automatic Opening: Instantly opens for wheelchair and shopping trolley access
  • One-Way Operation: Ensures smooth flow in one direction
  • Quick Response: Opens within 0.6 seconds for efficient passage
  • CE Certified: Meets European safety standards
  • Brushless Motor: Reliable and energy-efficient design
Technical Specifications
Control Methods Push button, RFID card, fingerprint recognition, IR sensor
Working Voltage AC220±10%V 50±10%HZ
Dimensions Diameter: Φ168mm, Height: 1000mm
Passage Width 450-850mm
Swing Arm Angle 180 degrees
Direction Single or bi-directional (optional)
Operation Speed 1 second opening/closing time
Capacity 40 persons/min (open), 25-30 persons/min (closed)
Durability 3 million cycle lifespan
Operating Environment Indoor/outdoor (with cover) -10℃～70℃
Motor DC24V brush motor
CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
Advanced Features
  • Adjustable pillar height and telescopic arm length with material options
  • Meets all fire safety requirements
  • Compatibility with access control, biometric, and ESD systems
  • Infrared reset and anti-pinch functions with sound/light alarms
  • Configurable as normally open or closed for different environments
  • Bidirectional operation with infrared sensing for entry/exit control
  • Programmable via main control board buttons
  • Mechanical and infrared anti-pinch protection with automatic reset
  • Automatic locking for unauthorized access attempts
  • Collision avoidance protection for swing arms
  • Adjustable automatic reset timing (1-60 seconds)
  • Remote management capability via computer
Applications
Public Spaces: Supermarkets & Retail Stores, Transportation Hubs (Subway, Airports, Stations), Cultural Venues (Libraries, Museums, Exhibition Halls), Recreational Areas (Parks, Stadiums), Residential & Office Buildings
Commercial & Institutional: Hotels & Hospitality, Factories & Industrial Facilities, Financial Institutions (Banks), Healthcare Facilities (Hospitals), Educational Institutions, Correctional Facilities

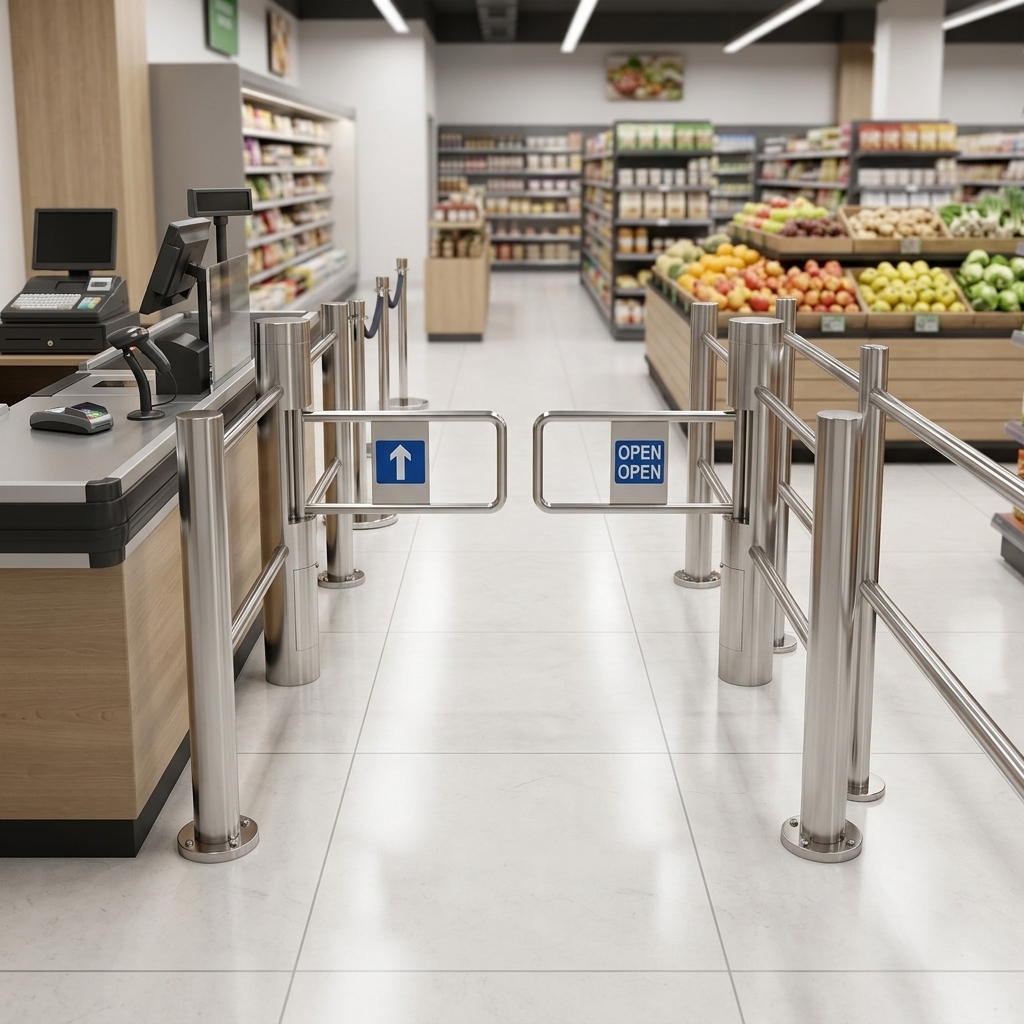

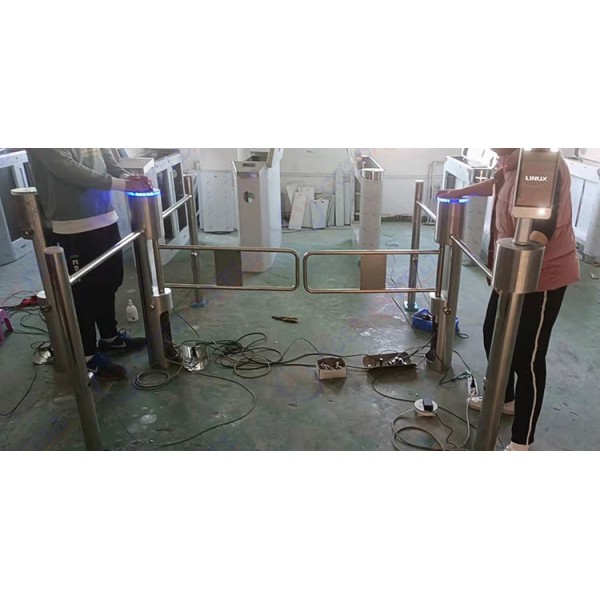

Installation Examples
CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate CE Certificate Entrance And Exit Control 304SS Automatic Supermarket Swing Gate
Customization Options
  • Custom appearance design available
  • Stainless steel thickness options: 1.0-2.0mm
  • Material grades: 304 (standard) or 316 stainless steel (customized)
  • Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
