Specifications
Dimension :
1400 * 65 * 1000mm
Usage :
Subway station mall
Lane width :
60,90,110cm or others
Material :
Stainless Steel 304/316
Brand Name :
Goldantell
Model Number :
GAT-644
Certification :
CE/ROHS/FCC/IS9001
Place of Origin :
Guangdong,China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,western Union,LC,Paypal
Supply Ability :
1,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with export wooden case for outer packing
Driving motor :
24V Brushless DC Motor
Opening/closing time :
0.2s
Passing speed :
45persons/min
Communication interface :
RS485, TCP/IP
Power supply :
AC100V-240V
Application :
Office\School\Airport\Subway\Outdoor
Description
NFC Reader Swing Barrier Turnstile Gate
Product Overview

Advanced NFC reader security solution featuring a slim swing turnstile gate, custom designed for bank offices, metro stations, supermarkets, and various commercial applications.

Key Features
  • Intelligent turnstile gate series with excellent design and superior performance
  • DC motor drive system for stable, reliable operation with low failure rate
  • Ultra-bright LED directional indicators for clear traffic guidance
  • Compatible with face recognition, thermal imaging, RFID, fingerprint, QR/barcode, and ESD access control systems
  • Custom OEM/ODM services available for size, shape, and specifications
  • Constructed from 304 stainless steel with IP54 waterproof rating
  • Elegant, anti-rust design for long-term durability
Technical Specifications
Specification Details
Cabinet Dimension 1400 (L) x 65 (W) x 1000 (H) mm
Cabinet Material 304 stainless steel (316 ss can be custom-made)
Switching Power Supply AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/Closing Time 0.2s
Arm Material 10mm Acrylic, tempered glass, or steel (customizable)
Access Mode Single in/out or Bidirectional
Passthrough Width 900mm (customizable)
Mechanism DC Brushed motor + Clutch (or Servo motor)
Communication Interface RS485, TCP/IP
Infrared Sensor 6~10 pairs
Optimal Flow Rate 40 persons/min (open), 35 persons/min (closed)
Reset Time After Breakdown Default 10s (adjustable)
MCBF 5,000,000 Cycles
Working Humidity 30%~95%
Security Features
  • Multi-alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Bi-directional or single way operation options
  • Automatic gate opening during power failure for fire safety compliance
  • Anti-tailgating feature to prevent unauthorized entry
  • Fast opening and closing response times
  • Built-in mechanical lock to prevent forced opening
  • Multiple pairs of infrared sensors for enhanced security
Application Areas
  • Banks
  • Fitness Gyms
  • Factories
  • Hotels
  • Movie Theaters
  • Office Buildings
Product Images

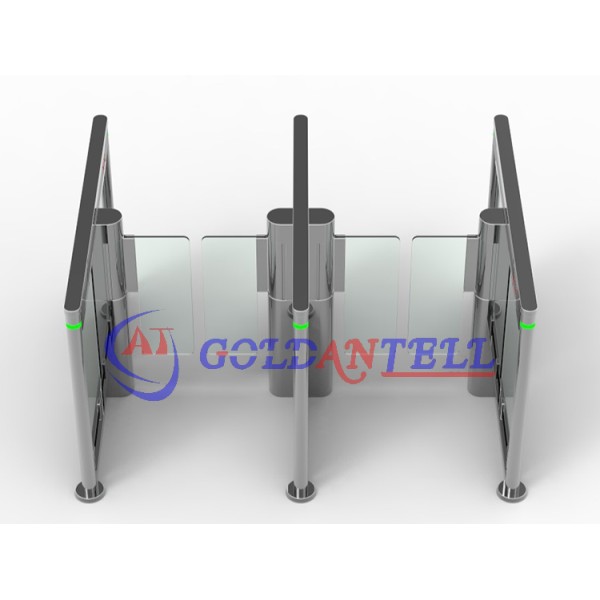

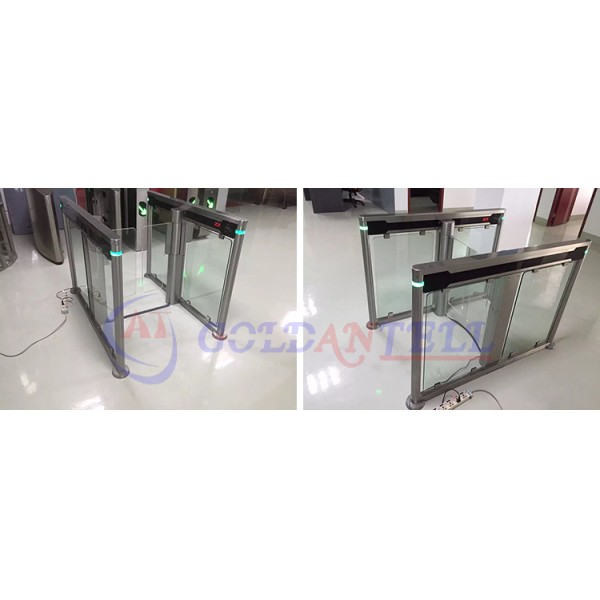

NFC Reader Swing Barrier Turnstile Bank Office Metro Supermarket Swing Gate NFC Reader Swing Barrier Turnstile Bank Office Metro Supermarket Swing Gate
Packaging Details
  • Export products: Wooden case packaging with pearl wool and plastic wrap
  • Domestic: Bubble wrap with carton or pearl wool with wooden packaging
  • Professional, environmentally friendly, and efficient packaging services
Frequently Asked Questions
Can we visit your factory?

Yes. Any time will be welcome.

How about the payment method?

If order amount ≤5000USD, 100% T/T in advance. If order amount >5000USD, 50% T/T in advance and 50% T/T before shipment (negotiable).

Which payment terms are you accept?

T/T, Western Union, LC, PayPal, etc.

What is your MOQ?

Any quantity is acceptable.

How long is your warranty period?

One-year guarantee & Lifetime technology support.

Our Services
  • Friendly and professional customer service available 16 hours daily
  • Over 10 years of ODM/OEM experience with custom product design, logos, and packaging
  • Complete system software management solutions to save time and costs
  • Special repair service: Video-based troubleshooting with free spare parts replacement within warranty period
