Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Ku Band 2D Low Altitude Radar with AESA System and 5 km UAV Detection Range
Specifications
Price :
Negotiable
Operating Frequency Band :
Ku Band
Supply Ability :
50 set/3 momth
Relative Velocity Range :
1m/s-72m/s
Model Number :
LT-Ku09
Brand Name :
Radartone
Payment Terms :
T/T
Target Update Rate :
Machine Scan TWS: 6s, Phase Scan TWS: 2s, TAS: 0.2s
Delivery Time :
1.5 month
Angle Range :
Azimuth Scan ± 45°, Elevation Scan 0 °~40°, Azimuth Mechanical Scan 360 °
Target Capacity :
≥ 128 Tracks
Place of Origin :
China
MOQ :
1set
Detection Range :
5km (RCS: 0.01m2)
Description

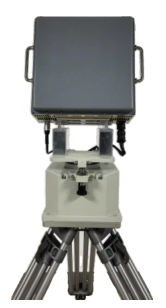

LT-Ku09 Low Altitude Warning Radar


Product Introduction:


The LT-Ku09 two-dimensional phased array radar is equipped with advanced beam scheduling and signal/data processing technology, which can quickly detect and accurately track targets such as drones and aircraft. It supports up to 128 targets to be tracked simultaneously and has excellent accuracy in distance, angle, and velocity measurement. It is lightweight and easy to deploy, suitable for various target monitoring scenarios.


Product Features:


1. Strong detection performance: Long detection distance, simultaneous tracking of multiple targets, accurate ranging, angle measurement, and speed measurement, fast data refresh.

2. Easy deployment: The device has a compact structure, lightweight, supports 220V AC power supply and network port connection, and is efficient in installation and debugging.

3. Strong environmental adaptability: IP66 protection level, 360 ° all-round scanning, wide coverage, suitable for complex environments.


​Parameter Name Parameter Value
Operating Frequency Band Ku Band
Detection Range 5km (RCS: 0.01m2)
Angle Range Azimuth Scan ± 45°, Elevation Scan 0 °~40°, Azimuth Mechanical Scan 360 °
Relative Velocity Range 1m/s-72m/s
Relative Velocity Accuracy ± 0.5m/s
Angle Accuracy (Azimuth) 0.5°
Angle Range (Elevation) 40°
Angle Accuracy (Elevation) 0.5°
Range Accuracy ≤ 5m
Range Resolution ≤ 15m
Target Update Rate Machine Scan TWS: 6s, Phase Scan TWS: 2s, TAS: 0.2s
Target Capacity ≥ 128 Tracks
Power Supply AC220V
Ingress Protection Rating IP65

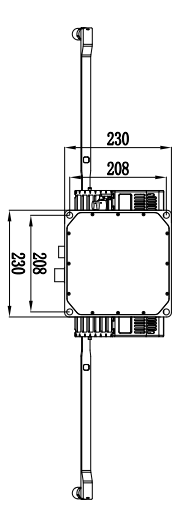

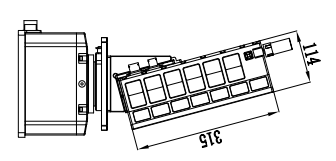

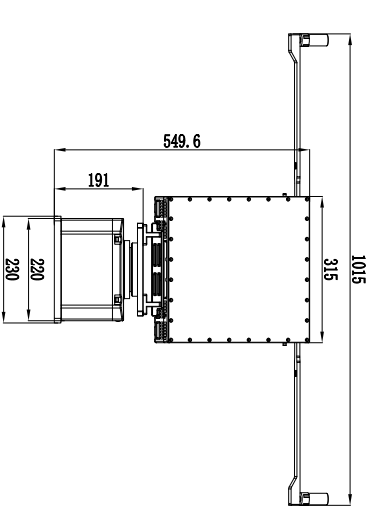

Size ≤ 315mm*315mm*132.8mm
Weight ≤ 15kg + 10kg
