Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Specifications
Place of Origin :
China
Brand Name :
Zhengde Metal
Price :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Model NO. :
ZD-HRU123
Shape :
U&C Channel
Perforated :
Not Perforated
Length :
5-19m
Material :
1020/C20e4/1045/E355dd/Q235B/Q355b
Product Name :
UC Channel
Custom Cycle :
7-15 Days
Production Standards :
ASTM/JIS/AISI/DIN/BS/En/GB
Payment Term :
30%T/T Advance + 70% Balance
Alloy or Not :
Customized
Thickness :
Customized
Lengh :
5-12m
Advantage :
Wear Resistance, Machinability, Easy Welding
Specification2 :
Zd-Hru8/10/12/14/16/18/20
Quotation :
Update Prices for Customers Every Day
Application :
Building Structures
Processing Service :
Bending, Welding, Decoiling, Punching, Cutting
Measurement :
by Actual Weight
Production Capacitye :
1000 Ton/Tons Per Month
Transport Package :
Export Standard Package/as Request
Specification :
According to customer requirements
Trademark :
ZHENGDE
Origin :
China
HS Code :
7216310000
Supply Ability :
30000 Tons/Month
Description
Light Weight H C U Channel Manufacturers ASTM A36 Sch80 Ss400 S235jr W24*131 Hot Rolled Carbon Steel For Building Structures
Product Description

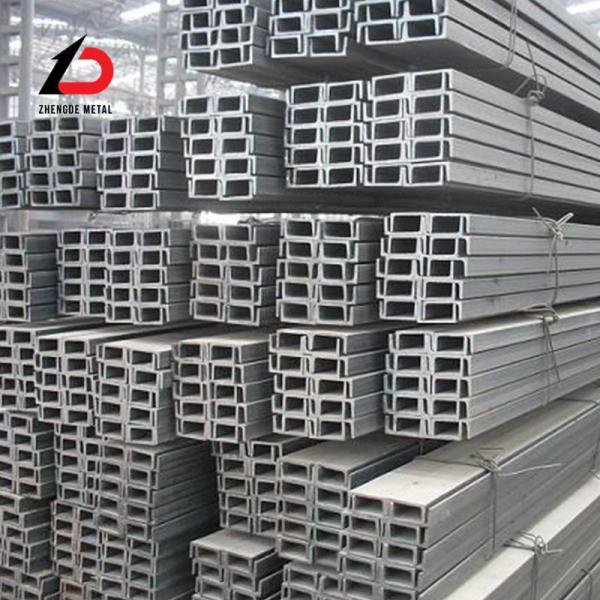

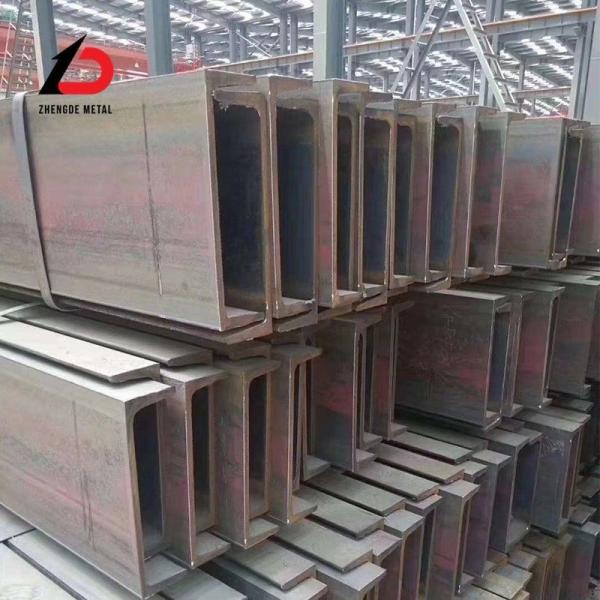

Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon SteelZhengde U&C Channel steel is U-shaped steel is a steel with a cross-section like the English letter "U", and sometimes the cross-section is in the shape of the Japanese letter "".
Main features: high pressure, long support time, easy installation and not easy to deform.
Main application: It is mainly used for mine roadway, secondary support of mine roadway, and support of mountain tunnel.
As the main section steel for manufacturing roadway shrinkable metal brackets, U-section steel is widely used at home and abroad...

UPE80 80*50*4.5*8 8.89
UPE100 100*55*5*8.5 10.9
UPE120 120*60*5.5*9 13.2
UPE140 140*65*6*9.5 15.7
UPE160 160*70*6.5*10 18.6
UPE180 180*75*7*10.5 21.6
UPE200 200*80*7.5*11 24.8
UPE220 220*85*8*12 28.8
UPE240 240*90*8.5*13 33.4
UPE270 270*95*9*14 38.8
UPN65 65*42*5*7 7.09
UPN80 80*45*6*8 8.64
UPN100 100*50*6*8.5 10.6
UPN120 120*55*7*9 13.4
UPN140 140*60*7*10 16
UPN160 160*65*7.5*10.5 18.8
UPN180 180*70*8*11 22
UPN200 200*75*8.5*11.5 25.3
UPN220 220*80*9*12.5 29.4
UPN240 240*85*9.5*13 33.2
UPN260 260*90*10*14 37.9
UPN280 280*95*10*15 41.8
UPN300 300*100*10*16 46.2
Our Advantages
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Excellent characteristics
The material of the U&C channel steel is generally carbon structural steel such as 1020/C20E4/1045/E355DD, and some channel steels with special requirements are made of alloy steel. The second is the surface treatment of the channel steel. The surface treatment of channel steel generally includes painting, galvanizing, and plastic spraying to improve the corrosion resistance and aesthetics of channel steel. The last is the processing method of channel steel. Channel steel can be processed by cutting, drilling, welding, etc. to meet different usage needs.
Major application
U&C channel steel has a wide range of uses and can be used in construction, machinery manufacturing, automobile manufacturing, shipbuilding and other fields. In the field of construction, channel steel is often used to make steel structure frames, support frames, beams and columns, etc. In the field of machinery manufacturing, channel steel is often used to make machine tool beds, tracks, conveyor belts, etc. In the field of automobile manufacturing, channel steel is often used to make frame, body and so on. In the field of shipbuilding, channel steel is often used to make hull frames, ship equipment, etc.
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Attention to detail
The surface quality and allowable deviation of the geometric shape of the channel steel are specified in the standard. It is generally required that there should be no harmful defects in use on the surface, and no significant torsion. The allowable value of the wave bend (sickle bend) of the channel steel and the relevant parameters (h, b, d, t, etc.) of the cross-sectional shape of the channel steel of each specification are specified. value, tolerance value. The main manifestations of the incorrect geometric shape of the channel steel are: collapse angle, leg expansion and leg merging, etc.
Chinese channel steel specification
Model Size(mm) SD
(cm2)		 TW
(Kg/m)
h b tw t r r1
5 50 37 4.5 7 7 3.5 6.92 5.44
6.3 63 40 4.8 7.5 7.5 3.8 8.45 6.63
8 80 43 5 8 8 4 10.24 8.04
10 100 48 5.3 8.5 8.5 4.2 12.74 10
12.6 126 53 5.5 9 9 4.5 15.69 12.31
14a 140 58 6 9.5 9.5 4.8 18.51 14.53
14b 140 60 8 9.5 9.5 4.8 21.31 16.73
16a 160 63 6.5 10 10 5 21.95 17.23
16b 160 65 8.5 10 10 5 25.15 19.75
18a 180 68 7 10.5 10.5 5.2 25.69 20.17
18b 180 70 9 10.5 10.5 5.2 29.29 22.99
20a 200 73 7 11 11 5.5 28.83 22.63
20b 200 73 7 11 11 5.5 32.83 25.77
22a 220 77 9 11.5 11.5 5.8 31.84 24.99
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.
Detailed Photos

Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon SteelLight Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel

Packaging & Shipping

Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel

Company Profile

Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon SteelShandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel

Certifications

Light Weight H C U Channel ASTM A36 Sch80 SS400 S235jr W24 X 131 Hot Rolled Carbon Steel
