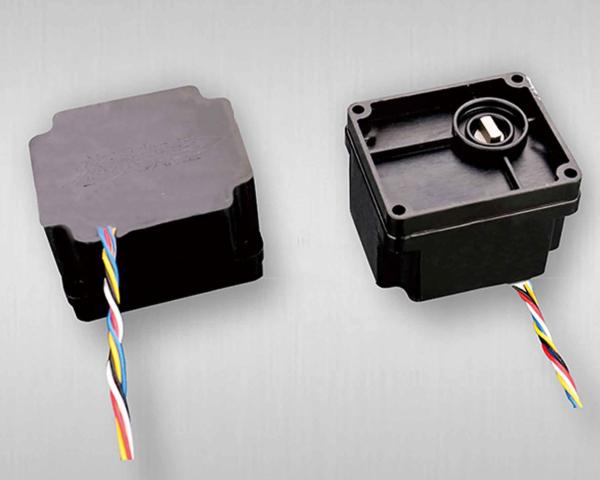

Ultrasonic IP66 5V DC DN15mm Linear Valve Actuator
Ultrasonic IP66 5V DC DN15mm Linear Valve Actuator
Ultrasonic IP66 5V DC DN15mm Linear Valve Actuator
Ultrasonic IP66 5V DC DN15mm Linear Valve Actuator
Specifications
Brand Name :
Lekin
Model Number :
K24
Certification :
ISO9001/SGS
Place of Origin :
Hangzhou,China
MOQ :
1000 pieces
Payment Terms :
T/T, L/C
Supply Ability :
200000 sets/month
Delivery Time :
20 working days
Packaging Details :
carton
Type :
DC valve actuator
Power :
DC 3.6 V
Current at empty run :
25 mA at 3.6V, 23 C
Current at working :
450 mA (motor #300)
Torque :
1.8 NM (2400:1) / 2.5NM (3400:1)
Open / close time :
10 s (2400:1) / 15 S (3400:1)
V reduction ratio :
2400:1 for DN15/20mm, 3400:1 for DN25 mm
Protection :
IP66
Description

5V DC Mini Electric Linear Valve Actuator for Motor Brass Ball Valve in Shutting off/on Water Meter DN15mm

With the 2-way, mini electric motorized valves, you can control the flow by setting opening degree,fully open,fully closed,30% open,60% open

Feature:

1) Compact design and light weight: It is considered "mini",because it only measures approx 3 inches wide by3 inches tall ,and it only weights approx 0.3~0.5KG/pc.
2) High performance&price ratio:
3) Application&Design: Mini electric ball valve is electrically operated valve used in various automatic water treatment system,water leak alarm & shut off system,it is made of two parts,Electric actuator+Ball valve,the valve will open&close when voltage applies&remove to the motor.

Applications:

-Water saving

-RF type IC card prepay water meter

-Flow control in water treatment

-Automatic drain in central heat supply system


Model K24 Technical data
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idling: <25 mA @ 3.6V, 23ºC
3. Current with loading: <450 mA (motor #300)
4. Torque: >1.8 NM (2400:1) / >2.5 NM (3400:1)
5. Open/close time: <10 S (2400:1) / <15 S (3400:1)
6. Velocity reduction ratio: 2400:1 (DN15/20mm), 3400:1 (DN25 mm).
7. Protection: IP66

Definition of wiring terminals:

Wire color Description
Blue signal of switch on position, open valve
White signal of public terminal
Yellow signal of switch off position, close valve
Red power terminal, + positive
Black power terminal, - negative
