Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4 - 8 thread
Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4 - 8 thread
Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4 - 8 thread
Hub and lateral for FRP Pressure Tanks Bottom mount 6 laterals control valves 4 - 8 thread
Specifications
Brand Name :
Purescience
Model Number :
JD325
Certification :
NSF/ISO9001/SGS
Place of Origin :
China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
carton
Product Name :
Hub and 6 laterals
Riser openings :
6
Suitable Tank Dia. :
13" - 48"
Connect :
Thread
Standard :
NSF / ISO9001 / SGS
Mount :
Top mount
Model :
JD325
Description

Hub and lateral for Bottom mount 6 laterals control valves 4" - 8" thread

Specification

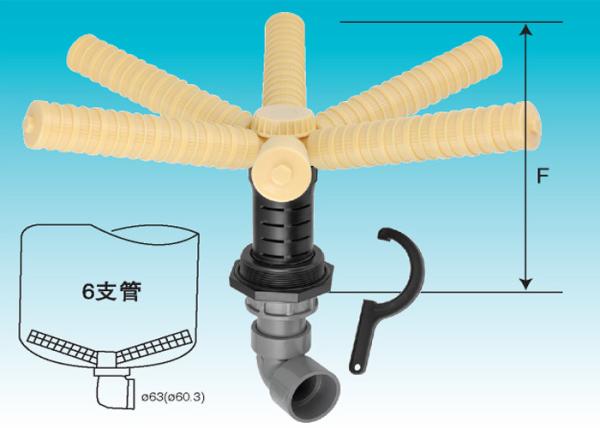

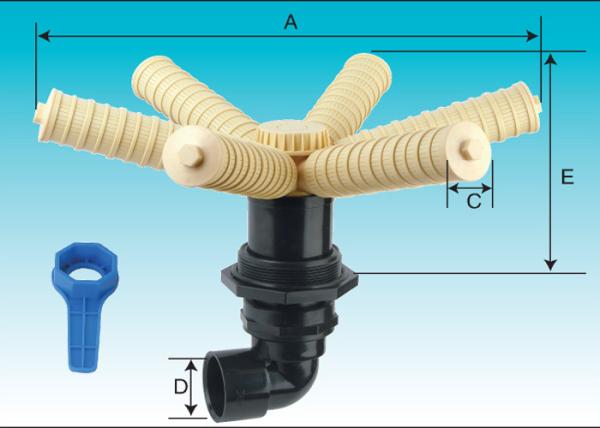

Model A B C D E F Slot Tank Dia. Top opening
JD325 235 99 53 63 / 60.3 198 221 0.2/0.25/0.4 13"-16"(350 - 400mm) 4" - 8" Thread
JD319 350 161 53 63 / 60.3 215 238 0.2/0.25/0.4 18"-20" (450-50) 4" - 8" Thread
JD320 465 223 53 63 / 60.3 232 255 0.2/0.25/0.4 24" ( DIA. 600mm) 4" - 8" Thread
JD321 585 283 53 63 / 60.3 250 273 0.2/0.25/0.4 30" (DIA. 750mm) 4" - 8" Thread
JD322 705 348 53 63 / 60.3 267 290 0.2/0.25/0.4 36"-40" (Dia 900-1000mm) 4" - 8" Thread
JD323 825 416 53 63 / 60.3 280 303 0.2/0.25/0.4 48" (DIA. 1200mm) 4" - 8" Thread
JD314 253 98 35 63 / 60.3 186 213 - 13"-16"(350 - 400mm) 4" - 8" Thread
JD315 350 153 35 63 / 60.3 200 227 - 18"-20" (450-50) 4" - 8" Thread
JD316 445 200 35 63 / 60.3 215 241 - 24" ( DIA. 600mm) 4" - 8" Thread
JD317 590 281 35 63 / 60.3 235 261 - 30" (DIA. 750mm) 4" - 8" Thread
JD318 680 327 35 63 / 60.3 245 272 - 36"-40" (Dia 900-1000mm) 4" - 8" Thread
JD331 835 406 35 63 / 60.3 262 289 - 48" (DIA. 1200mm) 4" - 8" Thread

Riser pipe openning options:

- Solvent welded

- F NPT / BSP thread

Description

The top mount hub and lateral systems are designed for use with top mount water softeners or filter valves. The top

mount hub and lateral series is designed to accommodate 14" - 36" diameter fiberglass mineral tanks with 4" - 6" top

openings. The top mount hub and lateral series consists of an ABS hub and 8-PVC slotted laterals with ¾" threaded

adapters. The hub is available with a number of openings to accommodate different riser pipe diameters. To install,

simply solvent weld or thread the riser pipe into the hub and insert it into the tank through the top opening. Thread the

laterals into the hub and extend the hub and laterals to the bottom of the mineral tank..

Applications:

Residential tanks (Dia.: 6"-13”)

Water filter, water softener

Commercial tank (Dia.: 14"-24”)

Water filter, water softener, prefilter for water treatment and storage

Industrial tanks (Dia.: 30"-63”)

Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
