Thread top & bottom mount diffuser for side mount Riser pipe 4
Thread top & bottom mount diffuser for side mount Riser pipe 4
Thread top & bottom mount diffuser for side mount Riser pipe 4
Thread top & bottom mount diffuser for side mount Riser pipe 4
Specifications
Brand Name :
Purescience
Model Number :
JD311
Certification :
NSF/ISO9001/SGS
Place of Origin :
China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
carton
Product Name :
4" thread top & bottom mount diffuser for side mount
Riser tube Dia. :
4"
Suitable Tank Dia. :
30" - 40"
Connect :
Thread NPT/BSP
Standard :
NSF / ISO9001 / SGS
Mount :
Side mount
Model :
JD311
Description

Thread top & bottom mount diffuser for side mount Riser pipe 4"

Specification

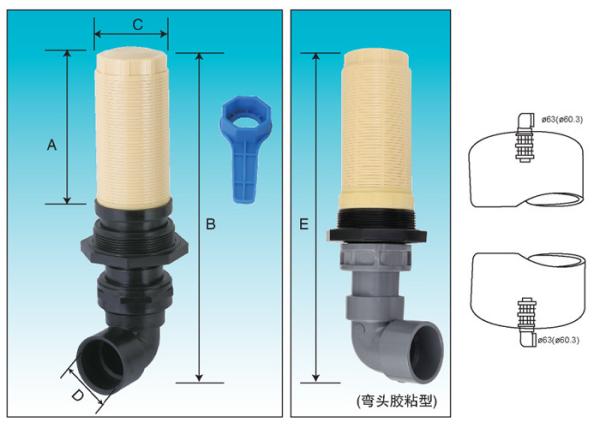

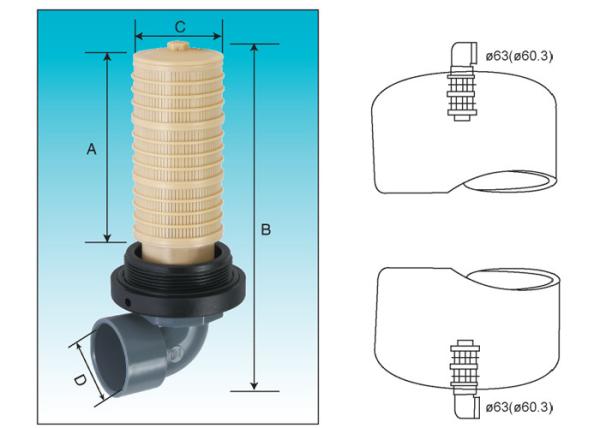

Model A B C Dia. E Suitable tank Opening
JD311 197 400 88 63/60.3 410 30" (Dia. 750mm) 4"-8" Thread
JD312 280 483 88 63/60.3 488 30" - 40" (Dia. 750-1000mm) 4"-8" Thread
JD313 330 533 88 63/60.3 538 36" - 40" (Dia. 900-1000mm) 4"-8" Thread
JD311N 190 320 88 63/60.3 - 30" (Dia. 750mm) 4"-8" Thread
JD312N 250 380 88 63/60.3 - 30" - 40" (Dia. 750-1000mm) 4"-8" Thread
JD313N 300 430 88 63/60.3 - 36" - 40" (Dia. 900-1000mm) 4"-8" Thread

Riser pipe openning options:

-Elbow Solvent welded

-Elbow thread

Description

The stack distributor assemblies are designed to be used interchangeably as either top or bottom distributors. The

distributor assemblies consist of a segmented stack distributor, 4”-8 adapter, and a 2” CPVC socket elbow or 6”

Flange Adapter only. The segmented distributor has the ability to open up when backwashed, removing any possible

fines that might accumulate on the distributor. The top and bottom assemblies are designed for use with 30” - 40”

diameter fiberglass mineral tanks. Assembly is quick and simple. Installation is accomplished by simply

threading or bolting on the complete distribution assembly directly in the top or bottom opening of the mineral tank.

Applications:

Residential tanks (Dia.: 6"-13”)

Water filter, water softener

Commercial tank (Dia.: 14"-24”)

Water filter, water softener, prefilter for water treatment and storage

Industrial tanks (Dia.: 30"-63”)

Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
