12 laterals control valves 4 - 8 thread For pressure water tank
12 laterals control valves 4 - 8 thread For pressure water tank
Specifications
Brand Name :
Purescience
Model Number :
JD326
Certification :
NSF/ISO9001/SGS
Place of Origin :
China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
carton
Product Name :
Hub and 12 laterals for top mount
Riser openings :
12
Suitable Tank Dia. :
13" - 48"
Connect :
Thread
Standard :
NSF / ISO9001 / SGS
Mount :
Top mount
Model :
JD326
Description

Hub and lateral for top mount 12 laterals control valves 4" - 8" thread

Specification

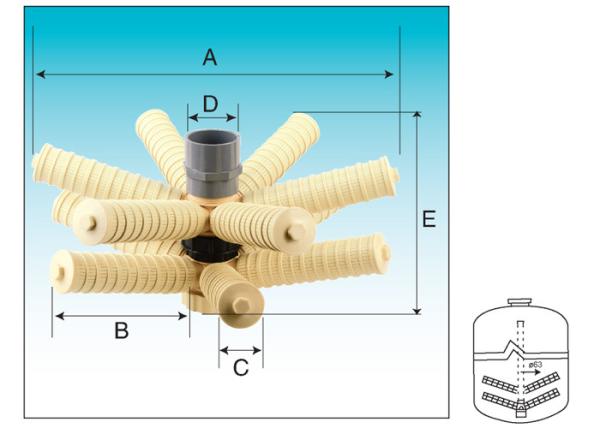

Model A B C D E Slot Tank Dia. Top opening
JD326 705 348 53 63 / 60.3 245 0.2/0.25/0.4 36"-40" (Dia 900-1000mm) 4" - 8" Thread
JD327 825 416 53 63 / 60.3 258 0.2/0.25/0.4 48"-40" (Dia. 1200mm-1500mm) 4" - 8" Thread

Riser pipe openning options:

-Solvent welded

-F NPT / BSP thread

Description

The top mount hub and lateral systems are designed for use with top mount water softeners or filter valves. The top

mount hub and lateral series is designed to accommodate 14" - 36" diameter fiberglass mineral tanks with 4" - 6" top

openings. The top mount hub and lateral series consists of an ABS hub and 8-PVC slotted laterals with ¾" threaded

adapters. The hub is available with a number of openings to accommodate different riser pipe diameters. To install,

simply solvent weld or thread the riser pipe into the hub and insert it into the tank through the top opening. Thread the

laterals into the hub and extend the hub and laterals to the bottom of the mineral tank..

Applications:

Residential tanks (Dia.: 6"-13”)

Water filter, water softener

Commercial tank (Dia.: 14"-24”)

Water filter, water softener, prefilter for water treatment and storage

Industrial tanks (Dia.: 30"-63”)

Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
