Bottom stack screen for FRP Pressure Tanks basket filter / Riser pipe
Bottom stack screen for FRP Pressure Tanks basket filter / Riser pipe
Bottom stack screen for FRP Pressure Tanks basket filter / Riser pipe
Bottom stack screen for FRP Pressure Tanks basket filter / Riser pipe
Specifications
Brand Name :
Purescience
Model Number :
JD217(L)
Certification :
NSF/ISO9001/SGS
Place of Origin :
China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
carton
Product Name :
Bottom stack screen
Riser tube Dia. :
1.5"
Suitable Tank Dia. :
24" - 40"
Connect :
Glue / quick connect
Standard :
NSF / ISO9001 / SGS
Suitable control valve :
Top mount control valve
Model :
JD217L
Description

Bottom stack screen for basket filter Riser pipe Diameter 1 1/4" & 1.5"

Specification

Model No. Description Suitable tank Diameter (in/mm)

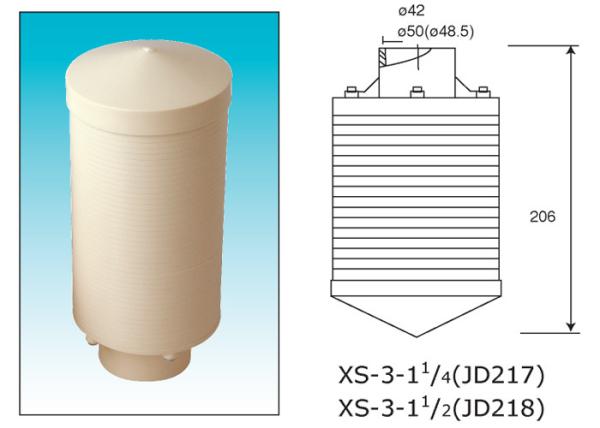

XS-3-1 1/4 180 Bottom stack distributor 12" - 36" ( Dia. 300mm - 900mm)
XS-3-1 1/2 182 Bottom stack distributor 12" - 36" ( Dia. 300mm - 900mm)

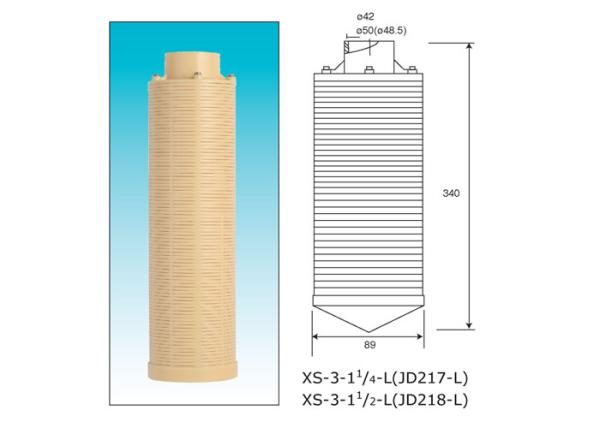

XS-3-1 1/4L 180 Bottom stack distributor 24" - 40" ( Dia. 600mm - 1000mm)
XS-3-1 1/2L 182 Bottom stack distributor 24" - 40" ( Dia. 600mm - 1000mm)

Riser pipe openning options:

-3/4" Solvent welded

-3/4" Quick connect

-1" Solvent welded

-1" Quick connect

Description

The top and bottom distributors are designed for use with top and bottom mount water softeners or filter valves.

The standard slot size is 0.010 - 0.013. The distributors are designed for use with 6" - 36" diameter fiberglass

reinforced tanks with a 2.5" - 4" top openings. The bottom distributors are designed to accommodate a number of

different size riser pipes which can be solvent welded or threaded directly into the distributors. To install, solvent

weld or thread the riser pipe directly into the distributor and extend the distributor to the bottom of the mineral tank.

Applications:

Residential tanks (Dia.: 6"-13”)

Water filter, water softener

Commercial tank (Dia.: 14"-24”)

Water filter, water softener, prefilter for water treatment and storage

Industrial tanks (Dia.: 30"-63”)

Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

We have been manufacturing water distributors, disperer and pressure tanks since 1997, and accumulated good reputation for our good quality, reliability and service.
