UZK-102 UHF Long Distances Integrated Reader,logistics,parking lot,animal identification
UZK-102 UHF Long Distances Integrated Reader,logistics,parking lot,animal identification
Specifications
Place of Origin :
China Mainland
Brand Name :
SeabreezeRFID
Certification :
ROHS
Model Number :
UZK-102
Add time : :
2014-01-18 19:21:11
MOQ :
1pcs
Packaging Details :
1pcs/carton
Delivery Time :
Asap
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
500pcs/month or Specify the number
Description
UZK-102 UHF Long Distances Integrated Reader,logistics,parking lot,animal identification and anti-counterfeit

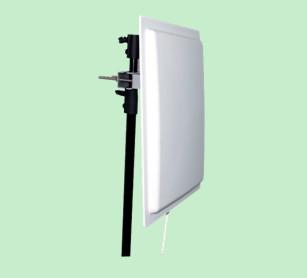

UZK-102 is a high performance UHF integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.Typical read range of 1-15 meter.It can be widely applied in many RFID application systems such as logistics, access control,parking lot,animal identification and anti-counterfeit and industrial production process control system.
UZK-102 UHF Long Distances Integrated Reader,logistics,parking lot,animal identification
Model: UZK-102
Size: 445mm×445mm×55mm
Weight: 2600g
Features:
Self-intellectual property
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
902-928MHz frequency band(frequency customization optional)
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable)
12dbi antenna optional with effect distance more than 10m(Effective distance depends on antenna, tag and environment)
Support auto-running, interactive and trigger-activating work mode
Low power dissipation with single +9 DC power supply
Support RS232, RS485, Wiegand interface
Provide DLL and Demonstration Software Source code to facilitate further development

CHARACTERISTICS

 Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp. TOPR -10-+60 ℃
Storage Temp. TSTR -25-+80 ℃

 Electrical and Mechanical Specification
Under TA＝25℃,VCC＝+9V unless specified
ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC 8 9 12 V
Current Dissipation IC 350 650 mA
Frequency FREQ 902 928 MHz
Effective Distance DIS 800 1000 cm

INTERFACE

ITEM COMMENT
Red +9V
Black GND
Yellow Wiegand DATA0
Blue Wiegand DATA1
Purple RS485 R+
Orange RS485 R-
Brown GND
White RS232 RXD
Green RS232 TXD
Grey Trigger input(TTL level)

Used in parking lot management system

UZK-102 UHF Long Distances Integrated Reader,logistics,parking lot,animal identification
