Specifications
Certification :
ISO9001
Packaging Details :
Wooden Box
Supply Ability :
10 Set/Sets per Quarter
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Positioner
place of origin :
Sichuan, China
brand name :
HANYAN TECHNOLOGY
warranty :
1 Year
weight (kg) :
1000
voltage :
220V/380V
current :
Depends on welding
rated capacity :
1KVA
rated duty cycle :
100%
dimensions :
2700x1700x2200mm
usage :
stator welding
welding process :
TIG
Weight :
2000kg
After-sales Service Provided :
Field installation, commissioning and training
Applicable Industries :
Manufacturing Plant
Showroom Location :
Egypt, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Key Selling Points :
Automatic
Port :
Shanghai
Description

Product Description

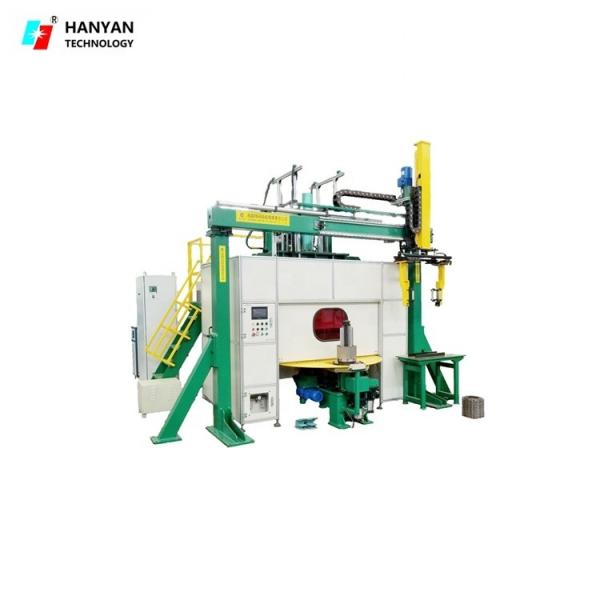

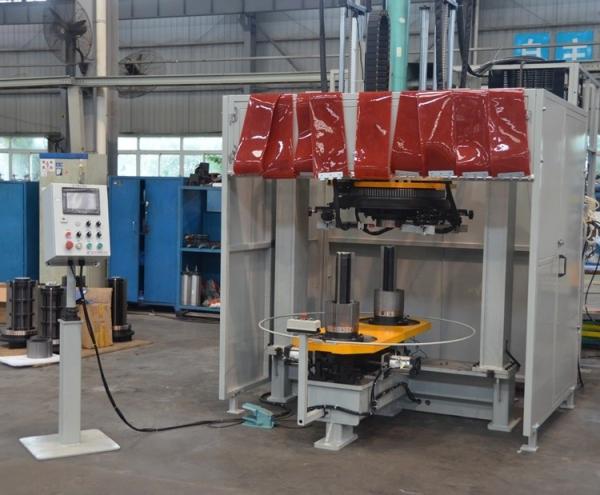

automatic new energy electric motor stator rotor lamination stack TIG welding machine

Main parameter:

u Weld seams: 4 lines, 8 lines

u Turntable rotation: 360°

u Measurement height error: 0.2mm

u Inner diameter of iron core: Φ331mm

u Outer diameter of iron core: Φ535mm

u Core height: 225mm

u Gun travelling length: 400mm

u The welding speed: 100~1500mm/min

u Pressing head maximum force: 500kN

u Lifting stroke of pressing head: 600mm

u Welding current range: 10~400 A

u Duty cycle: 60%

u Rated input capacity: 70KVA

u Argon flow: 60L/min

u Power input: 3 Phase 50Hz 380V

u Compressed air: ≥0.4MPa

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

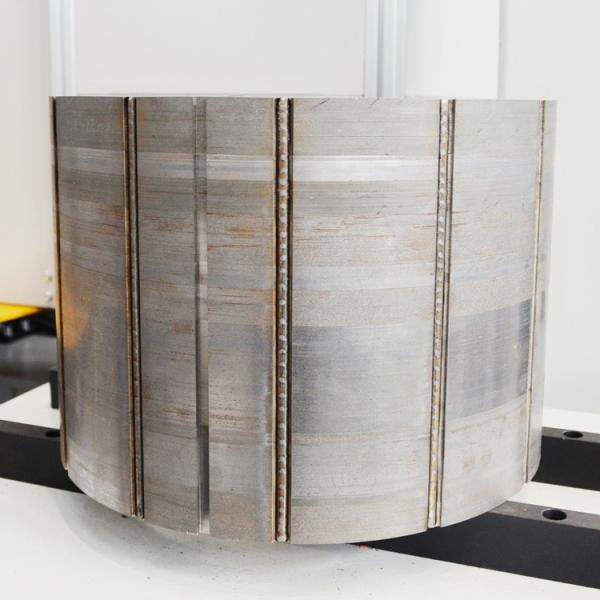

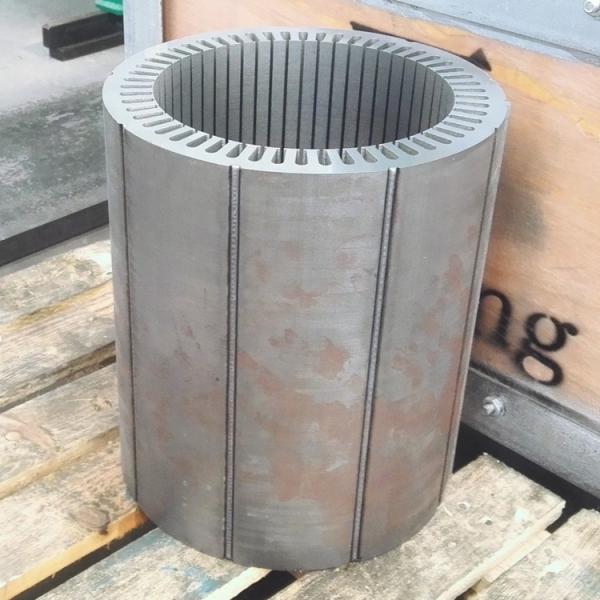

l Workpiece: stator silicon steel sheet lamination

l Specifications:

Inner diameter range: Φ331mm;

Outside diameter range: Φ535mm;

Height range: 225mm;

Maximum weight: 40Kg.

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine 1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

In our factory:

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

1000kg Auto Customized Welding Machine Electric Motor TIG Welding Machine
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
