Specifications
Certification :
ISO9001:2008
Packaging Details :
Wooden Box
Supply Ability :
1 Set/Sets per Quarter
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding robot
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year, 1 year
weight (kg) :
5000
voltage :
220V
current :
depends on welding
rated capacity :
150VA
rated duty cycle :
100%
dimensions :
4000x2000x2000mm
usage :
robot welding
After-sales Service Provided :
Engineers available to service machinery overseas
stainless steel pipe welding machine :
production line
color :
blue
service :
available
Weight :
5 T
Type :
Other
Applicable Industries :
Manufacturing Plant
Showroom Location :
Egypt, Turkey, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Key Selling Points :
Automatic
Port :
Shanghai/chongqing
Description

Customization

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR WELDING NEEDS!

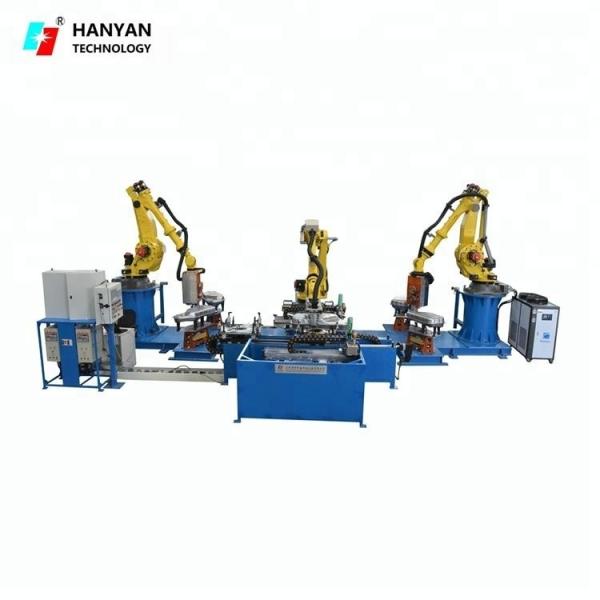

Robot welding workstation for Y-shape longitudinal seams of axle housing

stainless steel pipe welding machine

1) Welding object:

Workpiece material: Carbon steel

Weld position: Y-shape longitudinal seams in axle housing, double sides

Pre-welding status of workpiece: Pre-welding tack

2) Equipment introduction:
The double robot welding workstation for Y-shape longitudinal seams of axle housing is mainly used in automatic welding of longitudinal seams of half rear axle housing and triangle. The metal CO2 gas shielded welding process is used. The axle housing is positioned and clamped with special tools, and robot carries out automatic welding. After single-sided welding is completed, the axle housing is reversed 180° through positioner for the welding of other side. Two robots carry out welding of Y-shape longitudinal seams at both sides of the axle housing at the same time. Two robots are assembled at the base of robot, and two sets of head-and-tail style positioners are placed at both sides of the robots with the layout of double working position. The whole set of equipment features simple operation, convenient setting of welding parameters, high level of automation and etc. Mature welding process and equipment manufacturing process are taken.

3) Basic configuration of equipment:


Serial No.


Model & Specification


Quantity


Remark

1


Arc welding robot system

2

2


Welding power supply system

2

3


Device for the cleaning of welding torch and the clipping of welding wire

2

4


Single-axle rotary positioner

2

5


Fully-closed safety shield and safety door

1

6


Accessories of robot workstation

2

7


Electric integration control system

1

8


Air circuit system

1

4) Major technical parameters:


Structural pattern


Double robots, double working positions


Power supply

380V 50Hz
Three phase 380V 50Hz


Welding speed

140~200mm/min

Thickness of welding plate

8~20mm

Width of welding plate

100~1450mm

External dimensions of welding machine

Length(Along the line)5000×Width 4000×Height 2300mm


Weldable materials


Carbon steel, alloy steel, 16MnR and etc.


5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine
5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine

Visit

In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine

In our factory:
5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.
5000kg Robot Customized Welding Machine 150VA Stainless Steel Pipe Welding Machine
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
