High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine
High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine
High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine
High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine
Specifications
Certification :
CE,ISO9000
Packaging Details :
Wooden Box
Supply Ability :
1 Set/Sets per Quarter
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding robot
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year, 12
weight (kg) :
1000
voltage :
220V
current :
depends
rated capacity :
depends
rated duty cycle :
depends
dimensions :
contact to know more
usage :
longitudinal seam welding
After-sales Service Provided :
Engineers available to service machinery overseas
seam welding :
longitudinal seam
Certificate :
ISO 9001:2008
color :
depends
service :
available
Weight :
contact to know more
Type :
Other
Applicable Industries :
Manufacturing Plant
Showroom Location :
Egypt, Turkey, Pakistan, India, Mexico, Russia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, motor, Gear
Key Selling Points :
Automatic
Port :
Shanghai/Chongqing
Description

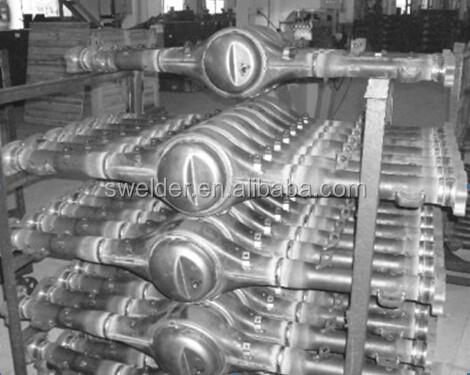

Special submerged arc welding machine for Y-shape longitudinal seams of axle housing

1) Welding object of seam welding

Workpiece material: Carbon steel

Weld position: Y-shape longitudinal seams in axle housing, double sides

Pre-welding status of workpiece: Pre-welding tack

2) Equipment introduction:
The special automatic welding machine for Y-shape longitudinal seams of axle housing is mainly used in automatic welding of longitudinal seams of rear half axle housing and triangle. The SAW process is taken. The axle housing is positioned and clamped with special tools. After single-sided welding is completed, the axle housing is reversed 180° through positioner for the welding of other side. Two welding torches carry out welding of Y-shape longitudinal seams at both sides of the axle housing at the same time. The whole set of equipment features simple operation, convenient setting of welding parameters, high level of automation and etc. Mature welding process and equipment manufacturing process are taken.

3) Checklist of equipment configuration:


Serial No.


Name


Quantity


Remark

1


Welding mainframe

1


Hanyan Technology

2

Submerged arc welding power supply system

2

Panasonic ZD5-1000E

3

Weld laser indicator

2

Weld guidance

4


Air circuit control system

1


Taiwan AIRTAC or brand of the same class

5


Power cable, drag chain and other accessories


Some


Hanyan Technology

6


Electrical control system

1


PLC + Touch screen

7


Three-sided protective fence

1


Hanyan Technology

8


Welding drying machine

1


Home-made brand

4) Major technical parameters:


Serial No.


Project name


Technical target

1


Input power supply:

380V 50Hz
Three phase 380V 50Hz

2


Applicable welding wire

Φ4.0

3


Adjustable scope of welding torch

X/Y/Z=±50mm

4


Travel length of welding torch upward and downward

0~250mm

5


Welding speed scope

0.2~1.2m/min

6


Weldable length of equipment

1000~1600mm

7


Turning angle of workpiece

±180°

8


Turning speed of workpiece


Constant speed

9

Consumption of compressed air:

0.2m3/min


High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding MachineHigh Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding MachineHigh Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine

Company Information

High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine
Chengdu Hanyan technology Co.,Ltd. is a high-tech enterprise which is involved in researching and developing,designing, manufacturing and service of welding equipment.
Chengdu Hanyan technology Co.,Ltd. As one of the most professional research & development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.
We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.
High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine

Exhibitions

High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine

Our Services

Guarantee and After-sale service

1. One year guarantee for whole machine
2. 24 hours technical support by e-mail
3. Calling or door to door service
4. Engineers available to service machinery overseas


Visit

In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine

In our factory:
High Capacity Customized Welding Machine 220V Automatic Submerged Arc Welding Machine
