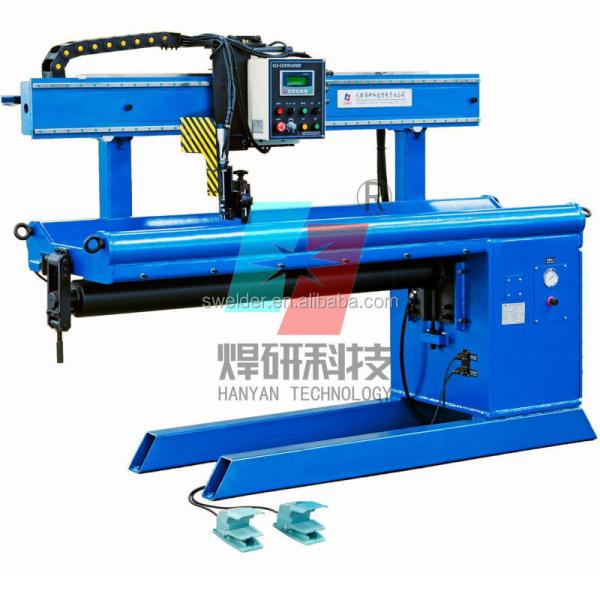

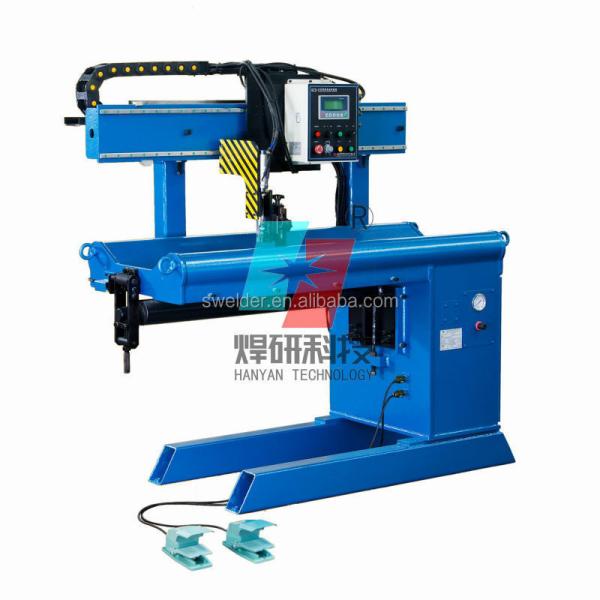

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current
Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current
Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current
Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current
Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current
Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current
Specifications
Packaging Details :
Wooden Box
Supply Ability :
150 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding robot
place of origin :
Sichuan, China
brand name :
Hanyan technology
warranty :
1 Year
weight (kg) :
1000
voltage :
380V
current :
800A(Max)
rated capacity :
Depends
rated duty cycle :
Depends
dimensions :
Depends on types
usage :
Seam welding
After-sales Service Provided :
Engineers available to service machinery overseas
cnc lathe machine price :
ZFJ series
Forming Time: :
depends on welding length
Warranty: :
12
Welding Length: :
0-3075mm(0-120inch)
Welding Mode: :
TIG/MIG/MAG/PAW etc.
Power(W): :
1.5Kw
Weldable Workpiece: :
Tubular, tabular parts
Service: :
Customer driven
Weight :
360-1800kg
Applicable Industries :
Manufacturing Plant
Showroom Location :
Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Key Selling Points :
Automatic
Port :
Any port in China
Description

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!

Product Description

Weldlogic PLS Weld Seamers are designed for straight line welding of all weldable metals in thicknesses from .005” to 1/2” and lengths up to 15 feet.

· Suitable for TIG, Plasma, MIG, Sub-Arc and Laser welding

· Fully welded fabrication

· Mandrel has vertical adjustment for various thicknesses

· Adjustable mandrel latch with unique safety control

· Independent left and right finger clamping

· Precision ball bearing, linear track for smooth travel

· Standard flexible track to support hoses and cables

· Unique, easy-to-use, precision alignment gauges

· Advanced carriage controls with automatic sequencing

· Pneumatic torch retraction

· Weld process development & support

· Dual pressure control

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max currentAutomatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max currentAutomatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

ZFJ-1000, ZFJ-1500, ZFJ-2000, ZFJ-2500, ZFJ-3000 welding machine price/welding lathe

Features:

1.Cantilevered structure, consists of bed, pneumatic finger clamps, guide beam, mandrel, electric carriage, pneumatic lifting device, 2D adjustment machanism, gas system and electrical control system.

2.Torch: pneumatic lifting device.

3.Linear motion: torch and carriage, driven by DC servo motor.

4.Pneumatic finger clamps and red copper backing bar provide balance clamping force and ensure back forming.

5.2D adjustment mechanism, adjust torch's initial welding position.

6.The distance between mandrel and finger clamps is adjustable.

Options:integrated wire feeder, seam aligning device, different backing bars,backing bar is cooling device, backing bar's gas shielding device,shielding cover.

Main technical parameters:

machinery

ZFJ-1000

ZFJ1500

ZFJ2000

control power

singlr phase 50Hz AC 220V

welding power supply

three-phase 50Hz AC380V

Carriage travel speed

100-1800mm/min

stroke of torch

100mm

2D range of torch

Y:±30mm, Z:±30mm

Max.welding current

500A

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

Company Information

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

Chengdu Hanyan technology Co.,Ltd. As one of the most professional research & development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.

We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

Packaging & Shipping

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max currentAutomatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

Our Services

Automatic Cylinder Seam Welder Machine CNC TIG Welding Machine 800A Max current

About us

Chengdu Hanyan Technology Co., LTD. is a national high-tech enterprise specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment.

With 360 employees, including 159 who have been devoting into welding area for over 15 years, we are serving customers worldwide with dozens of various types of precision equipment and a factory covering an area of 15000sqm. To establish modern management, we customized an ERP system which could ensure punctual delivery and offer process surveillance. We have accomplished more than 20 patents in automatic welding industry. We are capable of providing 4000 units specialized welding equipment annually.
