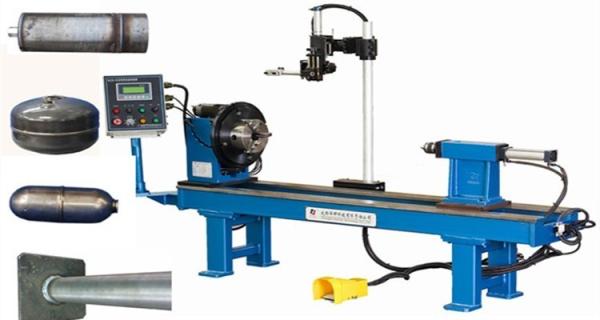

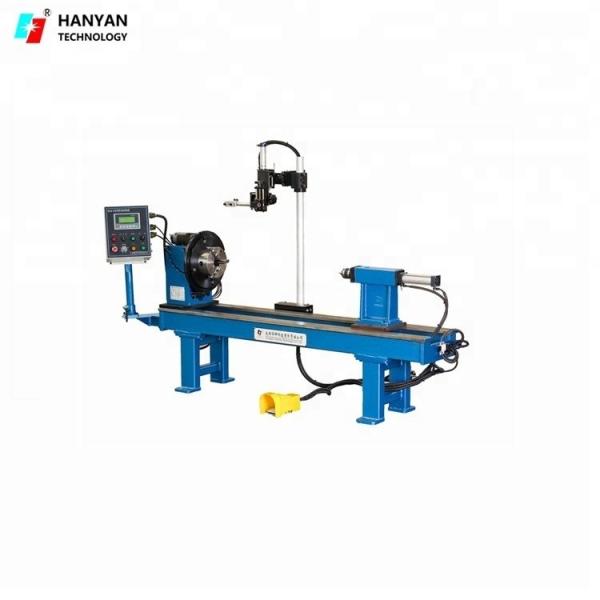

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment
Specifications
Certification :
CE/CCC/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
100 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Manipulator
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year
weight (kg) :
200
voltage :
200(control) / 380(weld)
current :
500A(Max.) for welding
rated capacity :
According to welding source
rated duty cycle :
over 60%(200A); within 60%(250A)
dimensions :
1900*600*1700mm
usage :
circumferential seam welding
After-sales Service Provided :
Field installation, commissioning and training
equipment :
welding equipment
Workpiece length :
0-1200mm
Workpiece diameter :
0-200mm
Rotating diameter :
550mm
Welding speed :
1-10RPM
Service :
Customer driven solution
Parameters :
Refer to details
Weight :
200Kg
Applicable Industries :
Manufacturing Plant
Showroom Location :
Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Key Selling Points :
Automatic
Port :
Shanghai/Chongqing
Description

Customization

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR WELDING NEEDS!

we already have clients from US,VN,PL,RU,IN,ZA,UZ,CS, BR,ZE,AE etc. include A.O. smith. We can offer you the best products.

Product Description

Application:

Easy to build an circumferential seam automatic welding system with welding source torche, to improve welding speed and quality.

Components:

It mainly consists of rotation headstock, tailstock, lathe bed, 3-D adjusting mechanism, pneumatic lifter and PLC controlling system. Combined structure is convenient for installation, and has a good mobility.

Lathe Bed: With guide rail, and the distance between headstock and tailstock is adjustable.

Rotation Headstock: Driven by DC gear motor, has stepless speed regulation function and welding current detection switch.

Tailstock: Operate hand whell, and impart motion to center.

Adjustable 3-D Device: Adjust torch position accurately.

Pneumatic Lifter: Lift up torch automatically.

Control System: Advanced PLC controlling system, humanized operation interface, high degree automation, stable and reliable performance.

technical parameters

Model

HF-300W

Control power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

According to the shape of opening

Workpiece diameter

200 mm≥φ≥10mm

Workpiece length

≤1200mm

Headstock rotation speed

1~10 r/ min

Workpiece rotating diameter

≤550mm

Spindle bore

φ≤50mm

Spindle output torque

≤72N·m

Workpiece weight

≤50Kg

Torch lifting height

100mm(pneumatic)

Tailstock travel stock

150mm(pneumatic)

Headstock adjustable angle

0°,30°,45°,60°,90°

Torch 3-D adjustable range

X:±30mm, Y:±50mm, Z:±30mm

Max. welding current

500A

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Other Standard Welding Machinery:

1. circumferentinal seam welding:

1.1. Horizontal:

HF-300W: singel seam welding

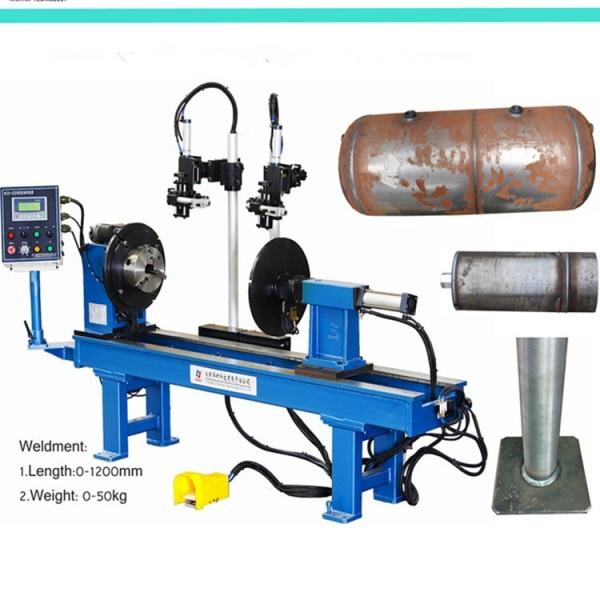

HF-300WS: double seam welding

1.2. Vertical:

HF-300L: single seam welding

HF-300LY: pressing and welding

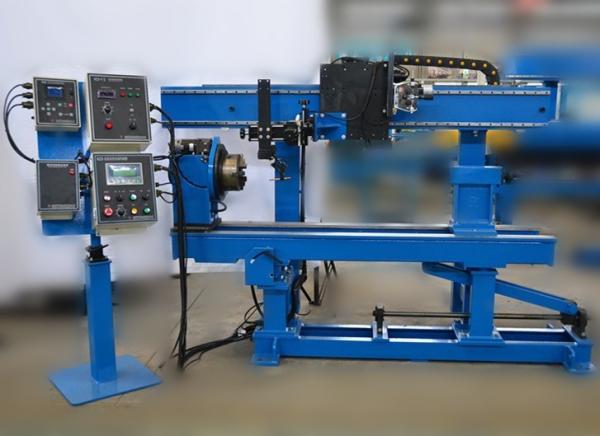

2. longitudinal seam welding(ZF-Series):

ZF-500: 500mm

ZF-1000: 1000mm

ZF-1500: 1500mm

ZF-2000: 2000mm

ZF-2500: 2500mm

ZF-3000: 3000mm

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Company information

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Chengdu Hanyan Technology Co., Ltd.

is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal/Circumferential Seam Welder, Welding Auxiliaries, Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZED IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!

Packaging & Shipping

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

In our factory:

Precision And Smooth Circumferential Welder Horizontal Automated Welding Equipment

About us

Chengdu Hanyan Technology Co., LTD. is a national high-tech enterprise specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment.

With 360 employees, including 159 who have been devoting into welding area for over 15 years, we are serving customers worldwide with dozens of various types of precision equipment and a factory covering an area of 15000sqm. To establish modern management, we customized an ERP system which could ensure punctual delivery and offer process surveillance. We have accomplished more than 20 patents in automatic welding industry. We are capable of providing 4000 units specialized welding equipment annually.
