Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
Specifications
Certification :
CE/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
100 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Rotator
place of origin :
Sichuan, China
brand name :
HANYAN TECHNOLOGY
warranty :
1 Year
weight (kg) :
710
voltage :
220V
current :
500A(MAC. welding)
rated capacity :
50KVA
rated duty cycle :
60-100%
dimensions :
2300x900x1500
usage :
floats welding
welding machine :
HF-300WS
welding power :
380V
control power :
220V
color :
blue
service :
customized
workpiece lenth :
0-1200mm
workpiece diameter :
10-600mm
wrokpiece weight :
0-50kg
Weight :
710kg
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Engine
Key Selling Points :
High Safety Level
Port :
Shanghai
Description

HF-300W robotic stainless steel titanium alloy floating balls flow meter TIG welding machine

Model

HF-300WS

Control power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

According to the form of opening

Workpiece diameter

200 mm≥φ≥10mm

Workpiece length

≤1200mm

Headstock rotating speed

1~10 r/ min

Workpiece rotation diameter

≤550mm

Spindle bore

φ≤50mm

Spindle output torque

≤72N·m

Workpiece weight

≤50Kg

Torch lifting height

100mm(pneumatic)

Tailstock slide stock

150mm(pneumatic)

Headstock adjustable angle

0°,30°,45°,60°,90°

Torch 3-D adjustable range

X:±30mm, Y:±50mm, Z:±30mm

Max. welding current

500A

Application

Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow MeterLenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow MeterLenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter

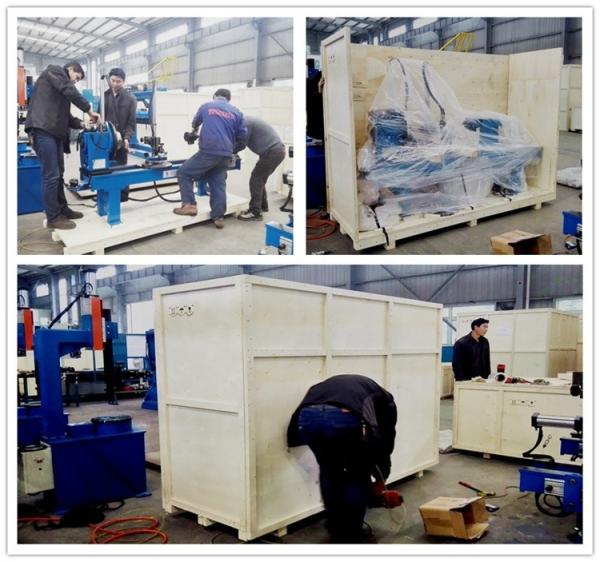

Package

Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter

In our factory:

Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Lenth 0 - 1200mm Robotic TIG Welding Machine Stainless Steel Titanium Alloy Floating Balls Flow Meter

About us

Chengdu Hanyan Technology Co., LTD. is a national high-tech enterprise specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment.

With 360 employees, including 159 who have been devoting into welding area for over 15 years, we are serving customers worldwide with dozens of various types of precision equipment and a factory covering an area of 15000sqm. To establish modern management, we customized an ERP system which could ensure punctual delivery and offer process surveillance. We have accomplished more than 20 patents in automatic welding industry. We are capable of providing 4000 units specialized welding equipment annually.
