Small Circumferential Welder Seam Welding Weld Positioner 500A Max Current

Specifications

Certification :

CE/ISO9001

Packaging Details :

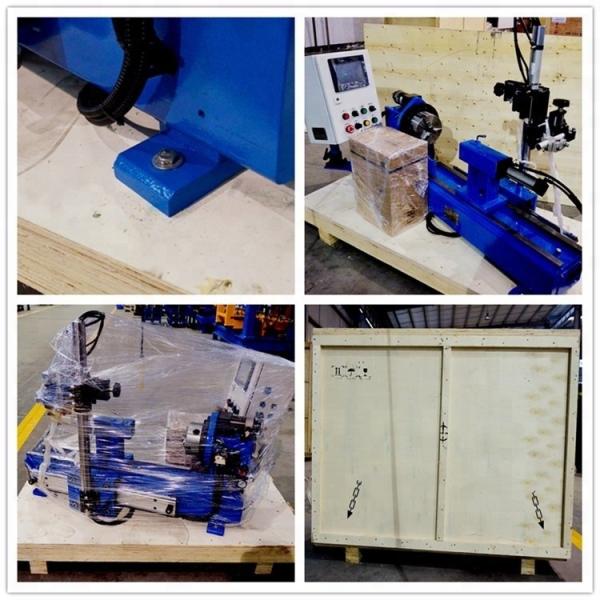

Wooden Box

Supply Ability :

10 Set/Sets per Month

Price :

100

Brand Name :

XioFiTec/Hanyan

Model Number :

XioFiTec/Hanyan

type :

Welding Positioner

condition :

New

place of origin :

Sichuan, China

brand name :

Hanyan Technology

usage :

circumferential seam welding

dimensions :

1600x800x1300mm

warranty :

1 Year

weight (kg) :

310 KG

After-sales Service Provided :

Overseas third-party support available

Weight :

310KG

Applicable Industries :

hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Construction works , Energy & Mining, Advertising Company

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

New Product 2020

Warranty of core components :

1 Year

Core Components :

Engine

Showroom Location :

None

Key Selling Points :

Low Maintenance Cost

Port :

any port in China

Description

Introduction

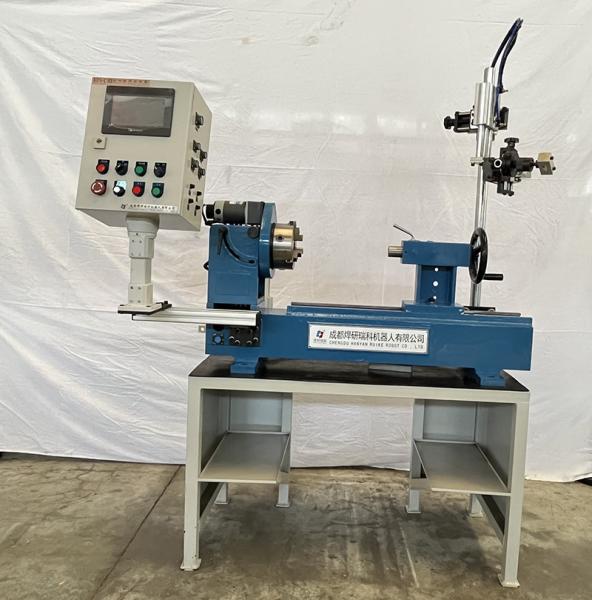

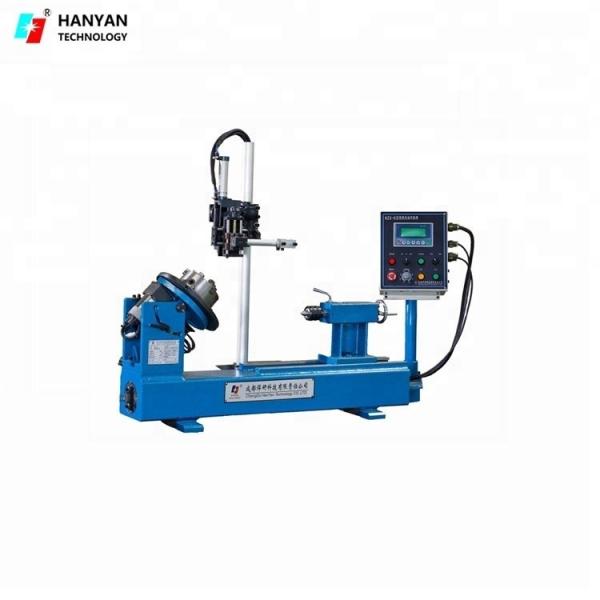

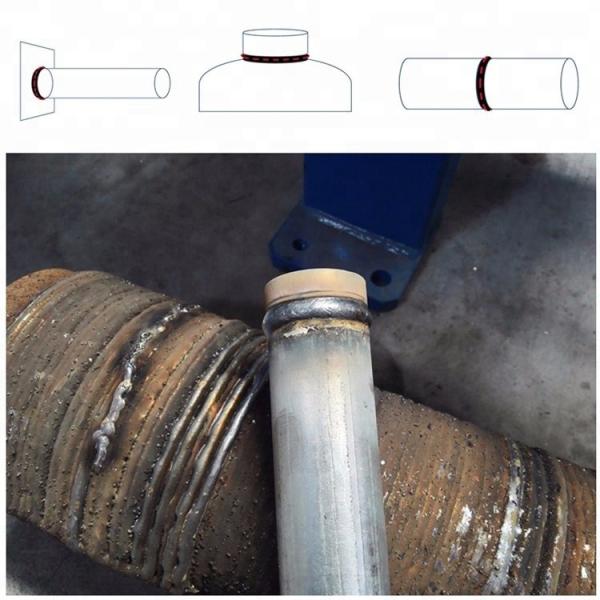

it's an universal auxiliary equipment for circumferential seam welding process. It apply to various welding process such as TIG (filler or without filler)/MIG/MAG/PAW when various welding power supply is applied. The equipment consists of rotating headstock, vertical beam and controller. Integrated structure makes it easy to collocate with various components and to install and dismount. It is mainly used to weld pipe, flange and disc-shaped workpiece.

Technical Parameters

Control power supply	Single phase 50Hz AC 200V
Welding power supply	Three phase 50Hz AC 380V
Workpiece thickness	according to bevel forms
Cycle seam outer diameter	200mm≥φ≥10mm
Headstock rotary speed	1~10 RPM
Workpiece rotation diameter	φ≤600mm
Spindle bore	φ≤50mm
Spindle output torque	≤72Nm
Load bearing	≤50Kg
Headstock positioning angle	0°,30°,45°,60°,90°
Max. welding current	500A
