Precision Automatic Welding Equipment Welding Lathe Metal Ball Arc Welders Customized

Specifications

Certification :

CE/ISO9001

Packaging Details :

Wooden Box

Supply Ability :

10 Set/Sets per Month

Price :

100

Brand Name :

XioFiTec/Hanyan

Model Number :

XioFiTec/Hanyan

condition :

New

machine type :

Welding Manipulator

place of origin :

Sichuan, China

brand name :

HANYAN TECHNOLOGY

warranty :

1 Year

weight (kg) :

310

voltage :

AC220V 10% 50/60Hz

current :

500A(Max.)

rated capacity :

Depends on welding source

rated duty cycle :

100%

dimensions :

1520*920*1550MM

usage :

Welding Automation

After-sales Service Provided :

Engineers available to service machinery overseas

Customization :

Available

Type :

Other

Weight :

310KG

Applicable Industries :

hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory

Showroom Location :

None

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

New Product 2020

Warranty of core components :

1 Year

Core Components :

Engine

Key Selling Points :

Low Noise Level

Port :

any port in China

Description

Product Description

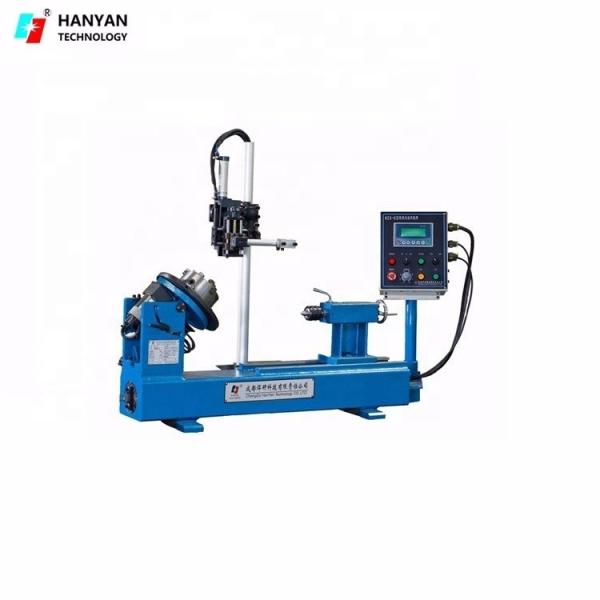

HGT-3C Precision Welding Lathe

Universality:
1. Can be used for TIG/MIG/MAG/PAW/SAW welding applications.
2. Can be used to weld Tubes/Pipes/Flanges/Cones and so on.
3. Can be used with Oscillator, Seam Tracker, Wire Feeder and other Function parts.

Detailed Images

Parameters

Item	Unit	HTC-3C	HF-300W	HF-300WS	HF-300L	HF-300LY
Max. workpiece’s length	mm	500	1200		-
Max. workpiece’s diameter	mm	350	550		600
Chuck’s working diameter	mm	10 - 120	10 - 200			-
Through-hole diameter	mm	30	50			-
Torch stroke(pneumatic)	mm	100				150
Tailstock stroke(pneumatic)	mm	-	150		-	-
Headstock rotating speed	RPM	1 - 10				0.6 - 6
Headstock angle	°	0°, 30°, 45°, 60°, 90°				-
Torch adjustment	mm	X: ± 30 mm Y:± 30mm Z: ± 30 mm
Max. welding current	A	500
Power input	V	AC 1 Phase 220V(±10%) 50Hz
Weight	kg	310	380	400	300	350
Package	CBM(m³)	1.45	2.39	2.39	1.08	1.37

What can be welded

Automation Process

Manual

Except weld(include load&unload, position, torch adjustment, parameter set etc. )

Automatic

Weld

Packing & Delivery

Chengdu Hanyan Technology Co., Ltd.

is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal/Circumferential Seam Welder, Welding Auxiliaries, Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
