Double Circumferential Welder Automatic PLC Control Butt Welding Machine
Double Circumferential Welder Automatic PLC Control Butt Welding Machine
Double Circumferential Welder Automatic PLC Control Butt Welding Machine
Double Circumferential Welder Automatic PLC Control Butt Welding Machine
Double Circumferential Welder Automatic PLC Control Butt Welding Machine
Double Circumferential Welder Automatic PLC Control Butt Welding Machine
Specifications
Certification :
CE/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
10 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
place of origin :
Sichuan, China
brand name :
Hanyan Technology
input voltage :
200(control) / 380(weld)
current :
500A(Max.)
dimensions :
2300*900*1500mm
usage :
For two seam welding
warranty :
1 Year
weight (kg) :
500 KG
After-sales Service Provided :
Engineers available to service machinery overseas
workpiece length :
≤1200mm
workpiece weight :
≤50kg
rotation speed :
1-10RPM
rotation diameter :
≤600mm
automation :
semi auto
control :
touch screen
laguage :
English/Russia
Power :
Depends on welding
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Showroom Location :
Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand
Key Selling Points :
Automatic
Port :
any port in China
Description

Introduction

1.1. Application:

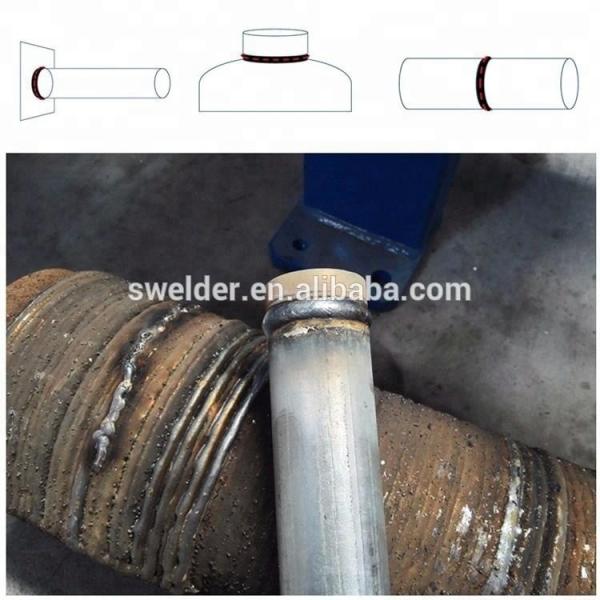

Easy to constitute an automatic double circumferential seam welding system with proper welding sources and welding gun to improve welding speed and quality. It’s mainly used to weld those workpiece with different materials, size, form and welding joint (butt joint, lap joint, lock joint etc.), such as air cylinders, fire drenchers, drive shafts, dampers, silencers, pipes, flanges and so on.

1.2. Components:

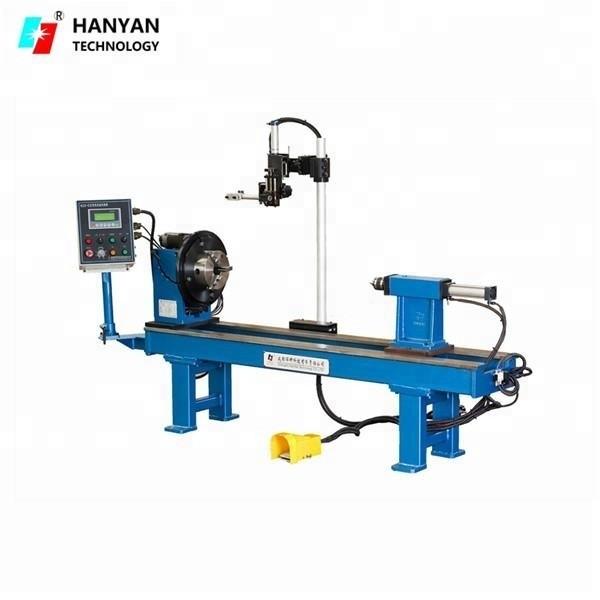

It consists of rotary headstock, pneumatic tailstock, lathe bed, 3-D adjusting mechanism (2 sets), pneumatic lifter (2 sets) and PLC controlling system. Combined structure is convenient for installation, and has a good mobility.

1.2.1. Lathe Bed: With guide rail, and the distance between headstock and tailstock is adjustable.

1.2.2. Rotating Headstock: Driven by DC gear motor, has stepless speed regulation function and welding current detection switch.

1.2.3. Pneumatic Tailstock: Change the distance between headstock and tailstock.

1.2.4. 3-D Adjusting Mechanism: Adjust torch position accurately.

1.2.5. Pneumatic Lifter: Lift up torch automatically.

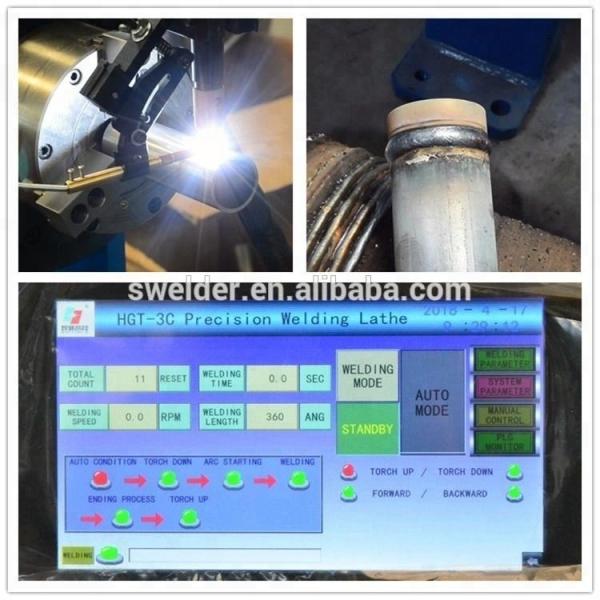

1.2.6. Control System: Advanced PLC controlling system, humanized operation interface, high degree automation, stable and reliable performance.

1.3. Welding Process:

1.3.1. Welding Mode: torch fixed, workpiece rotating. Automatic welding.

1.3.2. Welding Method: It can be used with argon arc welding machine (supporting the use of wire feeder), CO2/MAG/MIG welding machine, pulsing welding machine or other welding sources to form an automatic dual circumferential seam welding system.

Technical Parameters

Model

HF-300WS

Control power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

According to the form of opening

Workpiece diameter

200 mm≥φ≥10mm

Workpiece length

≤1200mm

Headstock rotating speed

1~10 r/ min

Workpiece rotation diameter

≤550mm

Spindle bore

φ≤50mm

Spindle output torque

≤72N·m

Workpiece weight

≤50Kg

Torch lifting height

100mm(pneumatic)

Tailstock slide stock

150mm(pneumatic)

Headstock adjustable angle

0°,30°,45°,60°,90°

Torch 3-D adjustable range

X:±30mm, Y:±50mm, Z:±30mm

Max. welding current

500A

Two welding processes performed at the same time.

Double Circumferential Welder Automatic PLC Control Butt Welding Machine

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS.

Parameters
Item Unit HTC-3C HF-300W HF-300WS HF-300L HF-300LY
Max. workpiece’s length mm 500 1200 -
Max. workpiece’s weight kg 30 50 250
Max. workpiece’s diameter mm 350 550 600
Chuck’s working diameter mm 10 - 120 10 - 200 -
Through-hole diameter mm 30 50 -
Torch stroke(pneumatic) mm 100 150
Tailstock stroke(pneumatic) mm - 150 - -
Headstock rotating speed RPM 1 - 10 0.6 - 6
Headstock angle ° 0°, 30°, 45°, 60°, 90° -
Torch adjustment mm X: ± 30 mm Y:± 30mm Z: ± 30 mm
Max. welding current A 500
Power input V AC 1 Phase 220V(±10%) 50Hz
Weight kg 310 380 400 300 350
Package CBM(m³) 1.45 2.39 2.39 1.08 1.37
Package

Double Circumferential Welder Automatic PLC Control Butt Welding Machine

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

Double Circumferential Welder Automatic PLC Control Butt Welding Machine

In our factory:

Double Circumferential Welder Automatic PLC Control Butt Welding Machine

Company Information

Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

Double Circumferential Welder Automatic PLC Control Butt Welding Machine
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
