SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
Specifications
Certification :
ISO 9001
Invoicing :
by actual weight
Supply Ability :
5000 tons per year
Technique :
Cold Rolled Hot Rolled
Delivery Time :
7-10days
Place of Origin :
CHINA
Price :
Negotiable
Processing Service :
Welding, Punching, Cutting, Bending, Decoiling
Application :
Industrial, Medical, Decoration, Construction etc
Brand Name :
WUXI SYLAITH SPECITAL STEEL
Process :
Hot Rolled,Cold Drawing
Surface :
BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Payment Terms :
L/C, T/T
Model Number :
200 Series 300 Series 400 Series
MOQ :
1 ton
Packaging Details :
Standard waterproof package
Description

SUS 304 Large-diameter Double-seam Welded Square Pipe For Transport Pipe



Product Description

304 double seam welded stainless steel pipe (304 Double Seam Welded Stainless Steel Pipe) is a stainless steel pipe made by forming a 304 stainless steel strip sheet and then welding two seams together. Due to the difficulty of meeting the size requirements with a single weld seam during the production of large-diameter pipe materials, the double seam welding process is adopted.




Production Name
Stainless Steel Square Tubes/Pipes
Product Standard
ASTM A213, ASTM A312, ASTM A789, ASTM A790
Material Grade
Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416,
410S, 430, 347H, 2Cr13, 3Cr13 etc

300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347

200series:201,202,202cu,204

400series:409,409L,410,420,430,431,439,440,441,444

Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc

Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304

Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
Thickness
0.25-10mm
Length
1-12m or as customized
Size (square shape)
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,
36×23,40×20,
50×20,60×15,75×45,
80×60,95×45,100×60,150×100
mm or as customized
Size(oval shape)
30×15,80×40 mm or as customized
Process Method
Polished, cold drawn, annealed with nitrogen protection, ultrasonic,automatic shape etc
Finishing
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlumE : HL brushed & mirror (two kinds of finishing for one pipe)
Surface
BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
Packing
Standard export sea-worthy packing
Delivery Time
10-25 days after deposit.
Advantage
Stainless steel pipe can be made accordingto the customers requirements.
Quality assured, Price competitive, Deliery fast.


Chemical composition
Grade C Si Mn Cr Ni
304 ≤0.07 ≤1.00 ≤2.0 18.00~20.00 8.00~10.50
304L ≤0.030 ≤1.00 ≤2.0 18.00~20.00 9.00~13.00
310S ≤0.08 ≤1.00 ≤2.0 24.00~26.00 19.00~22.00
316 ≤0.08 ≤1.00 ≤2.0 16.00~18.00 10.00~14.00
316L ≤0.03 ≤1.00 ≤2.0 16.00~18.00 12.00~15.00
321 ≤0.08 ≤1.00 ≤2.0 17.00~19.00 9.00~13.00
904L ≤0.02 ≤1.00 ≤2.0 19.00~23.00 23.00~28.00
2205 ≤0.03 ≤1.00 ≤2.0 22.00~23.00 4.5~6.5
2507 ≤0.03 ≤0.08 ≤1.20 24.00~26.00 6.00~8.00

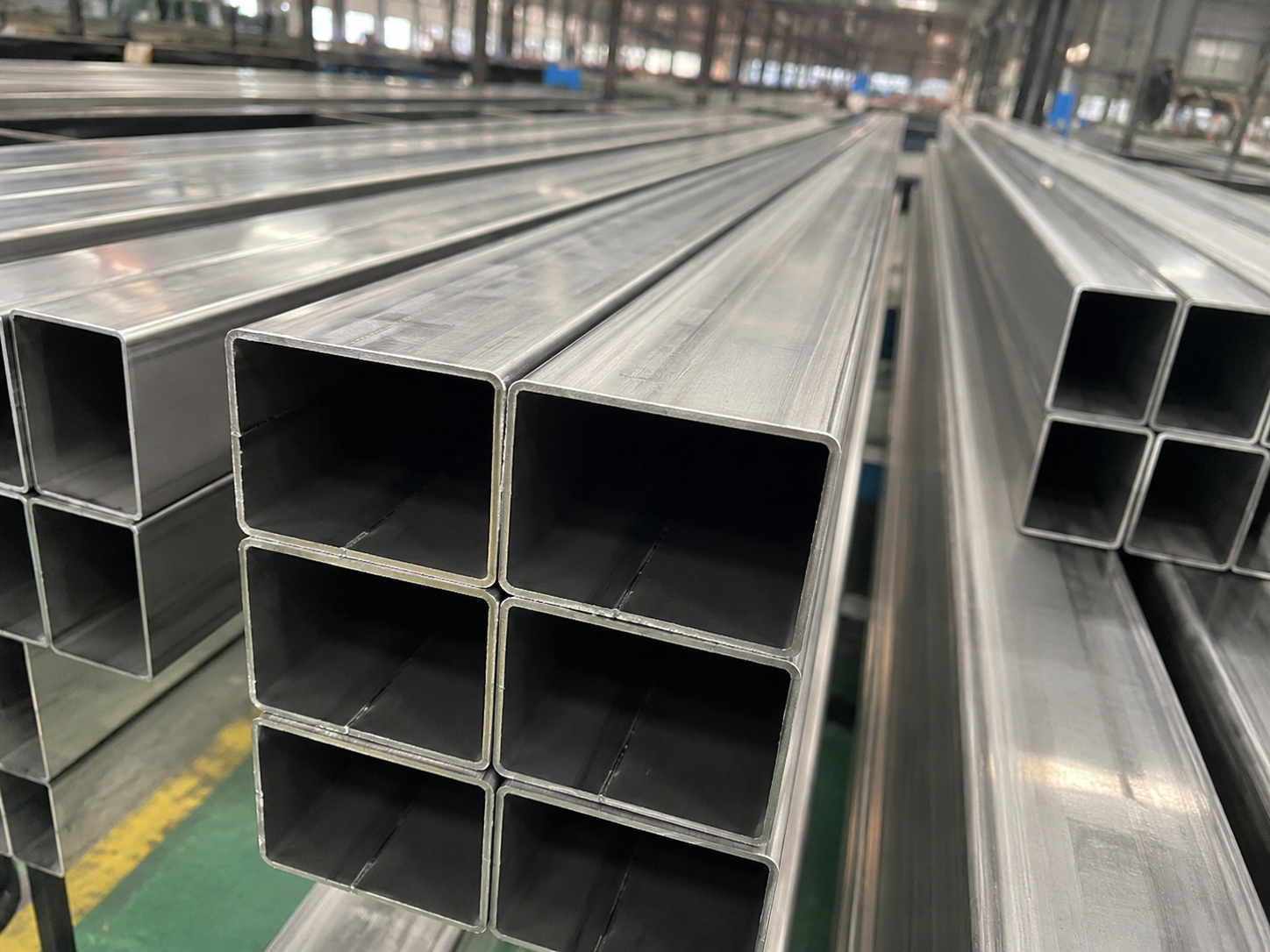

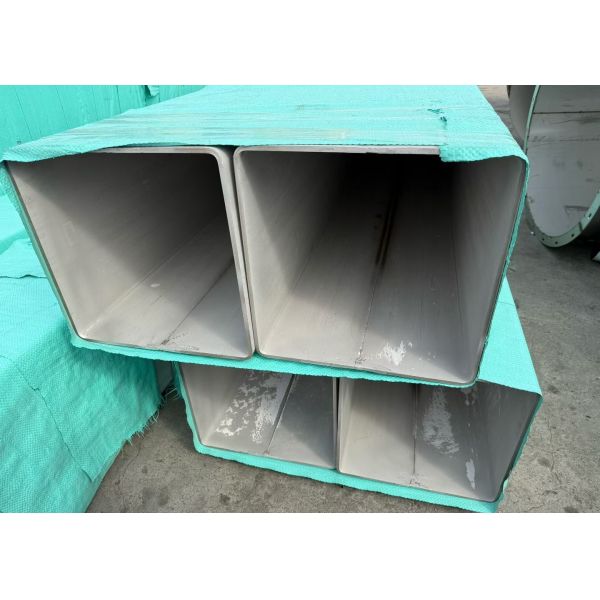

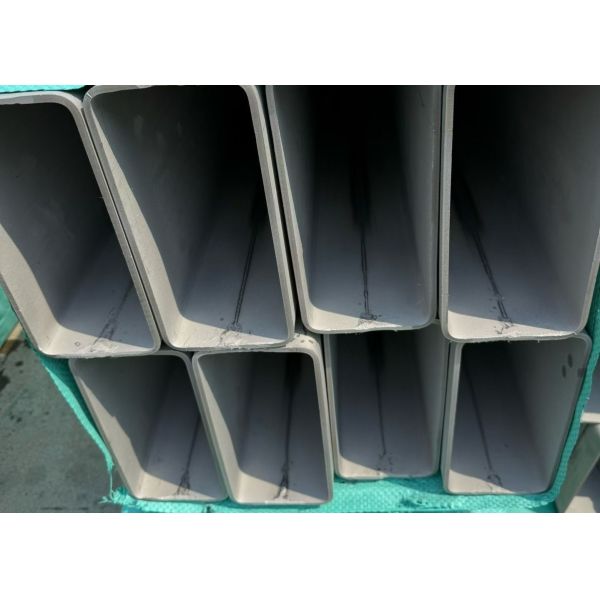

Product Show


SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe

SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe





Surface



SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe



Application


SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe
SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe




Certificates




SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe


Packing and Shipping

SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe

SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe

SUS 304 Large-diameter Double-seam Welded Stainless Steel Square Tube for Transport Pipe

F&Q

Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: HOW TO VISIT YOUR FACTORY?
A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
