VOCs Combined Sampling Tube EPA TO-17 Applicable
VOCs Combined Sampling Tube EPA TO-17 Applicable
Specifications
MOQ :
1
Delivery Time :
3 days
Certification :
ISO 9001,BV,SGS,TUV,CE
Material :
304 Stainless Steel
Model Number :
Stainless steel pipe
Standard :
HJ734-2014,EPA TO-17,EN ISO 16017,GB50325-2020,GB/T18883-2002
Price :
69USD
Supply Ability :
10000000
Brand Name :
Jinxi Pipe
Product Name :
VOCs sampling tube, stainless steel adsorption tube, thermal desorption tube, combined sorbent tube, ¼ inch × 3½ inch, Tenax TA, Carbopack, Carboxen, HJ734-2014, EPA TO-17, TVOC monitoring, ambient air sampling, industrial emission monitoring, brass cap, c
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Box
Place of Origin :
China
Cap Type :
Copper
Description

VOCs Combined Sampling Tube EPA TO-17 Applicable

Specifications

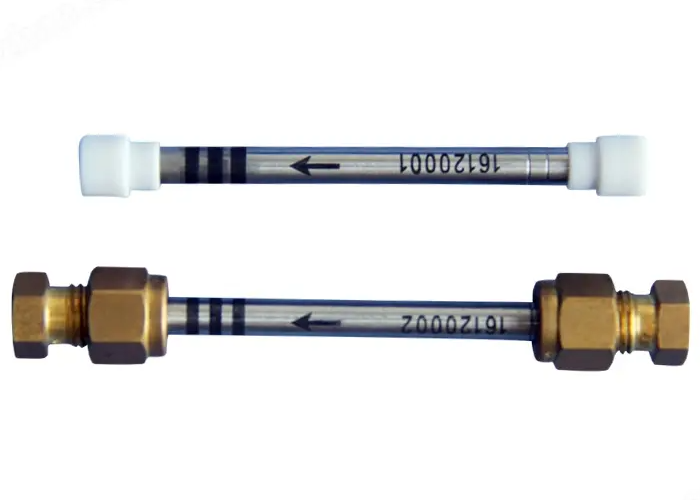

Our VOCs Combined Sampling Tube (¼″ outer diameter × 3½″ length, stainless steel with copper/brass storage caps) is specifically engineered to meet the rigorous requirements of U.S. EPA Compendium Method TO-17 for the determination of volatile organic compounds (VOCs) in ambient air.

EPA Method TO-17 specifies active sampling of VOCs onto sorbent tubes, followed by thermal desorption and gas chromatography–mass spectrometry (GC–MS) analysis. This industry-standard ¼″ × 3½″ format ensures seamless compatibility with all major thermal desorption systems, including PerkinElmer, Markes International, CDS Analytical, Dani, Shimadzu, and domestic thermal desorbers.


Available in multiple sorbent configurations—including single-bed, dual-bed, and multi-bed combinations—our TO-17 compliant sampling tubes deliver exceptional performance for ambient air monitoring, industrial hygiene, soil gas assessment, and regulatory compliance programs worldwide.

VOCs Combined Sampling Tube EPA TO-17 Applicable

VOCs Combined Sampling Tube Key Specifications


Parameter Specification
Product Name VOCs Combined Sampling Tube / VOCs Adsorption Tube
Material 304 Stainless Steel
Outer Diameter ¼ inch (6.35 mm)
Length 3½ inches (89 mm)
Surface Roughness Ra ≤ 0.4 μm (available upon specification)
Sealing/Cap Type Brass/Copper Storage Caps (optional PTFE caps also available)
Packaging 10, 12 tubes per box
Conditioning Pre-conditioned / pre-aged options available



Sorbent Configurations

VOCs Combined Sampling Tube EPA TO-17 Applicable

Our VOCs combined sampling tubes are available in multiple sorbent bed configurations to accommodate different VOC target compound ranges and regulatory methods:


Single-Bed Configuration

  • Tenax TA (200 mg): 2,6-diphenyl-p-phenylene oxide porous polymer; ideal for medium to high-boiling VOCs, benzene, and TVOC detection
  • Tenax GR: Tenax/graphite composite; extended range to lower-boiling compounds
  • Activated Carbon: Coconut shell activated carbon for broad-spectrum VOC capture


Dual-Bed Combination (Combination 1 & 2)

  • Combination 1: Tenax GR (30 mm) + Carbopack B (25 mm) – suitable for a wide range of VOCs including aromatic hydrocarbons
  • Combination 2: Carbopack B (30 mm) + Carboxen 1000 (10 mm) – optimized for both volatile and semi-volatile compounds


Triple-Bed Combination (Combination 3)

  • Carbopack C (13 mm) + Carbopack B (25 mm) + Carboxen 1000 (13 mm) – comprehensive coverage from C3 to C16 compounds

Regulatory & Method Compliance

Our VOCs combined sampling tubes are designed and manufactured to meet the stringent requirements of major international and national standards:

Standard/Method Application
HJ734-2014 Stationary source emissions – Determination of VOCs by solid phase adsorption-thermal desorption/GC-MS
EPA TO-17 Determination of VOCs in ambient air using sorbent tubes
EN ISO 16017 Indoor, ambient, and workplace air – Sampling and analysis of VOCs by sorbent tube/thermal desorption/GC
GB50325-2020 Indoor environmental pollution control standard for civil buildings
GB/T18883-2002 Indoor air quality standard



VOCs Combined Sampling Tube Applications

  • Ambient Air Monitoring
  • Routine ambient air quality monitoring for VOCs
  • Urban and regional air pollution assessment
  • Photochemical Assessment Monitoring Stations (PAMS) – 57 ozone precursors (C₂–C₁₂ aliphatic and aromatic VOCs)
  • 65-compound VOC mixtures for comprehensive air toxics screening
  • Soil Gas & Vapor Intrusion
  • Sub-slab soil vapor sampling
  • Soil vapor probe sampling for VOC characterization
  • Contaminated site assessment and remediation monitoring
  • Industrial Hygiene
  • Workplace air monitoring
  • Occupational exposure assessment
  • Industrial facility fence-line monitoring
  • Regulatory Compliance
  • U.S. EPA Method TO-17 compliance monitoring
  • State and local air quality management programs
  • Environmental impact assessments


VOCs Combined Sampling Tube EPA TO-17 Applicable

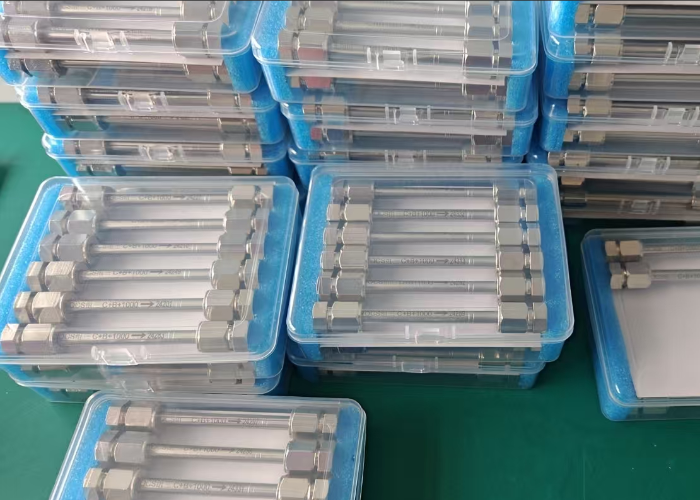

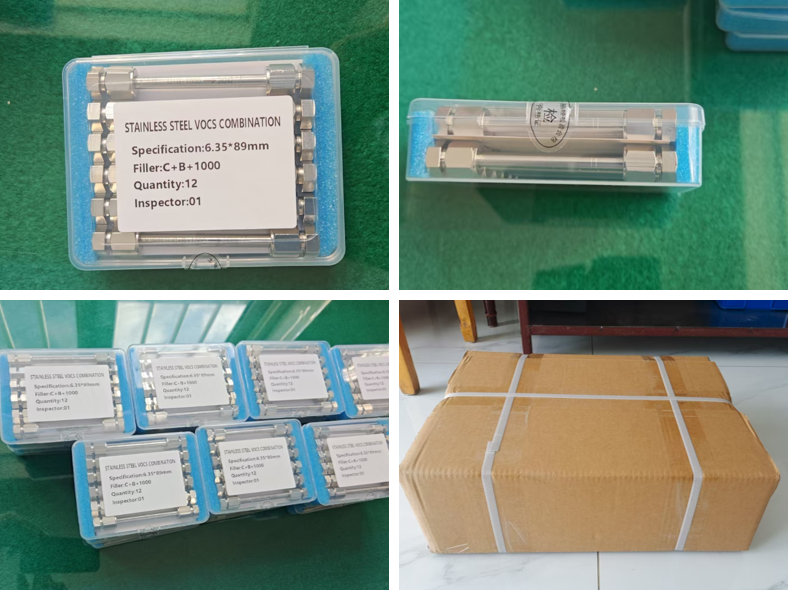

VOCs Combined Sampling Tube Packing & Loading
10 or 12 Pcs/Box

VOCs Combined Sampling Tube EPA TO-17 Applicable


Why Choose Us?

  • Industry Expertise: Years of specialized experience in environmental monitoring consumables manufacturing
  • Quality Assurance: Rigorous quality control at every production stage to ensure batch-to-batch consistency
  • Regulatory Compliance: Products designed to meet the latest international and Chinese standards
  • Customization Capability: Flexible manufacturing to accommodate specific customer requirements
  • Competitive Pricing: Premium quality at cost-effective price points


Contact Us
For technical specifications, customized solutions, or to place an order, please contact our sales team. We are committed to providing professional products and responsive service to support your VOCs monitoring needs.
