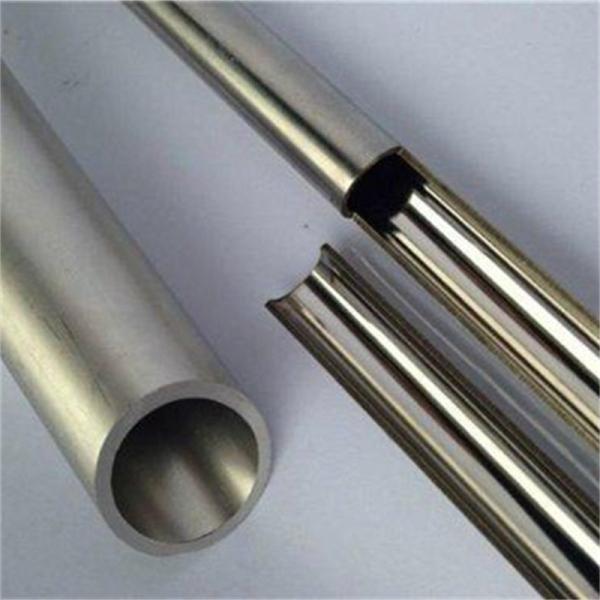

ASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube
ASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube


Advantages:

The ASME SA269 TP304 Bright Annealed Tubes can perform well in caustic solutions where chloride and fluoride are absent. They also have excellent forming and welding characteristics and show a great performance in corrosive environments. The seamless tube can also withstand higher pressure.

The ASME SA269 TP304 is an austenitic grade of steel that covers standard seamless and welded configurations. The ASME SA269 TP304 Tube is designed with a superior composition of nickel and chromium with other constituting alloys, giving these tubes enhanced resistance against corrosive and oxidative media.

ASME SA269 TP304 Stainless Steel Tubing has a density of 8g/cm³ with a melting point of 1400 degrees C. These tubes has excellent mechanical properties and can work well in different pressures and temperatures.


Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
TP304 min. – – – – – 18.0 – 8.0 –
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10



Tolerance Of ASTM A269 TP304 Tube

Size
Inches
Tolerances, Inches
OD,
Inches
Wall
Ovality
2 x Tol., In.
Cut Length
(b), In.
Less than 1/2
±0.005
±15%
——
+1/8
–0
Over 1/2 to 1-1/2
±0.005
±10%
–0.065
Over 1-1/2 to 3-1/2
±0.010
±10%
–0.095
+3/16
–0
Over 3-1/2 to 5-1/2
±0.015
±10%
–0.150
Over 5-1/2 to 8
±0.030
±10%
——



TP304 Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
TP304 515 205 40 92 201


Physical Properties

Grade Density (kg/m3)
Elastic Modulus (GPa)
Mean Coefficient of Thermal Expansion (m/m/0C)
Thermal Conductivity (W/m.K)
Specific Heat 0-1000C (J/kg.K)
Electrical Resistivity (n.m)
0-1000C
0-3150C
0-5380C
at 1000C
at 5000C
304/L/H
8000
193
17.2
17.8
18.4
16.2
21.5
500
720


Equivalent Material For 304 Grade Stainless Steel

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304



Applications

-Food processing equipment, particularly in beer brewing, milk processing & wine making.
-Kitchen benches, sinks, troughs, equipment and appliances
-Architectural panelling, railings & trim
-Chemical containers, including for transport
-Heat Exchangers
-Woven or welded screens for mining, quarrying & water filtration
-Threaded fasteners
-SpringsASME SA269 TP304 1.4301 Austenitic Seamless Bright Annealed Tube
