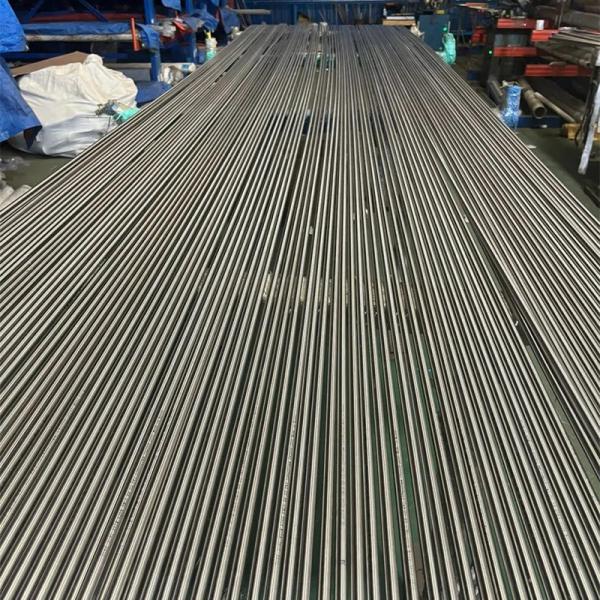

ASTM A269 TP316L / UNS S31603 BRIGHT ANNEALED STAINLESS STEEL TUBE
ASTM A269 TP316L / UNS S31603 BRIGHT ANNEALED STAINLESS STEEL TUBE
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASTM A269 TP316L / UNS S31603 BRIGHT ANNEALED STAINLESS STEEL TUBE

Bright Annealing is a process in which the stainless steel surface is made reflective like a mirror. This type of Annealing is produced by heat-treating steel with a controlled atmosphere furnace. ASTM A269 can be buffed to attain a better reflective finish and is used in reflective surface requiring applications. It should be taken into consideration that during Bright Annealing it is necessary for the metal surfaces to be clean and free from foreign contamination for maximum effect.

316L is a less carbon variant of 316. Alloy 316L is generally used when welding is required to ensure maximum corrosion resistance. As 316L consists of lower carbon content it results in lesser carbide precipitation which is a result of welding. Our products are renowned for the amazing quality and finishing that they have on offer. Moreover, our products are known to offer maximum utility even under harsh usage, as we put our products through various quality control measures.

Stainless Steel 316L Bright Annealing Pipe & Tube Specification:
Standard JIS, ASTM, GB, DIN, EN, AISI
Specifications ASTM A312, A249, A269, A270, DIN 11850 Series 1 and Series 2, 3A
Thickness Range 0.25-2mm
Outer Diameter 3-165.2mm
Material 300 & 400 series
Type Seamless, Welded, ERW
Finish Bright Annealed finish inside and outside

TP316L Bright Annealed Tube Equivalent Grades:

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
SS 316L S31603 1.4404 1.4435 Z3CND17‐11‐02 Z3CND18‐14‐03 X2CrNiMo17-12-2 X2CrNiMo18-14-3 SUS 316L 316S11 / 316S13 03X17N14M3 03X17N14M2

TP316L Bright Annealed Tube Chemical Composition:
Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 16 - 18 2 - 3 10 - 14 68.89 min

TP316L Bright Annealed Tube Mechanical Properties:
Tensile Strength Yield Strength (0.2%Offset) Elongation Hardness
Rockwell B (HR B) max Brinell (HB) max
Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 % 95 217

Applications:

  • Food processing equipment, particularly in beer brewing, milk processing & wine making.

  • Kitchen benches, sinks, troughs, equipment and appliances

  • Architectural panelling, railings & trim

  • Chemical containers, including for transport

  • Heat Exchangers

  • Woven or welded screens for mining, quarrying & water filtration

  • Threaded fasteners

  • Springs


ASTM A269 TP316L / UNS S31603 BRIGHT ANNEALED STAINLESS STEEL TUBE
