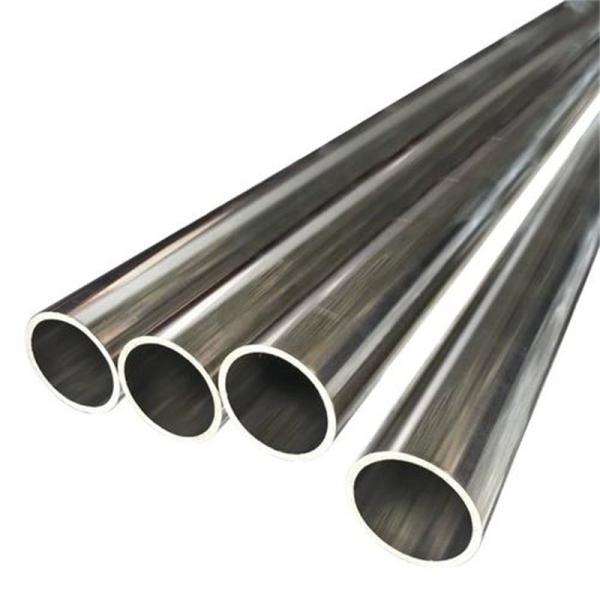

STAINLESS STEEL WELD TUBE A249 TP316L BRIGHT ANNEALED CONDENSER
STAINLESS STEEL WELD TUBE A249 TP316L BRIGHT ANNEALED CONDENSER
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

STAINLESS STEEL WELD TUBE A249 TP316L BRIGHT ANNEALED CONDENSER

Abstract of ASTM A249

This guide specifies standard specification for nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels with various grades intended for such use as a boiler, superheater, heat exchanger, or condenser tubes. Heat and product analysis shall conform to the requirements as to chemical composition for carbon, manganese, phosphorous, sulfur, silicon, chromium, nickel, molybdenum, nitrogen, copper, and others. All materials shall be furnished in the heat-treated condition in accordance with the required solution temperature and quenching method. When the final heat treatment is in a continuous furnace, the number of tubes of the same size and from the same heat in a lot shall be determined from the prescribed size of the tubes. The material shall conform to the prescribed tensile and hardness properties such as tensile strength, yield strength, elongation, and Rockwell hardness number. The steel shall undergo mechanical tests such as tension test, flattening test, flange test, reverse-bend test, hardness test, and hydrostatic or nondestructive electric test. The grain size of different grades of steel shall be determined in accordance with the test methods.

Weld tube characteristics:

Production characteristics: Lightweight production equipment, low investment, fast building material speed, simple welding method, wide product specification range, high dimensional accuracy, small wall thickness deviation, smooth surface, and high yield. In mass production, the cost of welded pipes is more than 20% lower than that of seamless pipes.
Advantages: During the production process, stainless steel welded pipes are uniformly squeezed and then subjected to online bright solution annealing, resulting in a very smooth surface. A smooth surface is not easy to scale and has the function of preventing scaling. This is beneficial for heat dissipation and does not require frequent cleaning, saving time, effort, and money. Secondly, when welding pipes, the advantage of uniform wall thickness in the deep processing of sheet metal products is relatively good, and it can also be arbitrarily sized with high accuracy. Once again, stainless steel material has the characteristic of corrosion resistance and has a longer service life.

Specification

ASTM A249/A249M-18a Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes

Specifications ASTM A213, A249, A270, A269 / ASME SA213, SA249, SA270, A269
Standard ASTM, ASME and API
Seamless Tubes Range 1/2"OD - 12"OD
Welded Tubes Range 1/2"OD - 12"OD, Guage: 25 SWG - 10 SWG
Outside Diameter 3.00 mm - 219.10 mm, 6.35 mm O.D to 114.3 mm O.D
Length Single Random, Double Random & Required Length
Thickness 0.40 mm - 12.70 mm, 0.8 mm to12.7 mm
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type Seamless, Welded, ERW
Form Round Tubes, Square Tubes, Rectangular Tube
End Plain End, Beveled End, Treaded

SS316L Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS316L min.
max.		 -
0.03		 -
2.0		 -
0.75		 -
0.045		 -
0.03		 16.0
18.0		 2.00
3.00		 10.0
14.0		 -
0.10

Mechanical Properties

Grade Tensile Strength (MPa) min ield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40 95 217

Physical Properties

Grade Density
(kg/m3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100°C
(J/kg.K)		 Elec Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C At 100°C At 500°C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 7

Applications

  • 1. Food preparation equipment particularly in chloride environments.
  • 2. Laboratory benches & equipment.
  • 3. Coastal architectural panelling, railings & trim.
  • 4. Boat fittings.
  • 5. Chemical containers, including for transport.
  • 6. Heat Exchangers.
  • 7. Woven or welded screens for mining, quarrying & water filtration.
  • 8. Threaded fasteners.
  • 9. Springs
