Pickled 88.9mm Stainless Steel Pipe ASTM A213 TP321 1.4541 08X 18H10T Customized
Pickled 88.9mm Stainless Steel Pipe ASTM A213 TP321 1.4541 08X 18H10T Customized
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASTM A213 TP321 1.4541 08X 18H10T Stainless Steel Seamless Pickled Pipe Low-Temperature Service

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

Stainless Steel 321 is an essential austenitic 18/8 steel (Grade 304) that is stabilized by the addition of Titanium (321). It is chosen for its resistance to intergranular corrosion after being exposed to temperatures within the carbide precipitation range of 425-850°C. SS 321 is widely used in applications with temperatures up to approximately 900°C, as it offers high strength, resistance to scaling, phase stability, and resistance to subsequent aqueous corrosion. SS 321H, on the other hand, is a modified version of SS 321 with a higher carbon content, resulting in improved strength at high temperatures.

Chemical Composition:

SS 321 SS 321H
Ni 9 – 12 9 – 12
Cr 17 – 19 17 – 19
C 0.08 max 0.04 – 0.10
N 0.10 max
Fe Balance
Mn 2 max 2 max
Si 0.75 max 0.75 max
S 0.03 max 0.03 max
P 0.045 max 0.045 max
Ti 5xC min 4xC min
0.60% max 0.60% max

Mechanical Properties:

Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35%

Dimensions:

O.D : 1/8" NB TO 32" NB , (10.29MM-812.80MM)

W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.

l Annealed and Picked

l 100% PMI Tested

l EN10204.3.1B Mill Test Certificate

l Third Party Inspection Accepted

Packing:

With plastic caps to both ends, wrapped with Poly bags, packed into bundles or plywood boxes as required.

Applications:

Oil Gas

Heat Exchanger

Condenser

Chemical

Boiler

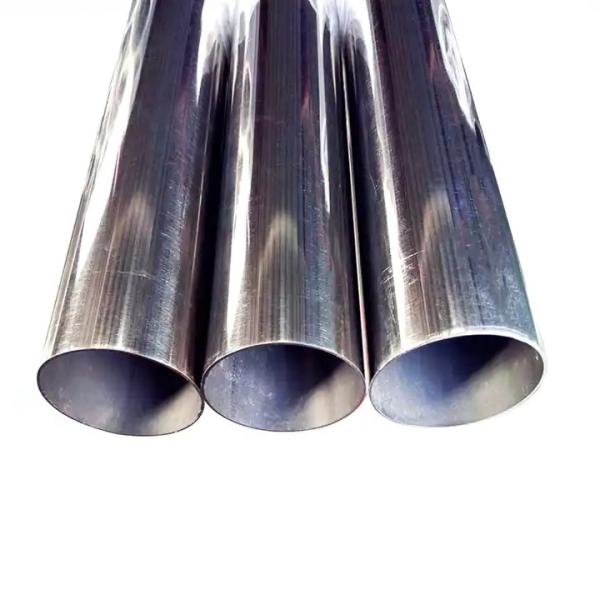

Detail Images:


Pickled 88.9mm Stainless Steel Pipe ASTM A213 TP321 1.4541 08X 18H10T Customized
