ISO9001 Stainless Steel Seamless Pipe ASME SB677 ASTM B677 TP904L UNS N08904
ISO9001 Stainless Steel Seamless Pipe ASME SB677 ASTM B677 TP904L UNS N08904
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L 904
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASME SB677, ASTM B677 TP904L (UNS N08904) Stainless Steel Seamless Pipe

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

TP904L is a non-stabilised low carbon high alloy austenitic stainless steel. The addition of copper to this grade gives it greatly improved resistance to strong reducing acids, particularly sulphuric acid. It is also highly resistant to chloride attack - both pitting / crevice corrosion and stress corrosion cracking. This grade is non-magnetic in all conditions and has excellent weldability and formability. The austenitic structure also gives this grade excellent toughness, even down to cryogenic temperatures. 904L does have very substantial contents of the high cost ingredients nickel and molybdenum. Many of the applications in which this grade has previously performed well can now be fulfilled at lower cost by duplex stainless steel 2205 (S31803 or S32205), so it is used less commonly than in the past.

Chemical Composition:


Grade		 C Mn Si P S Cr Mo Ni Cu
TP904L min.
max.		 -
0.020		 -
2.00		 -
1.00		 -
0.045		 -
0.035		 19.0
23.0		 4.0
5.0		 23.0
28.0		 1.0
2.0

Mechanical Properties:


Grade		 Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) Brinell (HB)
904L 490 220 35 70-90 typical -
Rockwell Hardness value range is typical only; other values are specified limits.

Physical Properties:


Grade		 Density
(kg/m3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (m/m/C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100C
(J/kg.K)		 Elec Resistivity
(n.m)
0-100C 0-315C 0-538C At 20C At 500C
TP904L 8000 200 15 - - 13 - 500 850

Applications:

Typical applications include

Processing plant for sulphuric, phosphoric and acetic acids

Pulp and paper processing

Components in gas scrubbing plants

Seawater cooling equipment

Oil refinery components

Wires in electrostatic precipitators

Detail Images:

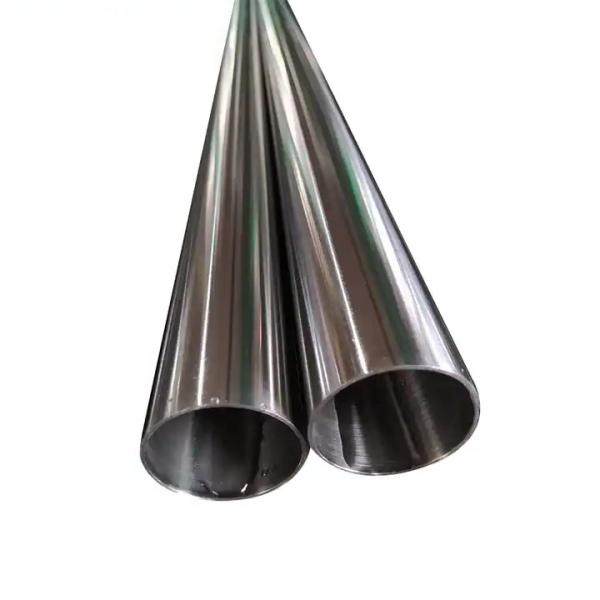

ISO9001 Stainless Steel Seamless Pipe ASME SB677 ASTM B677 TP904L UNS N08904
