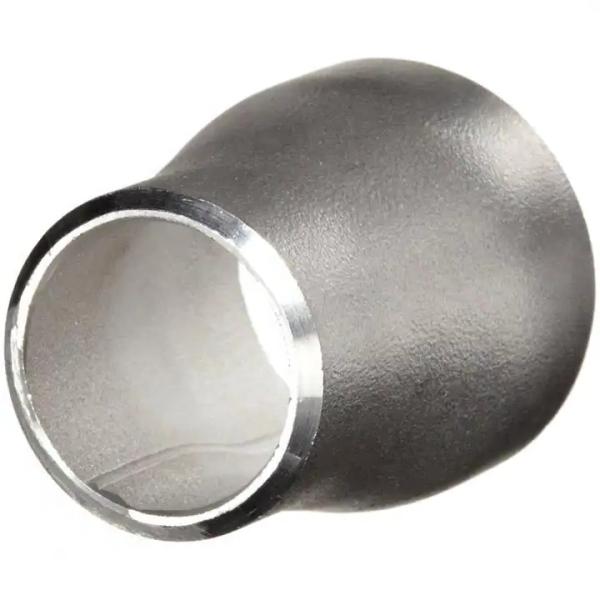

B16.9 Stainless Steel Pipe Fittings ASTM A403 WP304L S30403 Concentric Reducer
B16.9 Stainless Steel Pipe Fittings ASTM A403 WP304L S30403 Concentric Reducer
Specifications
Brand Name :
Shangle
Model Number :
stainless steel pipe fittings
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
MOQ500kg
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
9999
Delivery Time :
7-15 working days after receiving payment
Packaging Details :
In wooded cases or pallets,or as for clients requirement
Port :
Ningbo
Size :
1/8”NB To 4”NB (Socketweld & Screwed-Threaded)
Type :
Screwed-Threaded Fittings
Package :
Seaworthy Standard Package
Price Terms :
FOB,CIF,CFR,EXW
Shape :
Equal
Connection :
Female/Male
Degree :
45°，90°，180°
Description

SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

ASTM A403 WP304L Fittings come under the standard ASME B16.9 and diameters ranging from ½ inches to 48 inches. The material has 18% chromium and 8% nickel in the composition and has good corrosion resistance and strength. The ASTM A403 WP304L Fittings have high operating temperature range up to 870 degrees Celsius. So they can be used in high heat applications. The low carbon content in the material makes it better for welding applications.

Buttweld Concentric Reducer Specifications

Outside Diameter (OD) Seamless Pipe Concentric Reducer ( 1/2″～24″), ERW / Welded / Fabricated Pipe Concentric Reducer (1/2″～48″)
Dimensions ASME/ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, ASME B16.28
Wall Thickness SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
Bending Radius R=1D – 10D, 15D, 20D
Product’s Angle Concentric Reducer
Important Grades ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Production Materials Stainless Steel, Alloy Steel, Carbon Steel, Duplex, Nickel Alloys, Cupro Nickel, Low Temperature Steel
SS Melting Points 1400-1450°C (WP304, WP304L), 1390-1440 °C (WP316L), 1370 – 1400 °C (WP316)

Chemical Composition and Mechanical Property for 304L

Steel Grade Chemical Composition Mechanical Performance
C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr N Mo Tensile Strength
(Min)		 Yield Strength
(Min)
Mpa Mpa
304L 0.03 0.75 2.00 0.045 0.03 8.0–12.0 18.0–20.0 0.1 / 485 170

Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Applications:

-Food processing equipment

-Equipment and appliances

-Architectural railings

-Pharmaceutical and chemical process equipment

-Heat exchangers

-Threaded fasteners

-Springs

-Industrial fabrications

Stainless steel seamless butt welding inox pipe fitting

Type

Pipe elbow, tee, reducer, cap, stub end, bends etc.

Size

1/2"-24" seamless, 26"-60" welded

Standard

ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.

Wall thickness

SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.

Elbow

30° 45° 60° 90° 180°,etc

Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D, 20D etc.

End

Bevel end/BE/buttweld

Surface

Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,

shinning

Material

Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,

A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,

1.4541, 254Mo and etc.

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,

UNS32760, 1.4462,1.4410,1.4501 and etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,

C22, C-276,Monel400, Alloy20 etc.
