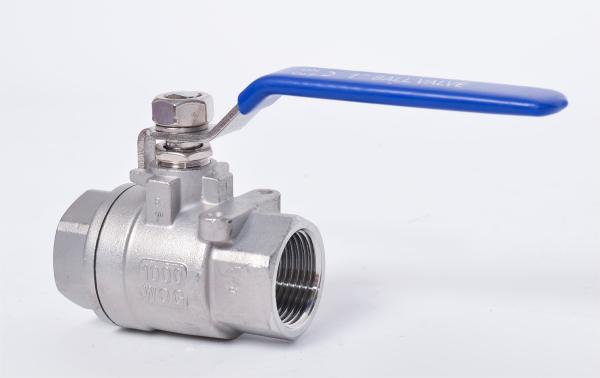

​Female Threaded SUS304 2PC Ball Valve Stainless Steel Corrosion Resistant
​Female Threaded SUS304 2PC Ball Valve Stainless Steel Corrosion Resistant
​Female Threaded SUS304 2PC Ball Valve Stainless Steel Corrosion Resistant
​Female Threaded SUS304 2PC Ball Valve Stainless Steel Corrosion Resistant
Specifications
Brand Name :
Shangle
Model Number :
valve
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
9999
Delivery Time :
7-15workdays
Packaging Details :
Woven Packing
Port Size :
1/2"-10"
Temperature of Media :
Normal Temperature
Application :
General
Customized support :
OEM, ODM
Description

​Female Threaded SUS304 Ball Valve Stainless Steel Corrosion Resistant

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description:

A valve is a pipeline accessory used to open and close pipelines, control flow direction, regulate and control the parameters (temperature, pressure, and flow) of the conveying medium. According to their functions, they can be divided into shut-off valves, check valves, regulating valves, etc.
Valves are control components in fluid conveying systems that have functions such as cutoff, regulation, flow guidance, prevention of backflow, pressure stabilization, diversion, or overflow pressure relief. Valves used in fluid control systems, ranging from the simplest globe valves to various valves used in extremely complex self-control systems, have a wide variety of varieties and specifications.
Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media. Valves are further divided into cast iron valves, cast steel valves, stainless steel valves (201, 304, 316, etc.), chromium molybdenum steel valves, chromium molybdenum vanadium steel valves, duplex steel valves, plastic valves, non-standard customized valves, etc.

Female Threaded (NPT, BSPT) Stainless Steel (SUS304) Ball Valve Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308


Main Parts and Materials


1		 Cap CF8/CF8M 7 Stem SS316/SS304
2 Gasket PTFE 8 Packing PTFE
3 Seat PTFE 9 Gland SS304/SS
4 Ball SS316/SS304/SS 10 Handle SS201
5 Body CF8/CF8M 11 Spring Washer SS304/SS
6 Thrust Washer PTFE 12 Stem Nut SS304/SS

Detail Images:

​Female Threaded SUS304 2PC Ball Valve Stainless Steel Corrosion Resistant​Female Threaded SUS304 2PC Ball Valve Stainless Steel Corrosion Resistant
