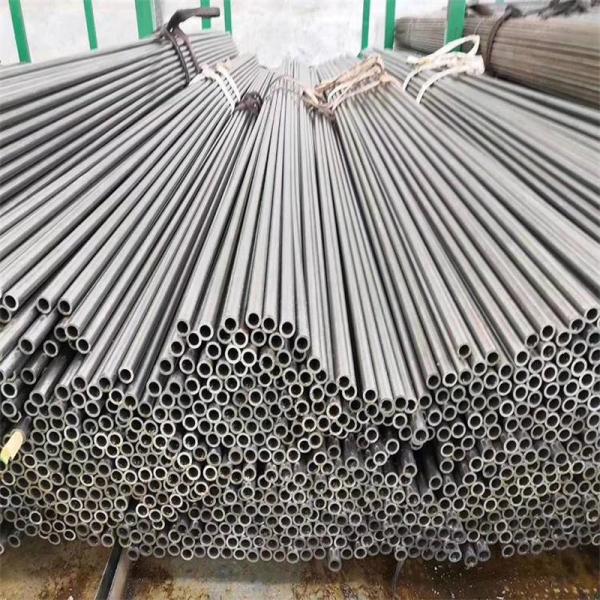

ASTM A213 TP316L TP304 TP304L Stainless Steel Seamless Heat Exchanger Tube
ASTM A213 TP316L TP304 TP304L Stainless Steel Seamless Heat Exchanger Tube
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASTM A213 TP316L TP304 TP304L Stainless Steel Seamless Heat Exchanger Tube

ASTM A213 TP316L Stainless Steel Seamless Tubes are pure stainless steel Tubes. They are used to natural gas & oil plant, water treatment, chemical industry and other industries. ASTM A213 TP316L is a grade belonging to heat exchanger or high-pressure tubes that are designed with TP316L austenitic stainless steel. ASTM A213 TP316L Stainless Steel Seamless Tube is manufactured with a superior chemical composition of nickel, chromium, and molybdenum. ASTM A213 TP316L has more toughness but less strength compared to the TP316 pipes. ASTM A 213 TP316L Stainless Steel Tube could be produced under electric resistance weld, electric fusion weld or by cold drawing.

Specifications:

Standard ASTM A213 / ASME SA 213
Shapes Round, Straight, "U" Shape, Coiled
Manufacturing Type Seamless / ERW / Welded / Fabricated
Delivery Condition Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF
Surface Finish As Per Customer's Request
Thickness Range SCH 5 To SCH XXS
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Ends Plain End, Beveled End, Treaded
Processing Service Bending, Welding, Decoiling, Punching, Cutting, Moulding
Technique Cold drawn, Cold rolled, Hot rolled, Extrusion
Tolerance

Outer Diameter: +/- 0.2mm

Thickness: +/- 10% Or As Customer Request

Length: +/- 10mm

Equivalent Grades:

MATERIAL UNS NO OLD BRITISH EN/ EURONORM SWEDISH
SS		 JAPANESE
JIS
BS EN NO NAME
TP316L S31603 316S11 - 1.4404 X2CrNiMo17-12-2 2348 SUS 316L

Chemical Composition:

% C Mn Si P S Cr Mo Ni N
Min - - - - - 16.0 2.00 10.0 -
Max 0.03 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10

Mechanical Properties:

GRADE TENSILE STRESS
(MPA) MIN		 YIELD STR
0.2% PROOF
(MPA) MIN		 ELONGATION
(% IN 50MM) MIN		 HARDNESS
ROCKWELL B (HR B) MAX BRINELL (HB) MAX
TP316L 485 170 40 95 217

Applications:

Off-Shore Oil Drilling Plants

Power Generation Plants

Petrochemicals Industries

Gas Processing Plants

Specialty Chemicals

Pharmaceuticals Industries

Pharmaceutical Equipments

Chemical Equipments

Sea Water Equipments

Heat Exchangers

Condensers

Pulp and Paper Industries

ASTM A213 TP316L TP304 TP304L Stainless Steel Seamless Heat Exchanger Tube
