SS304 SS304L SS316 Precision Stainless Steel Capillary Tube Medical Needle Tube
SS304 SS304L SS316 Precision Stainless Steel Capillary Tube Medical Needle Tube
Specifications
Brand Name :
Shangle
Model Number :
Stainless steel thick walled pipe
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
900TONS/30DAYS
Delivery Time :
5workdays
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

SS304 SS304L SS316 Precision Stainless Steel Capillary Tube Medical Needle Tube

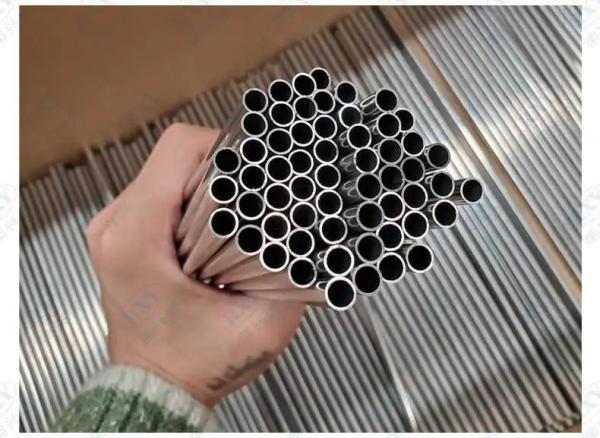

SS304 / SS304L / SS316L Stainless Steel Capillary Tubes are essential components for instrument tubes because of the accuracy and reliability needed to allow for consistent results. Capillary tubes are typically 1/16” OD or smaller. They are used by OEMs that make instrumentation devices such as pressure, level, flow or temperature transmitters. Though some capillary applications are as large 1/8th OD, most are of smaller diameters and integrated with systems and devices. A pressure or level transmitter will have capillary tubing as part of its measuring loop.

Chemical Composition:

Elements SS304L SS304 SS316L SS316
Carbon, max 00.035 00.08 00.035 00.08
Manganese, max 2 2 2 2
Phosphorus, max 00.045 00.045 00.045 00.045
Sulfur, max 00.03 00.03 00.03 00.03
Silicon, max 1 1 1 1
Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
Iron Bal. Bal. Bal. Bal.

Sizes:

Wall Thickness (mm)
O.D. (mm) 0.075 0.08 0.1 0.125 0.15 0.175 0.2 0.225 0.25 0.3 0.35 0.375 0.4 0.45 0.5 0.6 0.75 0.8 0.85 1 1.25 1.5 1.8 2 2.5
0.1
0.2 0.04
0.3 0.15 0.14 0.1
0.4 0.2
0.5 0.3 0.2
0.55
0.6 0.4
0.62 0.32
0.7 0.45 0.4
0.8 0.5 0.45 0.3 0.1
0.9 0.5
1 0.8 0.7 0.6 0.5 0.4 0.3
1.1 0.7
1.2 0.8 0.3
1.3 0.85 0.8
1.4 1
1.5 1.2 1.1 1 0.8 0.7 0.5
1.6 1.2 1 0.6 0.1
1.7 1.3
1.8 1.3 1
1.9 1.4
2 1.8 1.6 1.5 1.4 1
2.2 1.6 0.5
2.4 1.6
2.5 2.1 2 1.9 1.7 1.5
2.6 2
2.8 2
3 2.6 2.5 2 1.5 1
3.2 2.8 2.4
3.25 0.75
3.5 2.75 2.5 2.3
4 3.5 3 2.5 2 1.5 1
4.5 4 3.5
5 4.7 4.6 4.5 4 3.5 3 2 1.4
5.3 4.8
5.5 3.5
6 5.7 5.5 5.2 5 4.5 4.4 4 3 2.4 2

Applications:

Petrochemical Industry

Fluid, Gas and oil Industry

Environmental Protection

Electricity

Hydraulic control lines

Liquid/ Gas Transportation Lines

Medical Devices

Chromatography Applications

Measurement Devices

Remote Thermometer Systems

Small precision Stainless Steel Antenna

Watches Components

Car antenna tube
