Specifications
Brand Name :
TORICH
Model Number :
JIS G3455
Certification :
ISO8001 ISO14001 TS16949
Place of Origin :
Zhejiang/China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000 Ton/Tons per Year
Delivery Time :
20-40days
Packaging Details :
In bundles or in wooden boxes.
Transportation :
Ocean,Air
Usage :
Boiler tube
Alloy Or Not :
Is Alloy
Grade Group :
JIS G3455
End Treatment :
Cutting, Facing, Beveling, Chamfering
Surface Treatment :
Pickling, Polishing, Brushing, etc.
Thickness :
0.8mm To 100mm
Keywords :
Seamless pipe for heat exchanger tube
Size :
Customizable
Delivery Condition :
+N, +NBK,+C,+LC,+BK,+A
Length :
Customizable
Ends :
Plain Ends, Beveled Ends, Threaded Ends
Packing :
In bundles or in wooden boxes
Material :
Steel
Description

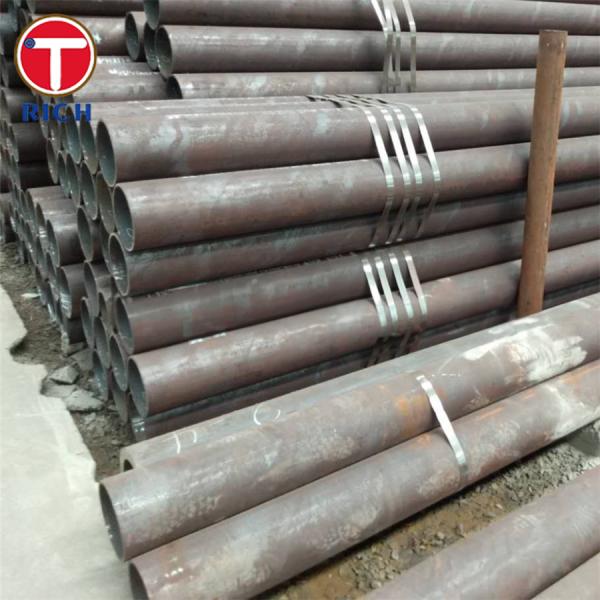

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

JIS G3455 Carbon Steel Seamless Pipe for High-Pressure Service

1. Material Overview

JIS G3455 specifies seamless carbon steel pipes designed for high-pressure service at temperatures up to approximately 350 °C. These pipes are manufactured from killed steel using seamless processes, available in hot-finished or cold-finished forms.

2. Specifications

  • Temperature limit: up to ~350 °C.

  • Outer diameter (OD): from ~10.5 mm (nominal 6A / 1/8B) up to ~660 mm, with many sources citing 15 mm to 600 mm.

  • Wall thickness (WT): commonly from ~1 mm up to 50 mm; some suppliers indicate 2 mm–14 mm.

  • Length: up to about 16 000 mm.

  • Grades: STS 370, STS 410, STS 480, and STS 510.

3. Chemical Composition

Grade C (max) Si Mn P (max) S (max)
STS 370 0.25% 0.10–0.35% 0.30–1.10% 0.035% 0.035%
STS 410 0.30% 0.10–0.35% 0.30–1.40% 0.035% 0.035%
STS 480 0.33% 0.10–0.35% 0.30–1.50% 0.035% 0.035%
STS 510 — (similarly limited) — — —

4. Mechanical Properties

Grade Tensile ≥ (MPa) Yield ≥ (MPa) Elongation ≥ (%)
STS 370 370 216 30
STS 410 410–412 245 25
STS 480 480 275 25
STS 510 481 275 25

5. Key Features

  • High-pressure capabilities with excellent tensile and yield strength.

  • Temperature resistance certified to ~350 °C.

  • Available in versatile manufacturing forms and end finishes.

  • Rigorous quality control through straightness, surface finish, and performance testing (flattening, bending, hydrostatic or nondestructive tests).

6. Applicable Standards

  • JIS G3455 (Japan)—defines complete technical requirements.

  • Equivalent international standards: ASTM A106 / ASME SA106, DIN 17175, EN 10216-2, GB 5310, API 5L.

7. Application Areas

General Sectors: Boilers, pressure vessels, high-pressure piping in petrochemical, chemical, power generation, refinery, mechanical systems, shipbuilding, offshore, and construction.
Specific Uses: Boiler and superheater tubes in power plants, high-pressure steam and fluid pipelines in refineries, hydraulic components, and structural pressure conduits.

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
