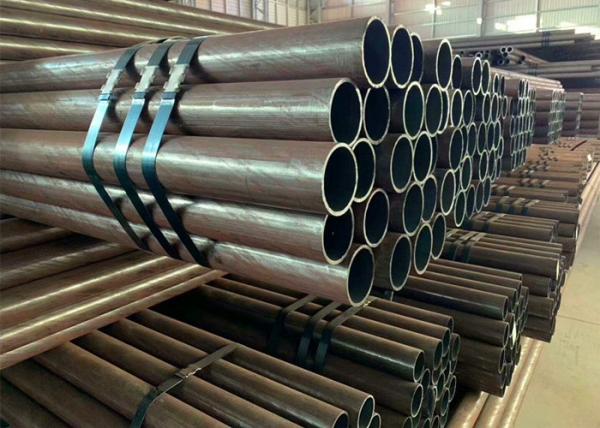

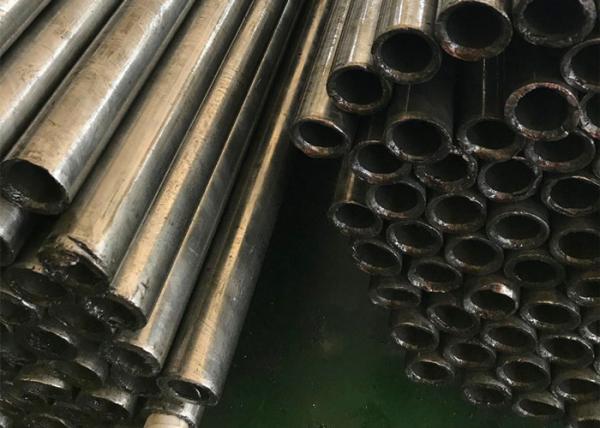

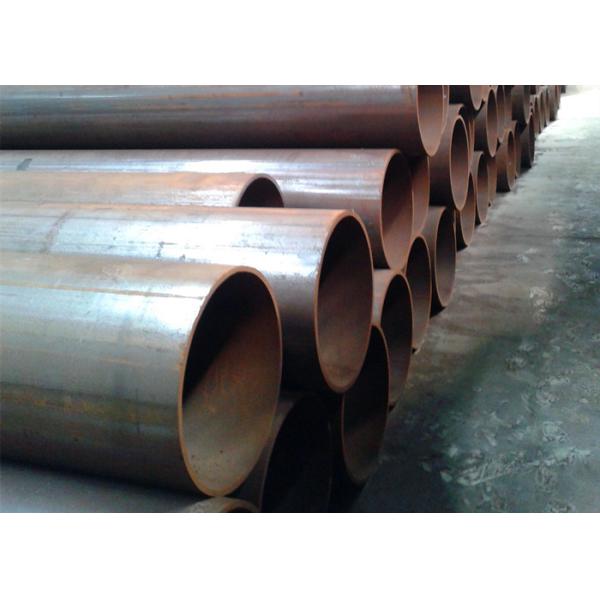

10.3mm ASTM A106B Carbon Steel Boiler Tubes ASTM A106
10.3mm ASTM A106B Carbon Steel Boiler Tubes ASTM A106
10.3mm ASTM A106B Carbon Steel Boiler Tubes ASTM A106
10.3mm ASTM A106B Carbon Steel Boiler Tubes ASTM A106
Specifications
Brand Name :
NEW FORCE
Certification :
MTC
Place of Origin :
CHINA
Payment Terms :
L/C, T/T
Application :
Boiler Tube
Technique :
Hot Rolled
Standard :
ASTM A106
Material :
ASTM A106B
OD :
10.3mm-219.1mm
WT :
1.5mm-30mm
Description

Seamless Carbon Steel ASTM A106B High Pressure Boiler Tube ASTM A106

Boiler Tube is a kind of seamless steel pipe. The manufacturing method is the same
as seamless steel pipes. But there are strict requirements for the steel grades used to manufacture
boiler steel tubes. According to the temperature level, it is divided into two types: low pressure boiler
tube and high pressure boiler tube.
Standard ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629
Material

ASTM A106B, ASTM A53B, API 5L Gr.B,ST52, ST37,ST44

SAE1010/1020/1045,S45C/CK45,SCM435,AISI4130/4140
Outer diameter 10.3mm-219.1mm
Wall thickness 1.5mm-30mm
Length 3m-12m, random or fixed, as the clients' requests
Technology Hot Rolled
Tolerance Control with in the standard, OD:+/-1%, WT:+/-1%

Advantages

 1.Short delivery time
2.Quality assurance
3.Competitive price
4.Free Sample

The mechanical properties of the boiler tube are important indicators to ensure the end-use

performance (mechanical properties) of the steel.

It depends on the chemical composition of the steel and the heat treatment system. In the steel

pipe standard, according to different use requirements, the tensile properties (tensile strength,

yield strength or yield point, elongation), hardness and toughness indicators, as well as the high

and low temperature properties required by users are specified.

C, max. Mn P, max S, max Si, min Cr, max Cu, max Mo, max Ni, max V, max
Grade A 0.25 0.27 – 0.93 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Grade B 0.30 0.29 – 1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Grade C 0.35 0.29 – 1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08

10.3mm ASTM A106B Carbon Steel Boiler Tubes ASTM A106

FAQ:

1. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation as per your request.

2. Can I request to advance the shipment?
A: It depends on whether there is sufficient inventory in our warehouse.

3. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings.

4. What's your terms of payment?
A: T/T, L/C.

5.Do you accept custom design on size?
A: Yes, if the size is reasonable.
