Specifications
Brand Name :
NEW FORCE
Model Number :
ASTM A53
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 tons per month
Packaging Details :
bundle
Material Type :
Carbon Steel
Structure :
Seamless
Material :
A53 Gr. A & A53 Gr. B
Application :
Fluid Tansmission
Length :
Fixed or Random
Process :
Hot Dipped Galvanized Zinc Coated
Description

ASTM A53 Grade (A or B) Seamless Carbon Steel Pipe Zinc Coated Surface

Seamless carbon steel pipe is a capillary tube made of steel ingots or solid tube blanks through perforation, and then hot rolled, cold rolled or cold drawn. Seamless carbon steel pipes have an important position in my country's steel pipe industry.

Chemical Requirements

Chemical Requirements
Grade Composition (%)
Carbon Manganese Phosphorus Sulfur Copper Nickel Chromium Molybdenum Vanadium
max max max max max max max max
Grade A 0.25 0.95 0.05 0.045 0.40 0.40 0.40 0.15 0.08
Grade B 0.30 1.20 0.05 0.045 0.40 0.40 0.40 0.15 0.08

The specifications of seamless steel pipes are expressed in millimeters of outer diameter * wall thickness. Seamless steel tubes are divided into two types: hot-rolled and cold-rolled seamless steel tubes.


Hot-rolled seamless steel pipes are divided into general steel pipes, low and medium pressure boiler steel pipes, high pressure boiler steel pipes, alloy steel pipes, stainless steel pipes, petroleum cracking pipes, geological steel pipes and other steel pipes.
Cold rolled (dial) seamless steel pipes are divided into general steel pipes, low and medium pressure boiler steel pipes, high pressure boiler steel pipes, alloy steel pipes, stainless steel pipes, petroleum cracking pipes, and other steel pipes, as well as carbon thin-walled steel pipes, alloy thin-walled steel pipes, Stainless thin-walled steel pipes, special-shaped steel pipes. The outer diameter of hot-rolled seamless pipe is generally greater than 32mm, and the wall thickness is 2.5-75mm. The diameter of cold-rolled seamless pipe can be up to 6mm and the wall thickness can be up to 0.25mm. The outer diameter of thin-walled pipe can be up to 5mm and the wall thickness is less than 0.25mm. Cold rolling has higher dimensional accuracy than hot rolling.

Mechanical Properties

Grade A Grade B
Tensil Strength (Min) 48Ksi 60Ksi
Yield Strength (Min) 30Ksi 35Ksi

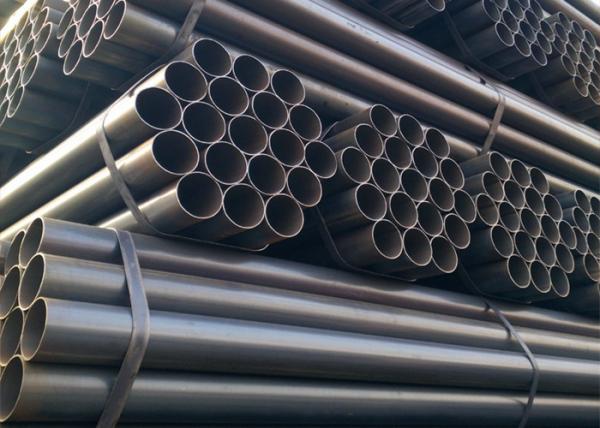

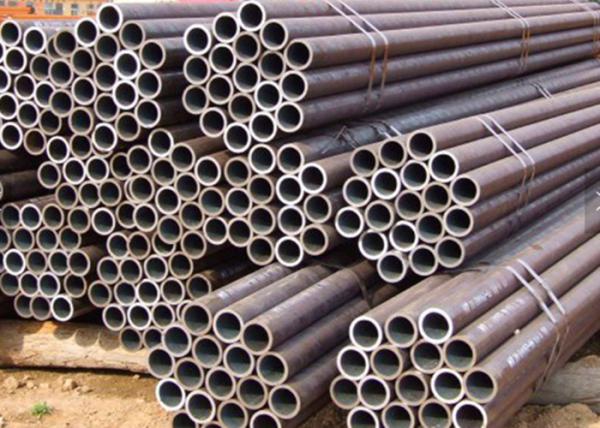

ASTM A53 Grade B Zinc Coated Surface Seamless Carbon Pipe

FAQ:

1. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation as per your request.

2. Can I request to advance the shipment?
A: It depends on whether there is sufficient inventory in our warehouse.

3. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings.

4. What's your terms of payment?
A: T/T, L/C.

5.Do you accept custom design on size?
A: Yes, if the size is reasonable.
