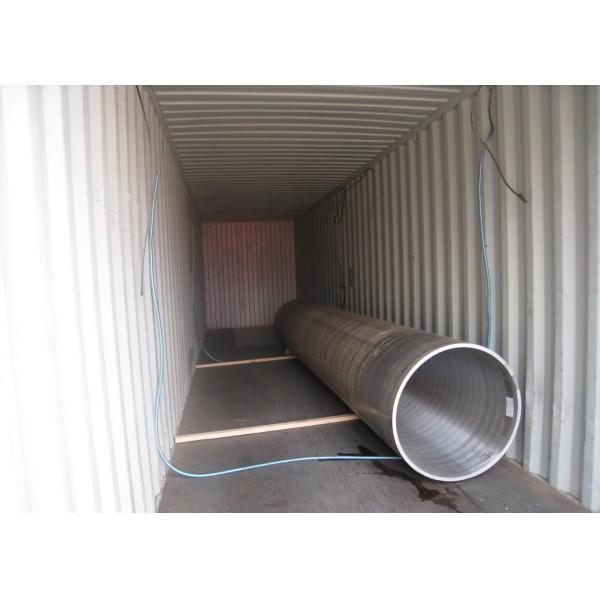

Petrochemical Industry Hot Rolled Steel Pipe , Seamless Carbon Steel Pipe 32'' 813mm OD
Petrochemical Industry Hot Rolled Steel Pipe , Seamless Carbon Steel Pipe 32'' 813mm OD
Petrochemical Industry Hot Rolled Steel Pipe , Seamless Carbon Steel Pipe 32'' 813mm OD
Petrochemical Industry Hot Rolled Steel Pipe , Seamless Carbon Steel Pipe 32'' 813mm OD
Petrochemical Industry Hot Rolled Steel Pipe , Seamless Carbon Steel Pipe 32'' 813mm OD
Petrochemical Industry Hot Rolled Steel Pipe , Seamless Carbon Steel Pipe 32'' 813mm OD
Specifications
Brand Name :
NEW FORCE
Model Number :
32''
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 tons per month
Delivery Time :
5~10 weeks

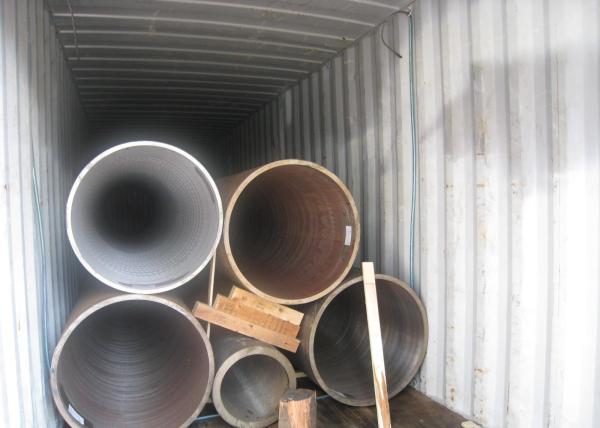

Packaging Details :
bare and loose
Structure :
Seamless
OD :
32'' (813mm)
Max. WT :
140mm
Application :
Petrochemical Industry
Manufacture :
Hot Rolled
Steel :
Alloy Steel Carbon Steel
Description

32'' 813mm OD Hot Rolled Seamless Steel Pipe for High Pressure Boiler

Since 2008, TIPTOP has been supplying high pressuer & high temperature seamless carbon steel boiler pipes, with OD up to 56'' 1422mm and wall thickness up to 140mm. TIPTOP is your trusted partner for large OD & heavy wall thickness seamless pipes. Special design is available according to requirement. Anti-corrosion and high temperature resistant with blank painting

1. Standards

ASME SA106 —— American Boiler and Pressure Vessel norms

ASME SA333 —— American Boiler and Pressure Vessel norms

ASME SA335 —— American Boiler and Pressure Vessel norms

DIN17175 —— German industry standards

EN10216-2 —— European pressure piping standards

2. Application

For the low and medium pressure boiler and steam header pipes; for the high-pressure boiler and steam pipes, and the petrochemical industry pipes.

3. Steel pipes No. of main production:

SA106B, SA106C, SA333 I, SA333 VI, SA335 P5, SA335 P11, SA335 P12, SA335P22, SA335 P91, SA335 P92,

ST45.8/III, 15Mo3, 13CrMo44, 10CrMo910, 15NiCuMoNb5-6-4

4. Dimensional Tolerance

Pipe types

OD (mm)

Tolerance

WT (mm)

Tolerance

Hot- Rolled

Seamless Steel Pipe

457~1422

±0.9％

＞40~70

-7％, +9％

＞70~20

-6％, +8％

5. Available Size

OD
(mm/inch)		 Wall thickness(SCH)
10 20 30 STD 40 60 XS 80 100 120 140 160 XXS 100mm 120mm 140mm
813 (32'') 　 　 Δ 　 Δ Δ 　 Δ Δ Δ Δ Δ Δ Δ Δ Δ

6. Mechanical Properties

Standards Steel pipes No. Tensile strength
(Mpa)		 Bend strength
(Mpa)		 Elongation
(%)		 Impact energy
(J)		 Hardness
ASME SA106 SA106B ≥415 ≥240 ≥22 ≥35 /
SA106C ≥485 ≥275 ≥20 ≥35 /
ASME SA333 SA333 I ≥380 ≥205 ≥28 －45≥18 /
SA335 P11 ASME SA335 ≥415 ≥205 ≥22 ≥35 ≤163HB
SA335 P12 ≥415 ≥220 ≥22 ≥35 ≤163HB
SA335 P22 ≥415 ≥205 ≥22 ≥35 ≤163HB
SA335 P5 ≥415 ≥205 ≥22 ≥35 ≤187HB
SA335 P91 585～760 ≥415 ≥20 ≥35 ≤250HB
SA335 P92 ≥620 ≥440 ≥20 ≥35 250HB
DIN17175 ST45.8/III 410～530 ≥255 ≥21 ≥27(DVM) /
15Mo3 450～600 ≥270 ≥22 ≥34(DVM) /
13CrMo44 440～590 ≥290 ≥22 ≥34(DVM) /
10CrMo910 480～630 ≥280 ≥20 ≥34(DVM) /
EN10216-2 15NiCuMoNb5-6-4 (WB36) 610～780 ≥440 ≥19 ≥40 /

7. Chemical Composition:

Standards Steel pipes No. Chemical composition(%)
C Si Mn P S Cr Mo Cu Ni V Al W Cb N
ASME SA106 SA106B 0.17~0.25 ≥0.1 0.70~1.00 ≤0.030 ≤0.030 　 　 　 　 　 　 　 　 　
SA106C 0.23~0.27 ≥0.1 0.70~1.00 ≤0.030 ≤0.030 　 　 　 　 　 　 　 　 　
ASME SA333 SA333 I 0.09~0.12 / 0.7~1.00 ≤0.020 ≤0.010 　 　 　 　 　 　 　 　 　
SA333 VI 0.09~0.12 ≥0.1 0.9~1.10 ≤0.020 ≤0.010 　 　 　 　 　 　 　 　 　
ASME SA335 SA335 P11 0.05~0.15 0.50~1.0 0.30~0.60 ≤0.030 ≤0.030 1.00~1.50 0.50~1.00 　 　 　 　 　 　 　
SA335 P12 0.05~0.15 ≤0.50 0.30~0.61 ≤0.030 ≤0.030 0.80~1.25 0.44~0.65 　 　 　 　 　 　 　
SA335 P22 0.05~0.15 ≤0.50 0.30~0.60 ≤0.030 ≤0.030 1.90~2.60 0.87~1.13 　 　 　 　 　 　 　
SA335 P5 ≤0.15 ≤0.50 0.30~0.60 ≤0.025 ≤0.025 4.00~6.00 0.45~0.65 　 　 　 　 　 　 　
SA335 P91 0.08~0.12 0.20~0.50 0.30~0.60 ≤0.020 ≤0.010 8.00~9.50 0.85~1.05 　 ≤0.40 0.18~0.25 ≤0.015 　 0.06~0.10 0.03~0.07
SA335 P92 0.07~0.13 ≤0.50 0.30~0.60 ≤0.020 ≤0.010 8.50~9.50 0.30~0.60 　 ≤0.40 0.15~0.25 ≤0.015 1.50~2.00 0.04~0.09 0.03~0.07
DIN 17175 ST45.8/III ≤0.21 0.10~0.35 0.40~1.20 ≤0.040 ≤0.040 ≤0.30 　 　 　 　 　 　 　 　
15Mo3 0.12~0.20 0.10~0.35 0.40~0.80 ≤0.035 ≤0.035 　 0.25~0.35 　 　 　 　 　 　 　
13CrMo44 0.10~0.18 0.10~0.35 0.40~0.70 ≤0.035 ≤0.035 0.70~1.10 0.45~0.65 　 　 　 　 　 　 　
10CrMo910 0.08~0.15 ≤0.50 0.30~0.70 ≤0.025 ≤0.020 2.00~2.50 0.90~1.10 ≤0.30 ≤0.30 　 ≤0.015 　 　 　
EN1021 6-2 15NiCuMoNb5-6-4 (WB36) ≤0.17 0.25~0.50 0.80~1.20 ≤0.025 ≤0.020 ≤0.30 0.25~0.50 0.50~0.80 1.00~1.30 　 ≤0.05 　 0.015~0.045 　
