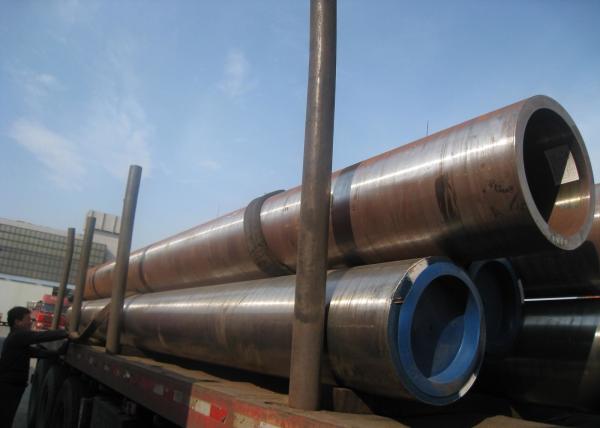

Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness
Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness
Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness
Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness
Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness
Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness
Specifications
Brand Name :
NEW FORCE
Model Number :
40''
Certification :
MTC
Place of Origin :
China
MOQ :
10 tons or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 tons per month
Delivery Time :
5~10 weeks
Packaging Details :
bare and loose
Structure :
Seamless
Material :
Alloy Steel
OD :
40''
Max. WT :
140mm
Application :
Boiler Pipe
Grade :
P92 P91
Description

Grade P92 P91 Hot Rolled Structural Steel Pipe / Tubing Heavy Wall Thickness

TIPTOP is providing ASTM A335 P92 alloy steel seamless pipes, which are mainly used for high-temperature service. P92 pipe a kind of chrome moly pipes listed in ASTM A335, a standard in power generation and petrochemical industry. TIPTOP supply a full range of A335 chrome moly pipes.

Designated as UNS K92460, ASTM A335 P92 is also known as 9Cr-2W alloy steel. Its equivalent includes ASTM A213 T92, ASME SA335 P92, ASME SA213 T92, as well as EN standard X10CrWMoVNb9-2. The Grade P92 are generally furnished as seamless pipes, tubes, or fittings.

1. Standards

ASME SA106 —— American Boiler and Pressure Vessel norms

ASME SA333 —— American Boiler and Pressure Vessel norms

ASME SA335 —— American Boiler and Pressure Vessel norms

DIN17175 —— German industry standards

EN10216-2 —— European pressure piping standards

2. Application

For the low and medium pressure boiler and steam header pipes; for the high-pressure boiler and steam pipes, and the petrochemical industry pipes.

3. Steel pipes No. of main production:

SA106B, SA106C, SA333 I, SA333 VI, SA335 P5, SA335 P11, SA335 P12, SA335P22, SA335 P91, SA335 P92,

ST45.8/III, 15Mo3, 13CrMo44, 10CrMo910, 15NiCuMoNb5-6-4

4. Dimensional Tolerance

Pipe types OD (mm) Tolerance WT (mm) Tolerance

Hot- Rolled

Seamless Steel Pipe

 457~1422 ±0.9％ ＞40~70 -7％, +9％
＞70~20 -6％, +8％

5. Available Size

OD
(mm/inch)		 Wall thickness(SCH)
10 20 30 STD 40 60 XS 80 100 120 140 160 XXS 100mm 120mm 140mm
1016 (40'') 　 　 　 　 　 Δ 　 Δ Δ Δ Δ Δ Δ Δ Δ Δ

6. Mechanical Properties

Standards Steel pipes No. Tensile strength
(Mpa)		 Bend strength
(Mpa)		 Elongation
(%)		 Impact energy
(J)		 Hardness
ASME SA106 SA106B ≥415 ≥240 ≥22 ≥35 /
SA106C ≥485 ≥275 ≥20 ≥35 /
ASME SA333 SA333 I ≥380 ≥205 ≥28 －45≥18 /
SA335 P11 ASME SA335 ≥415 ≥205 ≥22 ≥35 ≤163HB
SA335 P12 ≥415 ≥220 ≥22 ≥35 ≤163HB
SA335 P22 ≥415 ≥205 ≥22 ≥35 ≤163HB
SA335 P5 ≥415 ≥205 ≥22 ≥35 ≤187HB
SA335 P91 585～760 ≥415 ≥20 ≥35 ≤250HB
SA335 P92 ≥620 ≥440 ≥20 ≥35 250HB
DIN17175 ST45.8/III 410～530 ≥255 ≥21 ≥27(DVM) /
15Mo3 450～600 ≥270 ≥22 ≥34(DVM) /
13CrMo44 440～590 ≥290 ≥22 ≥34(DVM) /
10CrMo910 480～630 ≥280 ≥20 ≥34(DVM) /
EN10216-2 15NiCuMoNb5-6-4 (WB36) 610～780 ≥440 ≥19 ≥40 /

7. Chemical Composition:

Standards Steel pipes No. Chemical composition(%)
C Si Mn P S Cr Mo Cu Ni V Al W Cb N
ASME SA106 SA106B 0.17~0.25 ≥0.1 0.70~1.00 ≤0.030 ≤0.030 　 　 　 　 　 　 　 　 　
SA106C 0.23~0.27 ≥0.1 0.70~1.00 ≤0.030 ≤0.030 　 　 　 　 　 　 　 　 　
ASME SA333 SA333 I 0.09~0.12 / 0.7~1.00 ≤0.020 ≤0.010 　 　 　 　 　 　 　 　 　
SA333 VI 0.09~0.12 ≥0.1 0.9~1.10 ≤0.020 ≤0.010 　 　 　 　 　 　 　 　 　
ASME SA335 SA335 P11 0.05~0.15 0.50~1.0 0.30~0.60 ≤0.030 ≤0.030 1.00~1.50 0.50~1.00 　 　 　 　 　 　 　
SA335 P12 0.05~0.15 ≤0.50 0.30~0.61 ≤0.030 ≤0.030 0.80~1.25 0.44~0.65 　 　 　 　 　 　 　
SA335 P22 0.05~0.15 ≤0.50 0.30~0.60 ≤0.030 ≤0.030 1.90~2.60 0.87~1.13 　 　 　 　 　 　 　
SA335 P5 ≤0.15 ≤0.50 0.30~0.60 ≤0.025 ≤0.025 4.00~6.00 0.45~0.65 　 　 　 　 　 　 　
SA335 P91 0.08~0.12 0.20~0.50 0.30~0.60 ≤0.020 ≤0.010 8.00~9.50 0.85~1.05 　 ≤0.40 0.18~0.25 ≤0.015 　 0.06~0.10 0.03~0.07
SA335 P92 0.07~0.13 ≤0.50 0.30~0.60 ≤0.020 ≤0.010 8.50~9.50 0.30~0.60 　 ≤0.40 0.15~0.25 ≤0.015 1.50~2.00 0.04~0.09 0.03~0.07
DIN 17175 ST45.8/III ≤0.21 0.10~0.35 0.40~1.20 ≤0.040 ≤0.040 ≤0.30 　 　 　 　 　 　 　 　
15Mo3 0.12~0.20 0.10~0.35 0.40~0.80 ≤0.035 ≤0.035 　 0.25~0.35 　 　 　 　 　 　 　
13CrMo44 0.10~0.18 0.10~0.35 0.40~0.70 ≤0.035 ≤0.035 0.70~1.10 0.45~0.65 　 　 　 　 　 　 　
10CrMo910 0.08~0.15 ≤0.50 0.30~0.70 ≤0.025 ≤0.020 2.00~2.50 0.90~1.10 ≤0.30 ≤0.30 　 ≤0.015 　 　 　
EN1021 6-2 15NiCuMoNb5-6-4 (WB36) ≤0.17 0.25~0.50 0.80~1.20 ≤0.025 ≤0.020 ≤0.30 0.25~0.50 0.50~0.80 1.00~1.30 　 ≤0.05 　 0.015~0.045 　
