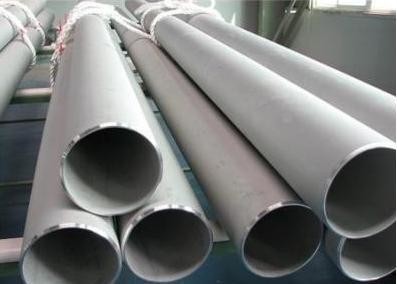

ASTM A312 Stainless Steel Welded Tubes / Pipes TP321H Chemical Fertilizer Applied
ASTM A312 Stainless Steel Welded Tubes / Pipes TP321H Chemical Fertilizer Applied
ASTM A312 Stainless Steel Welded Tubes / Pipes TP321H Chemical Fertilizer Applied
ASTM A312 Stainless Steel Welded Tubes / Pipes TP321H Chemical Fertilizer Applied
Specifications
Brand Name :
NEW FORCE
Model Number :
ASTM A312
Certification :
MTC
Place of Origin :
China
MOQ :
500kg or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 tons per month
Delivery Time :
2~ 10 weeks
Packaging Details :
wooden box
Steel :
Stainless Steel
Structure :
Seamless
Standard :
ASTM A312
Material :
TP321H
Service :
General Corrosive
Manufacture :
Hot Finished or Cold Finished
Description

ASTM A312 Stainless Steel Welded Tubes / Pipes TP321H Chemical Fertilizer Applied

ASTM A312 TP321H stainless steel seamless pipes & tubes advantages:

High strength

Resistant to high mechanical stress

Resistant to high pressure

Resistant to high temperature

Good formability

Reusable

1. Standards:
ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

2. Application:
Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals' Oli & Gas and etc.

3. Materials & Manufacture

Pipe shall be either hot finished or cold finished;

The pipe shall be free of scale and contaminating exogenous iron particles. Pickling, blasting, or surface finishing is not mandatory when pipe is bright annealed.

4. Chemical Requirements

Chemical Composition %
Grade UNS Designation C Mn P S Si Cr Ni Mo Other
TP321H S32109 0.04-0.10 2 0.045 0.03 1 17.0-19.0 9.0-12.0 … N: 0.1
Ti: 4(C+N) min;
0.70 max

5. Tensile Requirements

Tensile Requirements
Grade UNS Designation Tensile Strength, min
ksi (Mpa)		 Yield Strength, min
ksi(Mpa)
TP321H ≤ 3/8'' S32109 75 (515) 30 (205)
TP321H ＞3/8'' 70 (480) 25 (170)

6. Available Size Range

OD

Thickness

mm

inch

mm

SCH

10.3~914

1/8’’~36’’

0.5~70

All

*If the steel grades and size you are looking for are not listed above, please contact us for further information.

ASTM A312 Stainless Steel Welded Tubes / Pipes TP321H Chemical Fertilizer Applied
