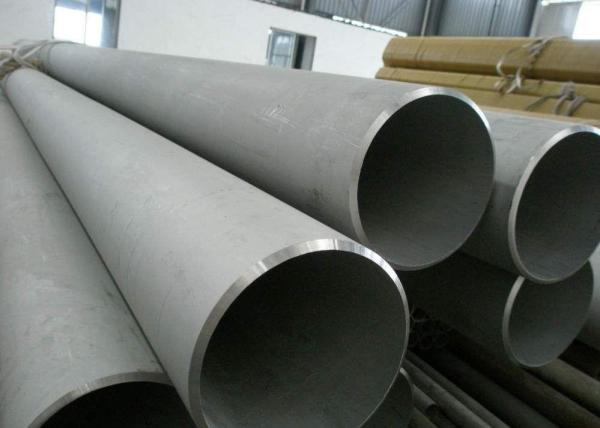

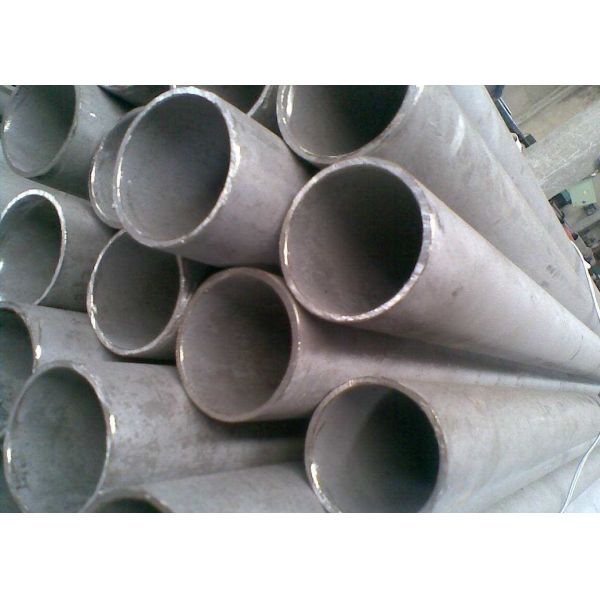

Seamless Stainless Steel Round Pipe ASTM A312 TP347H For High Temperature Service
Seamless Stainless Steel Round Pipe ASTM A312 TP347H For High Temperature Service
Seamless Stainless Steel Round Pipe ASTM A312 TP347H For High Temperature Service
Seamless Stainless Steel Round Pipe ASTM A312 TP347H For High Temperature Service
Specifications
Brand Name :
NEW FORCE
Model Number :
ASTM A312
Certification :
MTC
Place of Origin :
China
MOQ :
500kg or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 tons per month
Delivery Time :
2~ 10 weeks
Packaging Details :
wooden box
Steel :
Austentic
Structure :
Seamless
Standard :
ASTM A312
Material :
TP347H
Service :
High Temperature
Name :
thick wall stainless steel pipe
Description

Seamless Stainless Steel Round Pipe ASTM A312 TP347H For High Temperature Service

A pipe without a seam or weld is known as seamless pipe. 347H seamless pipe can withstand high mechanical stress and high pressure; can work in high temperatures and corrosive environments. Stainless steel seamless pipe is formed by drawing a solid metal billet over a piercing rod to create a hollow tube. Seamless pipe is then processed and finished as per dimension standard ANSI B36.10 and ANSI B36.19 and B36.19M in different wall thickness and sizes ranging from SCH 10 to XXS. 347H seamless pipes have varied applications in the oil and gas, chemical, pharmaceutical, fertilizer, argo-chemical, aerospace, desalination, food and beverage, sugar, distillery, power generation, cement, petroleum refinery, mechanical and structural, food processing , etc.

1. Standards:
ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

2. Application:
Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals' Oli & Gas and etc.

3. Materials & Manufacture

Pipe shall be either hot finished or cold finished;

The pipe shall be free of scale and contaminating exogenous iron particles. Pickling, blasting, or surface finishing is not mandatory when pipe is bright annealed.

4. Chemical Requirements

Chemical Composition %
Grade UNS Designation C Mn P S Si Cr Ni Mo Other
TP347H S34709 0.04-0.10 2 0.045 0.03 1 17.0-19.0 9.0-13.0 … 　

5. Tensile Requirements

Tensile Requirements
Grade UNS Designation Tensile Strength, min
ksi (Mpa)		 Yield Strength, min
ksi(Mpa)
TP347H S34709 75 (515) 30 (205)

6. Available Size Range

OD

Thickness

mm

inch

mm

SCH

10.3~914

1/8’’~36’’

0.5~70

All

*If the steel grades and size you are looking for are not listed above, please contact us for further information.
