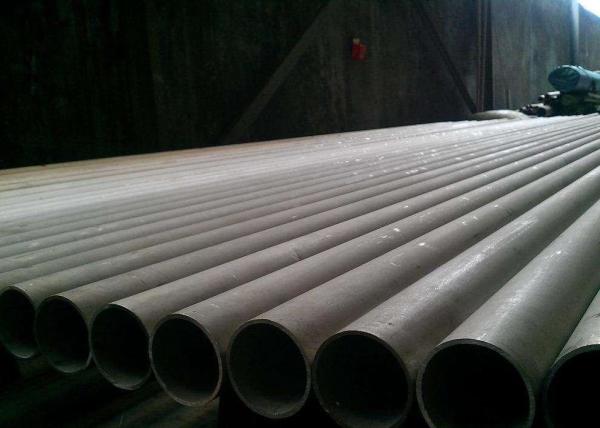

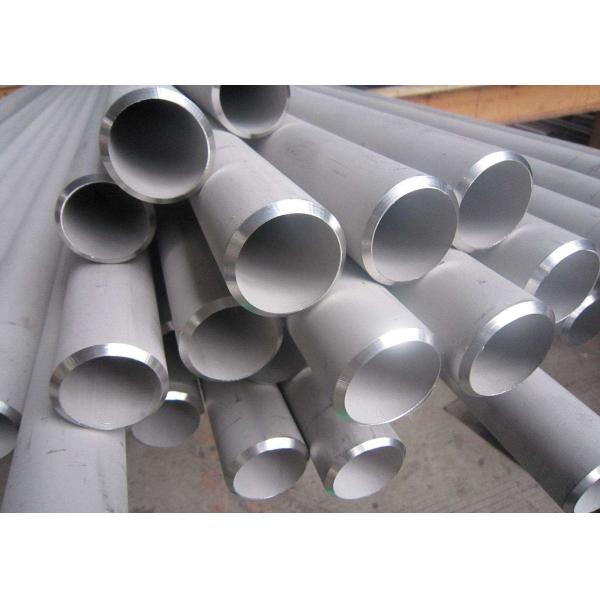

Thick Wall Seamless Stainless Steel Pipe ASTM A312 N08904 General Corrosive Service
Thick Wall Seamless Stainless Steel Pipe ASTM A312 N08904 General Corrosive Service
Thick Wall Seamless Stainless Steel Pipe ASTM A312 N08904 General Corrosive Service
Thick Wall Seamless Stainless Steel Pipe ASTM A312 N08904 General Corrosive Service
Specifications
Brand Name :
NEW FORCE
Model Number :
ASTM A312
Certification :
MTC
Place of Origin :
China
MOQ :
500kg or negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 tons per month
Delivery Time :
2~ 10 weeks
Packaging Details :
wooden box
Steel :
Austentic
Structure :
Seamless
Standard :
ASTM A312
Material :
N08904
Service :
General Corrosive
Application :
Nuclear Power Plant
Description

Thick Wall Seamless Stainless Steel Pipe ASTM A312 N08904 General Corrosive Service

Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. This steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability. Grade 904L contains high amounts of expensive ingredients, such as molybdenum and nickel.

1. Standards:
ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

2. Application:
Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals' Oli & Gas and etc.

3. Materials & Manufacture

Pipe shall be either hot finished or cold finished;

The pipe shall be free of scale and contaminating exogenous iron particles. Pickling, blasting, or surface finishing is not mandatory when pipe is bright annealed.

4. Chemical Requirements

Chemical Composition %
Grade UNS Designation C Mn P S Si Cr Ni Mo Other
… N08904 0.02 2 0.04 0.03 1 19.0-23.0 23.0-28.0 4.0-5.0 N: 0.1
Cu: 1.00-2.00

5. Tensile Requirements

Tensile Requirements
Grade UNS Designation Tensile Strength, min
ksi (Mpa)		 Yield Strength, min
ksi(Mpa)
… N08904 71 (490) 31 (215)

6. Available Size Range

OD

Thickness

mm

inch

mm

SCH

10.3~914

1/8’’~36’’

0.5~70

All

*If the steel grades and size you are looking for are not listed above, please contact us for further information.

Thick Wall Seamless Stainless Steel Pipe ASTM A312 N08904 General Corrosive Service
