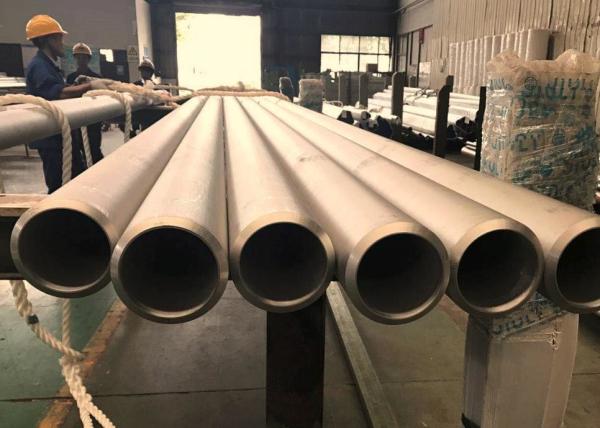

2/3/4 Inch Large Diameter Stainless Steel Pipe ASTM A789 S31500 Fixed / Random Length
2/3/4 Inch Large Diameter Stainless Steel Pipe ASTM A789 S31500 Fixed / Random Length
2/3/4 Inch Large Diameter Stainless Steel Pipe ASTM A789 S31500 Fixed / Random Length
2/3/4 Inch Large Diameter Stainless Steel Pipe ASTM A789 S31500 Fixed / Random Length
Specifications
Brand Name :
NEW FORCE
Model Number :
ASTM A789
Certification :
MTC
Place of Origin :
China
MOQ :
500kg or negotiable
Payment Terms :
L/C, T/T
Delivery Time :
50000 tons per month
Packaging Details :
wooden box
Steel :
Ferritic and Austentic Steel
Standard :
ASTM A789
Structure :
Seamless
Service :
General Service
Grade :
S31500
Length :
Fixed or Random
Description

Seamless Stainless Steel ASTM A789 S31500 Pipe for General Service

UNS S31500 duplex stainless steel has the ferrite to austenite size bipolar organization, good resistance to stress corrosion cracking, pitting corrosion resistance and 00 cr17ni13mo2 quite, has the high strength suitable for the environment of chlorine ion, used in fertilizer, paper making, petroleum, chemical industry and other industrial heat exchanger, condenser, etc.

1. Standards:
ASTM A789 Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

2. Application:
Chemical processing, transport and storage,

Oil and Gas exploration and processing equipment,

Marine and other high chloride environments,

Pulp and paper digesters, liquor tanks and paper machines.

3. Ordering Information

Quantity (feet, meters, or number of lengths),

Name of product (seamless or welded tubes)

Grade (S31500)

Size (outside diameter and average wall thickness, unless minimum wall thickness is specified),

Length (specific or random)

Optional requirements (for product analysis; for hydrostatic or nondestructive electric test),

Test report required

Special requirements

4. Chemical Requirements

Chemical Composition
UNS Designation C Mn P S Si Ni Cr Mo N Cu Others
S31500 0.03 1.20-2.00 0.03 0.03 1.40-2.00 4.3-5.2 18.0-19.0 2.5-3.0 0.05-0.1 … …

5. Tensile and Hardness Requirements

Tensile and Hardness Requirements

UNS Designation

Tensile Strength, min, ksi (Mpa)

Yield Strength, min, ksi (Mpa)

Elongation in 2 in. or 50mm, min, %

Hardness, max.

HBW

HRC

S31500

92 (630)

64 (440)

30

290

30

6. Available Size Range

OD

Thickness

mm

inch

mm

SCH

10.3~914

1/8’’~36’’

0.5~70

All

*If the steel grades and size you are looking for are not listed above, please contact us for further information.
