Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
Specifications
Brand Name :
FRANK STEEL
Model Number :
DIN CuZn40
Certification :
DNV / LR / BV/ SGS
Place of Origin :
P.R.CHINA
MOQ :
1 Tons or negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per 30 days
Delivery Time :
about 30 work days
Packaging Details :
plywooden boxes for exporting
Impurity content :
≤0.15%
Softening temperature :
900～1050℃
Grade :
DIN CuZn40
Length :
Negotiation ≤12M
3rd Party :
Supported BV SGS
Package :
Plywood wooden box for export
Description

DIN CuZn40 Common Brass Seamless Tubes For Cold or Hot Water Supply Pipe In Washroom

1. Description

DIN CuZn40 brass has good mechanical properties. It has good malleadbility and machinability in hot or cold environment. It is easy to weld and weld fiber. And it's also very resistant to corrosion. In addition, this grade of brass is cheap and widely used and installed as a common brass variety.

DIN CuZn40 brass seamless pipe is usually suitable for hot and cold water supply system of toilet and shower. We can supply straight pipe and U-bend according to customer's requirement.

2. Chemical composition

Cu :60.5～63.5
Zn:Remain
Pb:≤0.08
P:≤0．01
Fe:≤0．15
Sb :≤0．005
Bi:≤0.002
Impurity:≤0.5


3. Mechanical properties

Tensile strength: (σ B / MPA): ≥ 335

Elongation: (δ 10 /%) ≥ 20

Elongation: (δ 5 /%) ≥ 24

4. Standard comparison

Category China US UK Germany Japan
GB ASTM CDA BS DIN Digital system JIS
Common Brass H60 C28000 280 Cz109 CuZn40 　 C2801


5. OD table and tolerance

T mm
OD mm		 0.15--0.2 0.2--0.3 0.3--0.5 0.5--0.8 0.8--1.2 1.2--1.8 1.8--2.5 2.5--3 3--4
2.5--5 √ √ √ 　 　 　 　 　 　
6--10 √ √ √ √ √ 　 　 　 　
11--15 　 √ √ √ √ √ 　 　 　
16--20 　 　 √ √ √ √ 　 　 　
20--25 　 　 √ √ √ √ √ 　 　
25--35 　 　 √ √ √ √ √ 　 　
35--45 　 　 √ √ √ √ √ √ 　
45--55 　 　 　 √ √ √ √ √ √

outside diameter Average tolerance
General (±mm) high(±mm)
3--15 0.09 0.05
15--25 0.1 0.06
25--50 0.15 0.08


6. Wall Thicknese and tolerance

wall thickness Average tolerance
General(mm) high(mm)
0.2--0.5 ±0.02--0.05 ±0.01--0.03
0.5--0.8 ±0.05--0.08 ±0.02--0.05
0.8--1.5 ±0.08--0.15 ±0.05--0.12
1.5--2.5 ±0.15--0.25 ±0.12--0.2
2.5--4 ±0.25--4 ±0.2--0.3

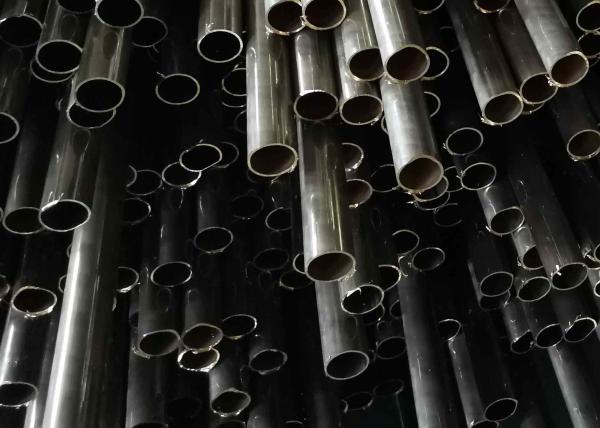

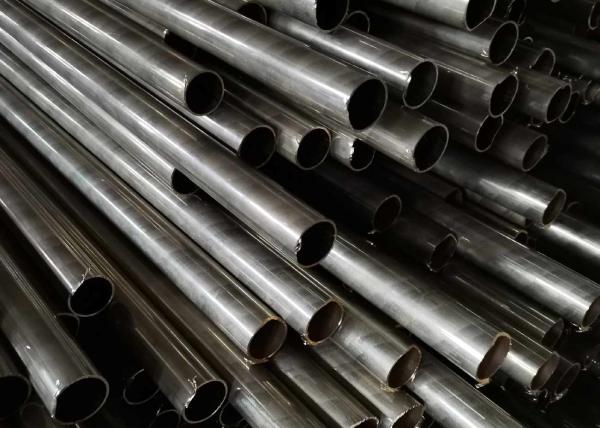

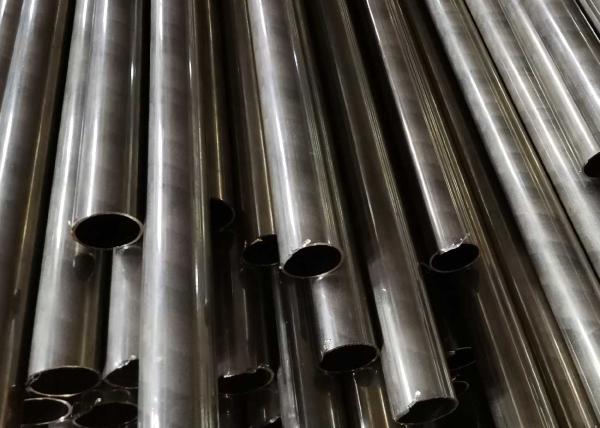

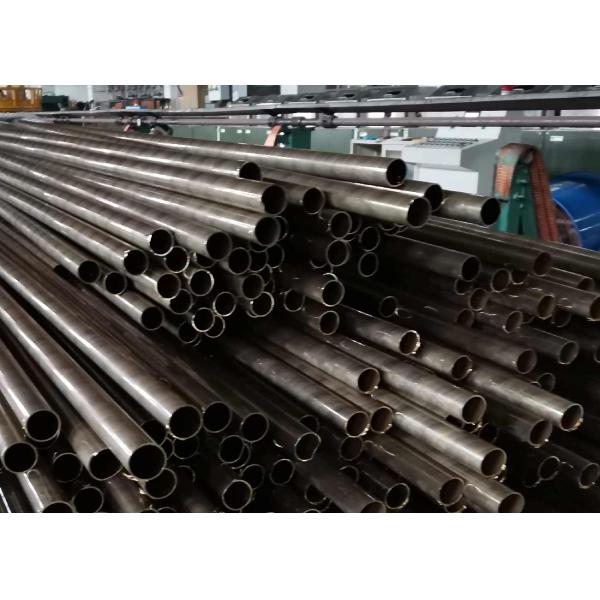

7. Details picture
Cold Hot Water Supply DIN CuZn40 Seamless Brass Tubes
